Dell Vostro 360 - Hard Drive Assembly Procedures; Removing The Hard Drive Assembly

9
Removing The Hard Drive Assembly
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear I/O cover .
4. Remove the rear stand .

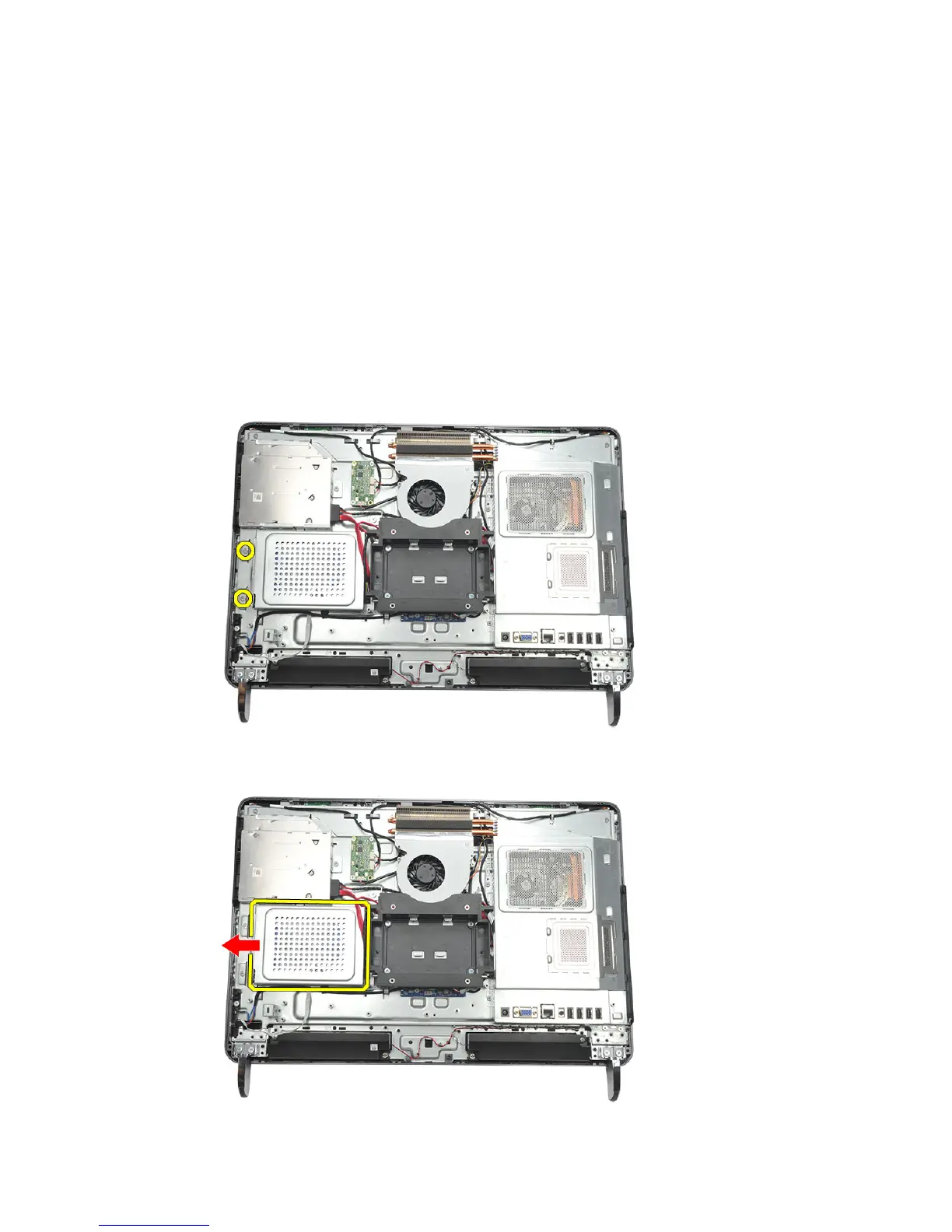

5. Remove the screw that secures the hard-drive bracket to the chassis.
6. Slide the hard-drive bracket towards the outside of the computer to release the tabs
from the chassis.
