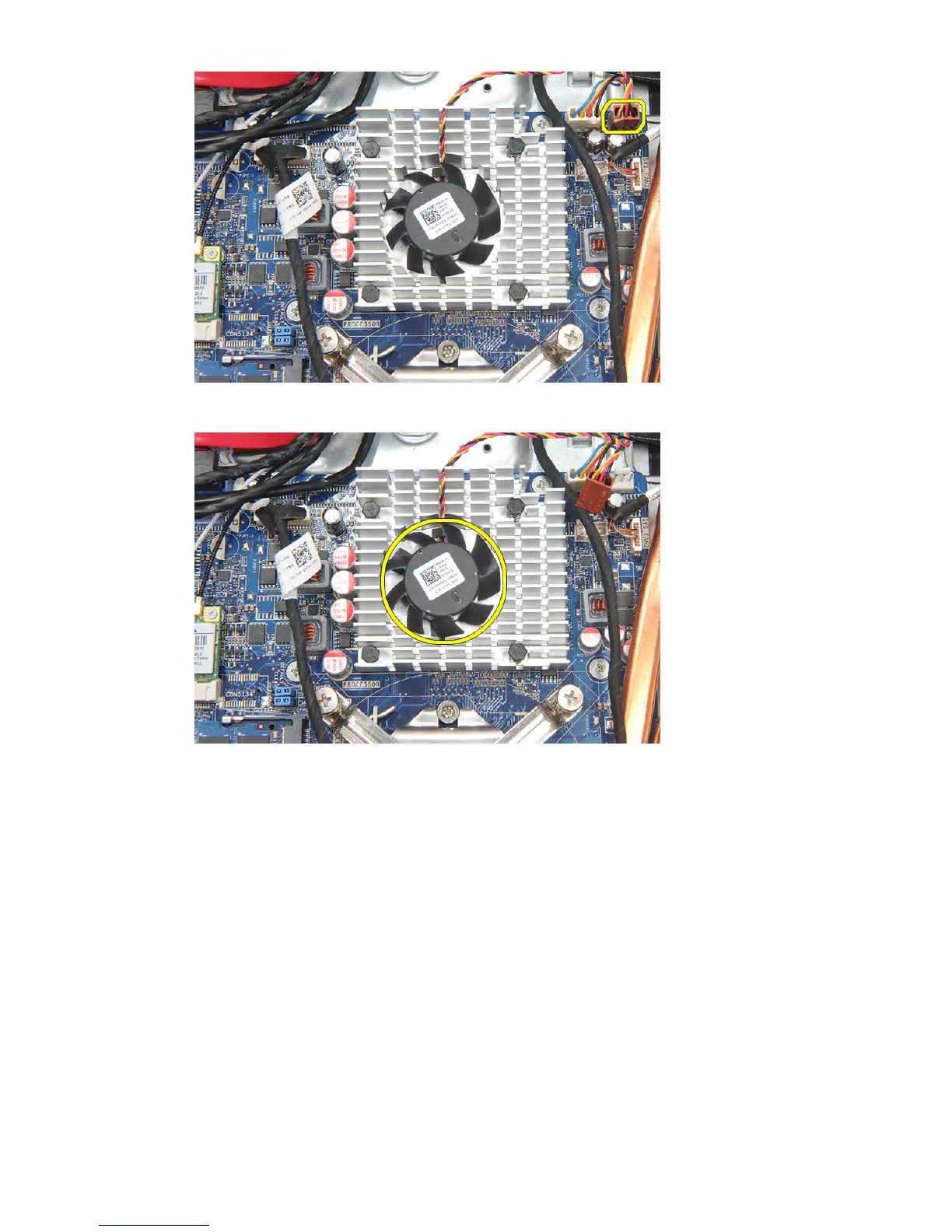

8. Lift and remove the heatsink fan from the computer.
Installing The Heatsink Fan
1. Install the heatsink fan on the chassis.
2. Tighten the screws to secure the heatsink fan to the chassis.
3. Connect the heatsink fan connector to its socket on the system board.
4. Install the
system board shield
.
5. Install the
rear I/O cover
.
6. Install the
rear stand
.
7. Install the
rear cover
.
8. Follow the procedures in
After Working Inside Your Computer
.
50
