Dell Vostro 360 - Processor Procedures; Removing The Processor

22
Removing The Processor
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .
5. Remove the rear stand cover .
6. Remove the system board shield .
7. Remove the CPU fan .
8. Remove the CPU heatsink .

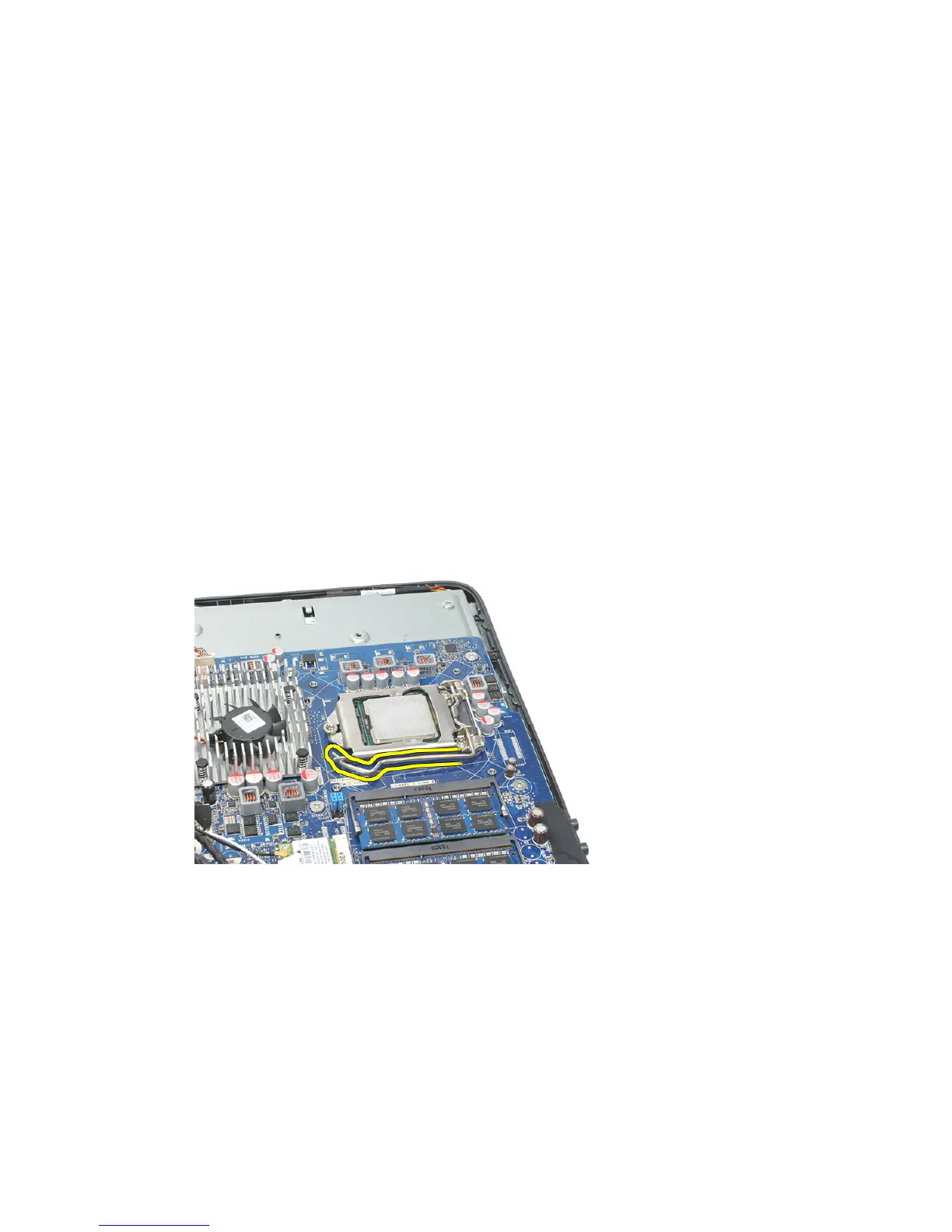

9. Press the release lever down and then move it outward to release it from the
retention hook that secures it.
10. Lift the processor cover and remove the processor from the socket. Place it in an
antistatic packaging.
59
