Dell Vostro 360 - Antenna Procedures; Removing The Antenna

30
Removing The Antenna
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .
5. Remove the rear stand cover .
6. Remove the middle frame .
7. Remove the system board shield .
8. Remove the hard drive cage and the hard drive .
9. Remove the optical drive .
10. Remove the CPU fan .
11. Remove the CPU heatsink .
12. Remove the system board .
13. Remove the speakers .
14. Remove the speaker cover .
15. Remove the tempan .
16. Remove the cables from the chassis clips.

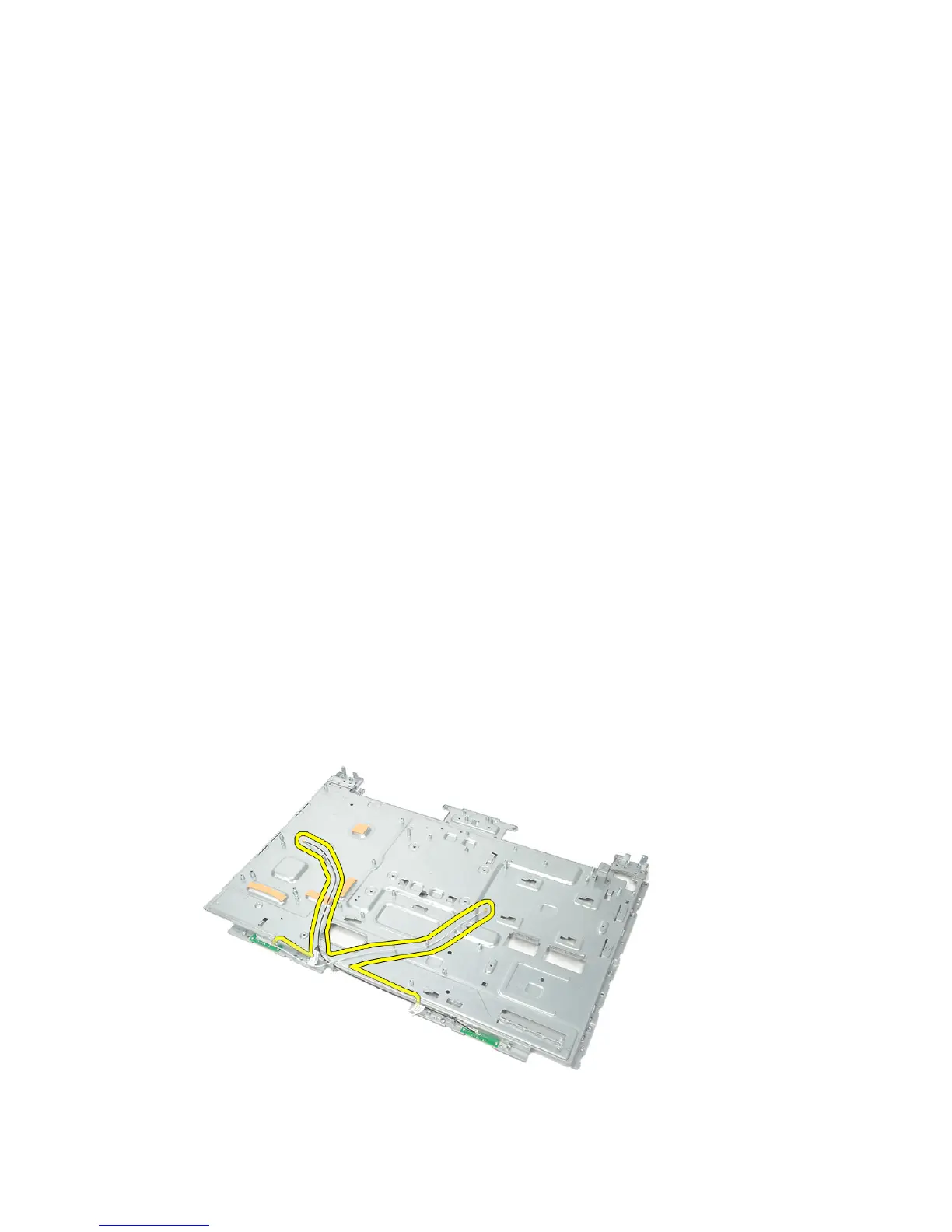

17. Remove the aluminium conducting tape that secure the antennae.
81
