Dell Vostro 360 - Converter Board Procedures; Removing The Converter Board

19
Removing The Converter Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .
5. Remove the rear stand cover .
6. Remove the system board shield .

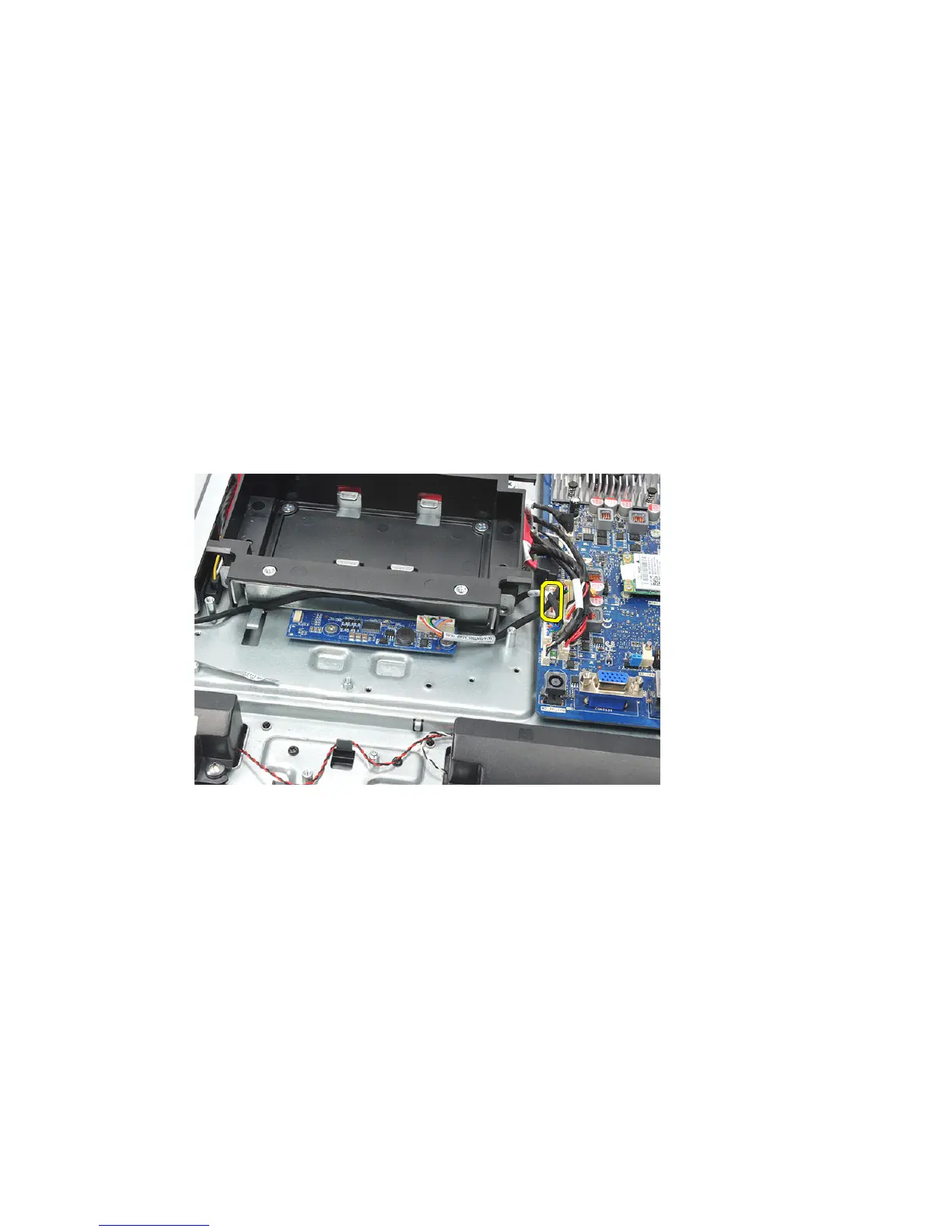

7. Disconnect the power cable from the system board.
8. Remove the white cable from the connector on the converter board.
51
