Removing The Tempan
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear stand cover .
5. Remove the rear I/O cover .
6. Remove the middle frame .
7. Remove the hard drive cage and the hard drive .
8. Remove the optical drive .
9. Remove the system board shield .
10. Remove the CPU fan .
11. Remove the CPU heatsink .
12. Remove the system board .
13. Remove the speakers .
14. Remove the converter board .
15. Remove the power switch assembly .
16. Remove the touch control board .

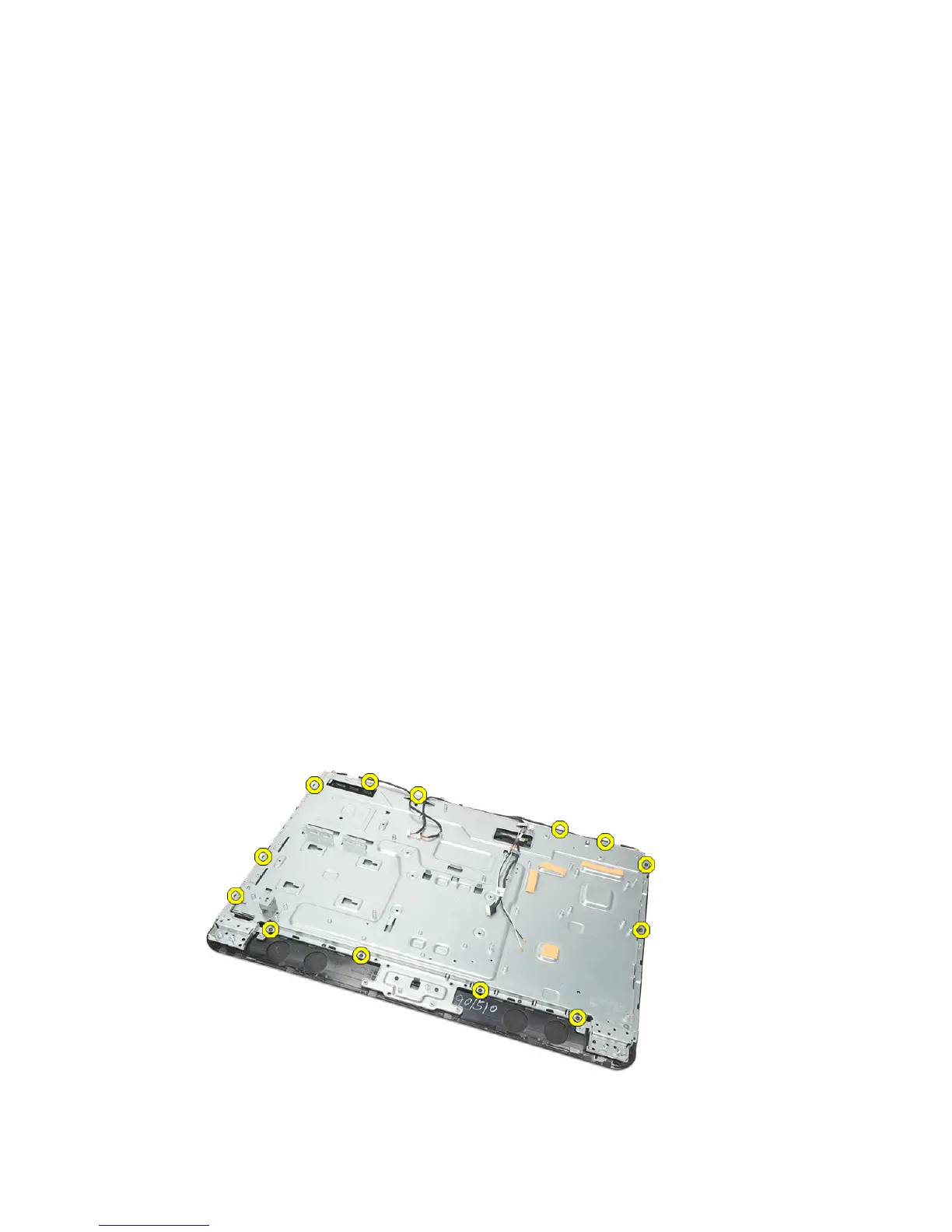

17. Remove the black screws that secure the tempan to the chassis.
18. Remove the silver screws that secure the tempan to the chassis.
