Dell Vostro 360 - Speaker Procedures; Removing The Speakers

13

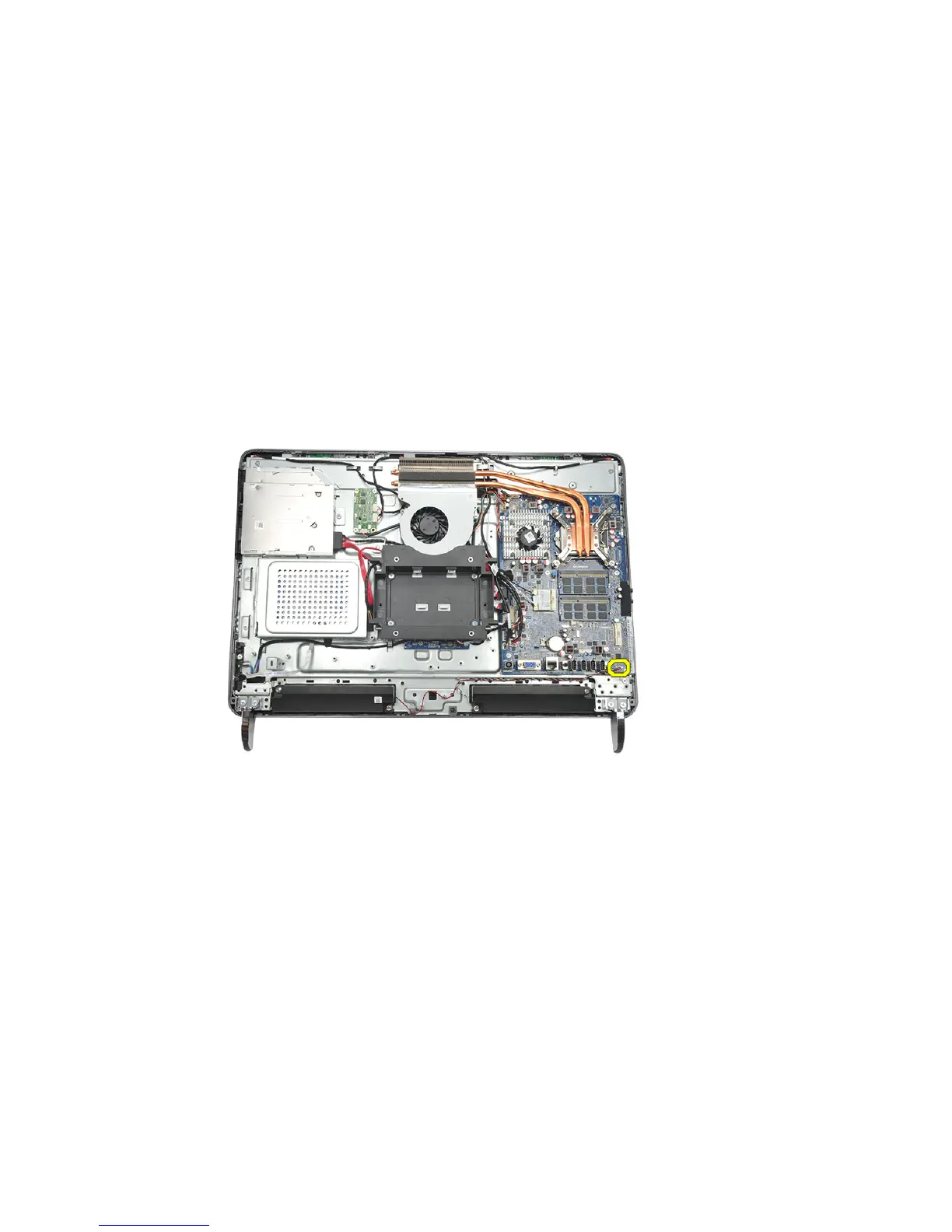

Removing The Speakers
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .
5. Remove the system board shield .
6. Disconnect the speaker cable from the system board.
7. Remove the screws that secure the right and left speakers.
39
