Dell Vostro 360 - Power-Switch Assembly Procedures; Removing The Power-Switch Assembly

16
Removing The Power-Switch
Assembly
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .

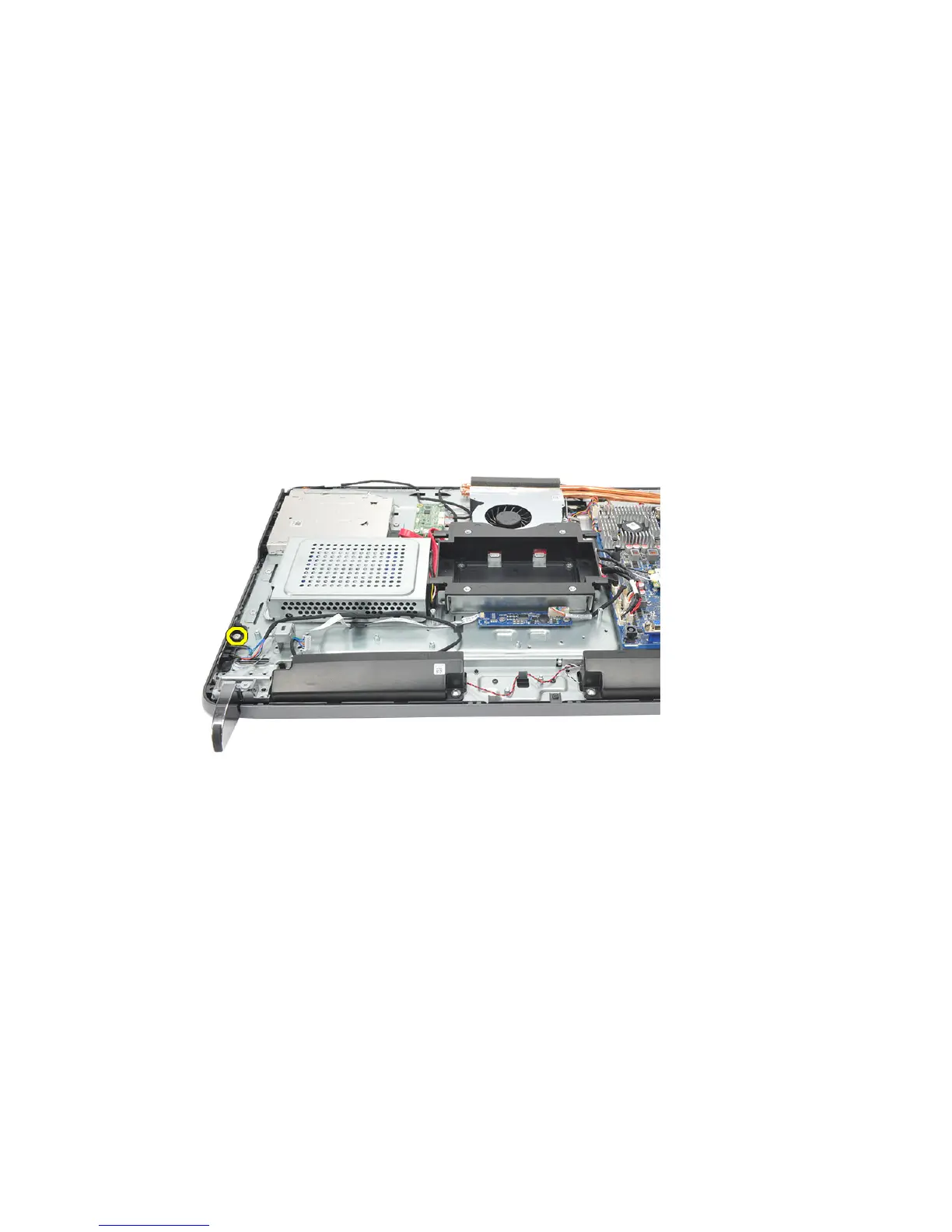

5. Remove the screw that secures the power-switch assembly to the chassis.
6. Disconnect the power-switch assembly from the system board.
45
