Dell Vostro 360 - WLAN Card Procedures; Removing The WLAN Card

12

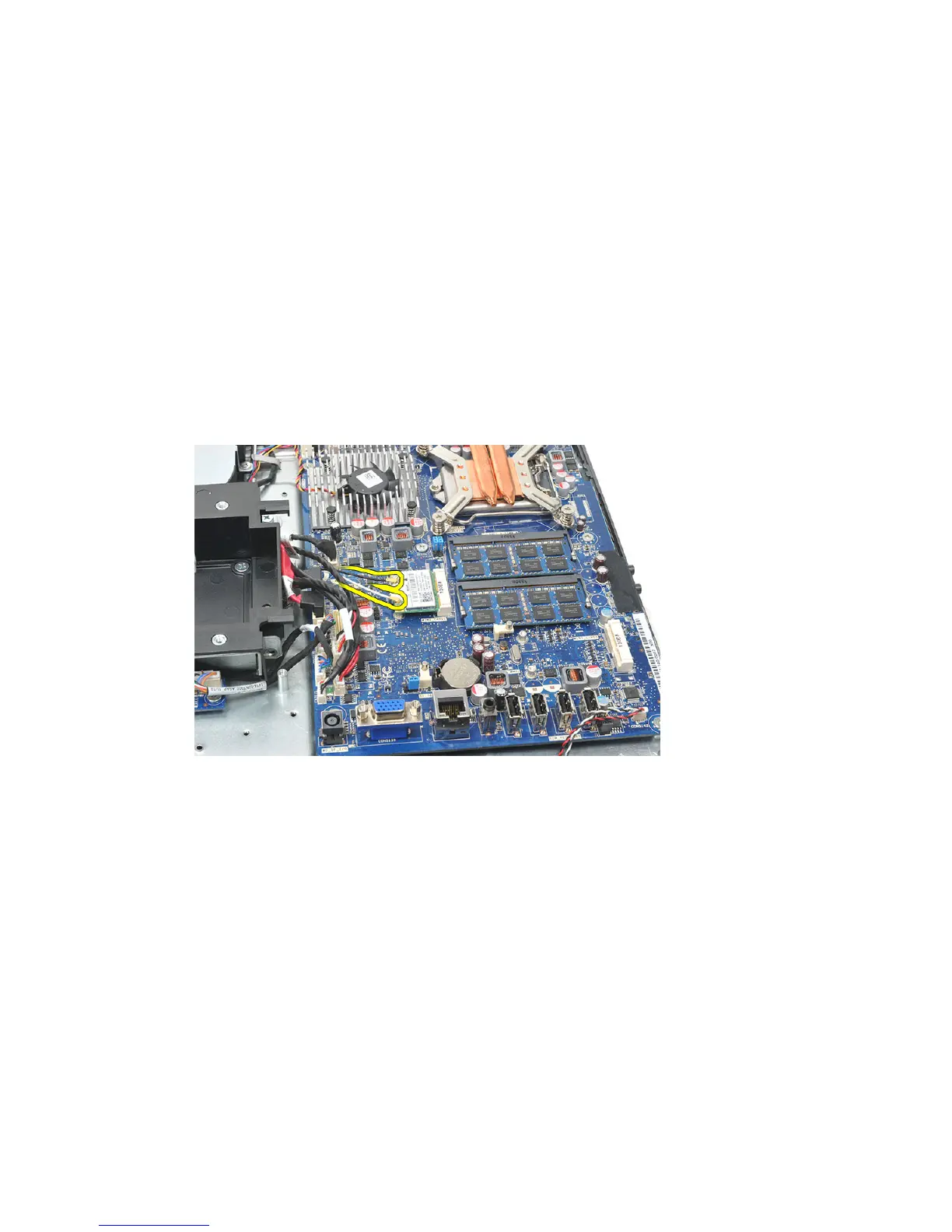

Removing The WLAN Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .
5. Remove the system board shield .
6. Disconnect the antenna cables from the WLAN card.
7. Remove the screw that secures the WLAN card and remove it from the computer.
