Dell Vostro 360 - Input;Output Panel Procedures; Removing The Input;Output Panel; Installing The Input;Output Panel

10
Removing The Input/Output Panel
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .
5. Remove the system board shield .

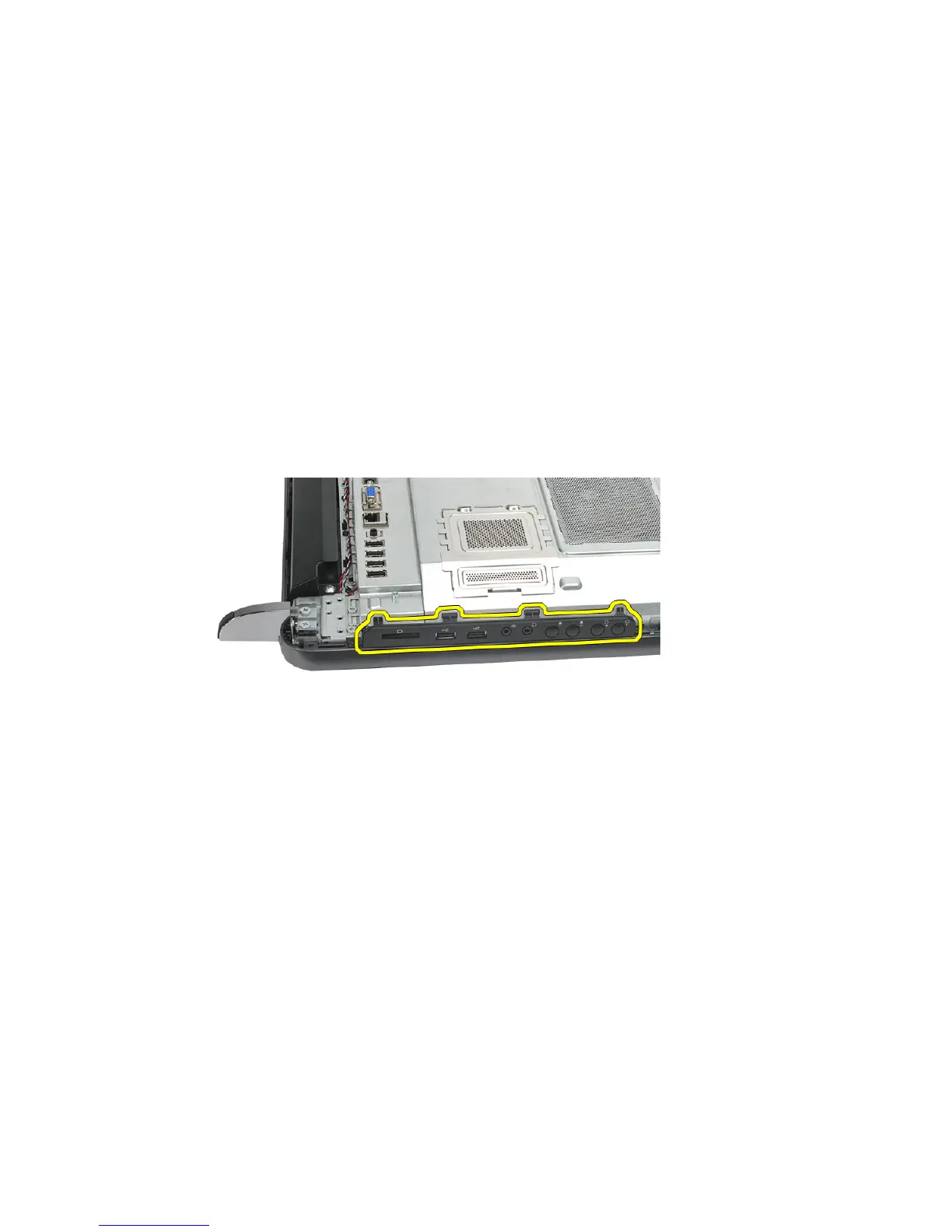

6. Remove the I/O panel away from the chassis.
Installing The Input/Output Panel
1. Place the system board shield on the chassis.
2. Tighten the screws to secure the system board shield.
3. Install the I/O panel securely on the system board shield.
4. Install the rear I/O cover .
5. Install the rear stand .
6. Install the rear cover .
7. Follow the procedures in After Working Inside Your Computer .
