Installing The CPU Heatsink

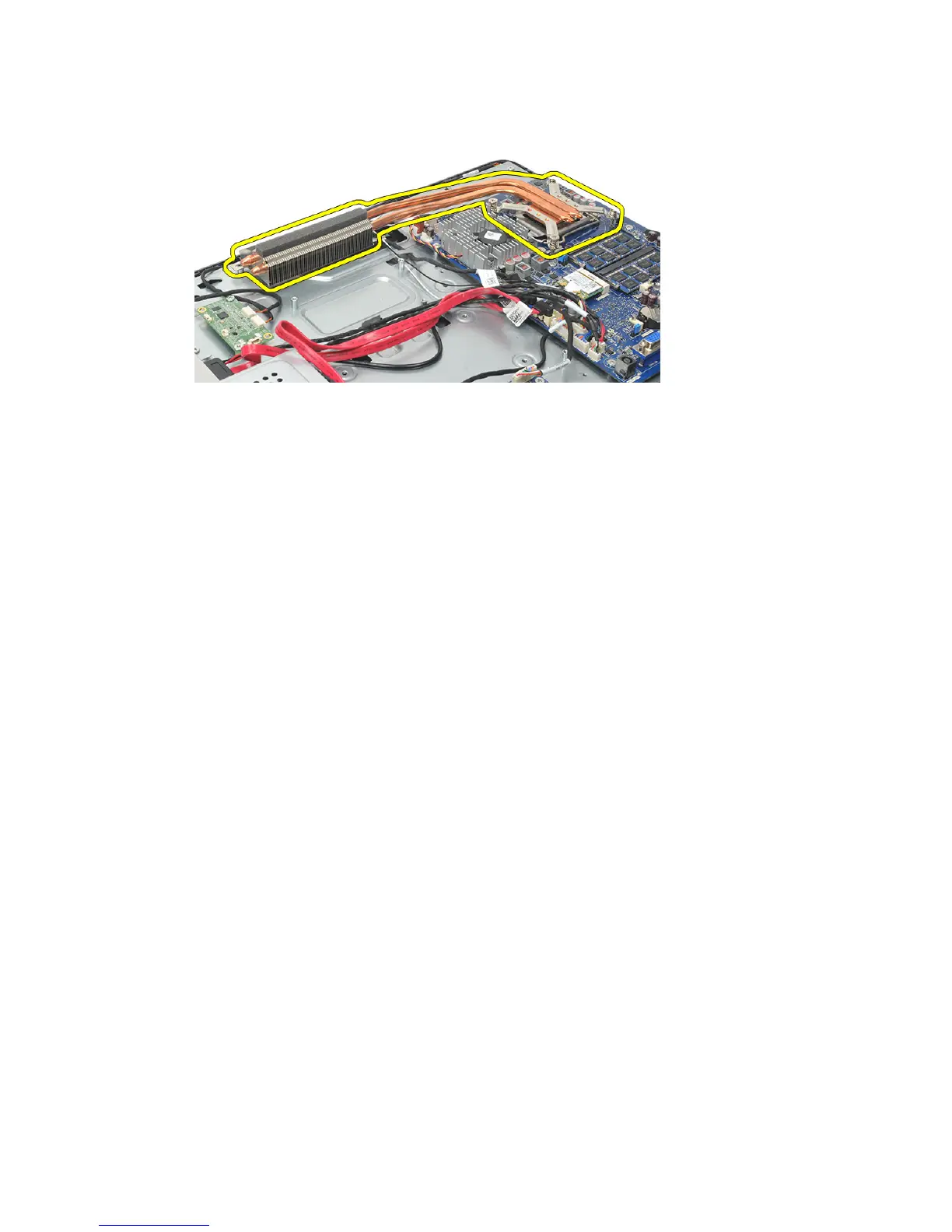

1. Place the CPU heatsink into the chassis.
2. Tighten the screws to secure the CPU heatsink to the system board, and also
tighten the screw that secures the heatsink to the chassis.
3. Install the
CPU fan
.
4. Install the
system board shield
.
5. Install the
rear stand cover
.
6. Install the
rear I/O cover
.
7. Install the
rear stand
.
8. Install the
rear cover
.
9. Follow the procedures in
After Working Inside Your Computer
.
58
