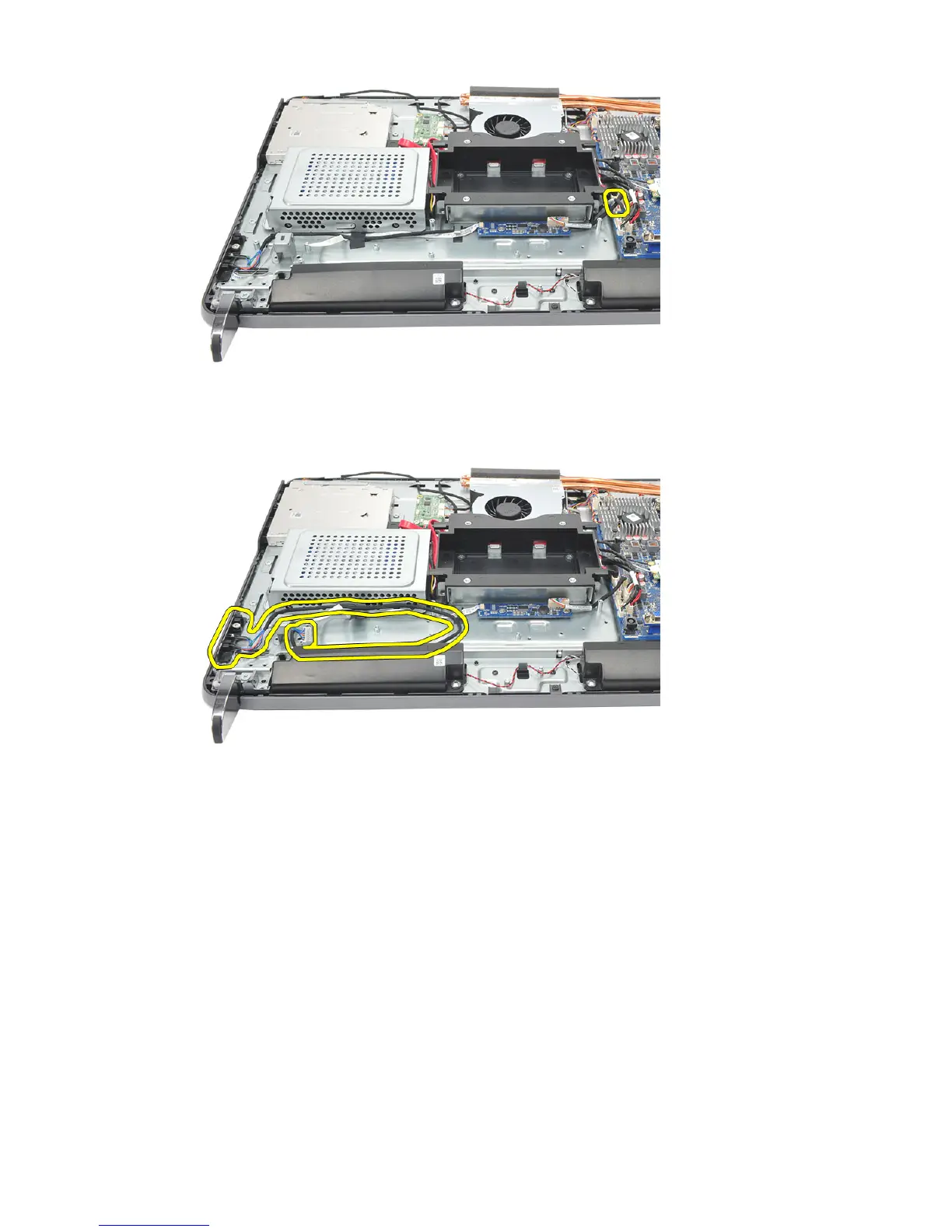

7. Disengage the cable from the chassis clips and remove the power-switch
assembly.
Installing The Power-Switch Assembly
1. Place the power-switch assembly on the chassis.
2. Connect the power-switch assembly cable to the system board and thread the
cables into the chassis clips.
3. Tighten the screw that secures the power-switch assembly to the chassis.
4. Install the
rear I/O cover
.
5. Install the
rear stand
.
6. Install the
rear cover
.
7. Follow the procedures in
After Working Inside Your Computer
.
46
