Dell Vostro 360 - Installing The WLAN Card

Installing The WLAN Card

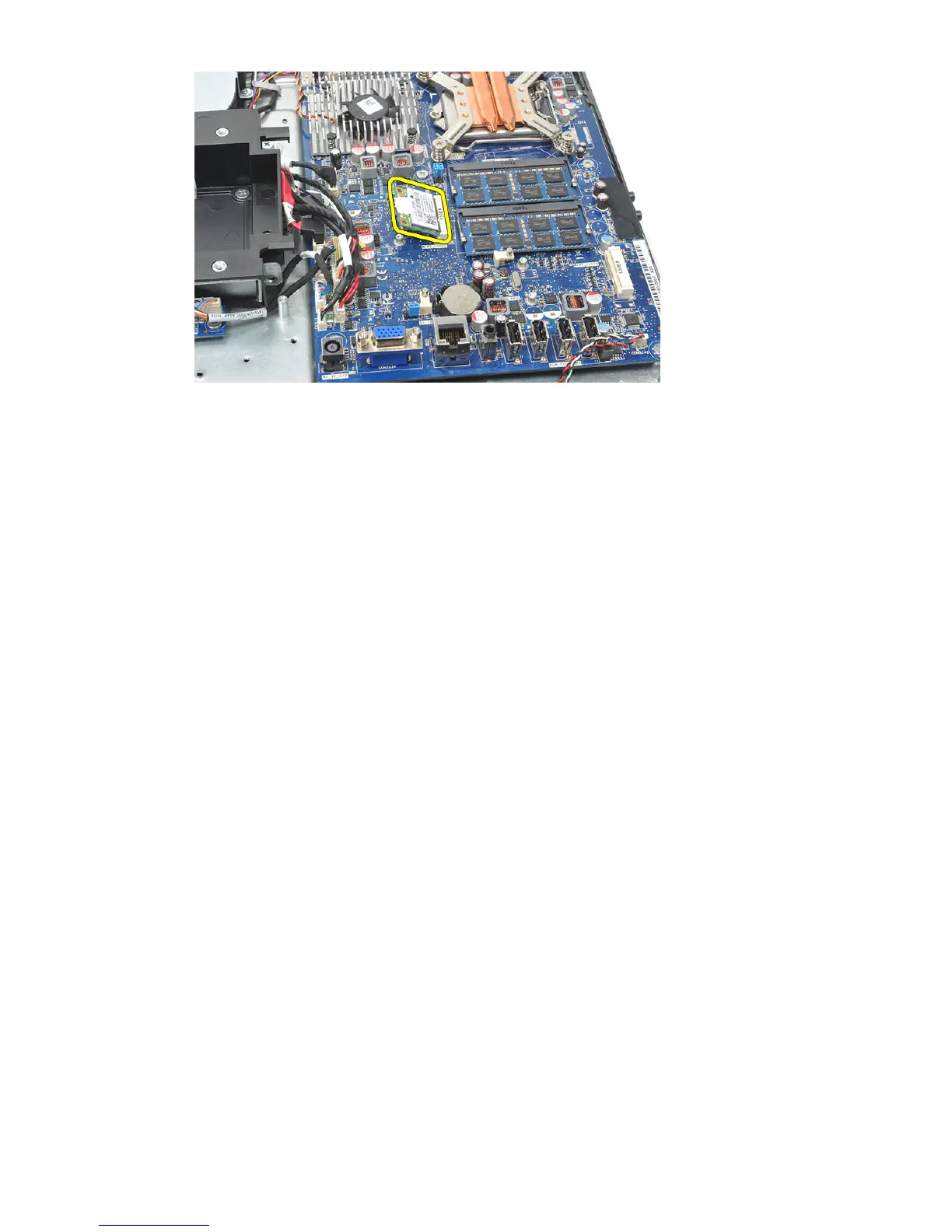

1. Slide the WLAN card into its slot.
2. Tighten the screws to secure the WLAN card in place.
3. Connect the antenna cables according to the color code on the WLAN card.
4. Install the system board shield .
5. Install the rear I/O cover .
6. Install the rear stand .
7. Install the rear cover .
8. Follow the procedures in After Working Inside Your Computer .
