Dell Vostro 360 - Front Bezel Procedures; Removing The Front Bezel

26
Removing The Front Bezel
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .
5. Remove the rear stand cover .
6. Remove the middle frame .
7. Remove the system board shield .
8. Remove the hard drive cage and the hard drive .
9. Remove the optical drive .
10. Remove the CPU fan .
11. Remove the CPU heatsink .
12. Remove the system board .
13. Remove the tempan .
14. Remove the speakers .
15. Remove the speaker cover .

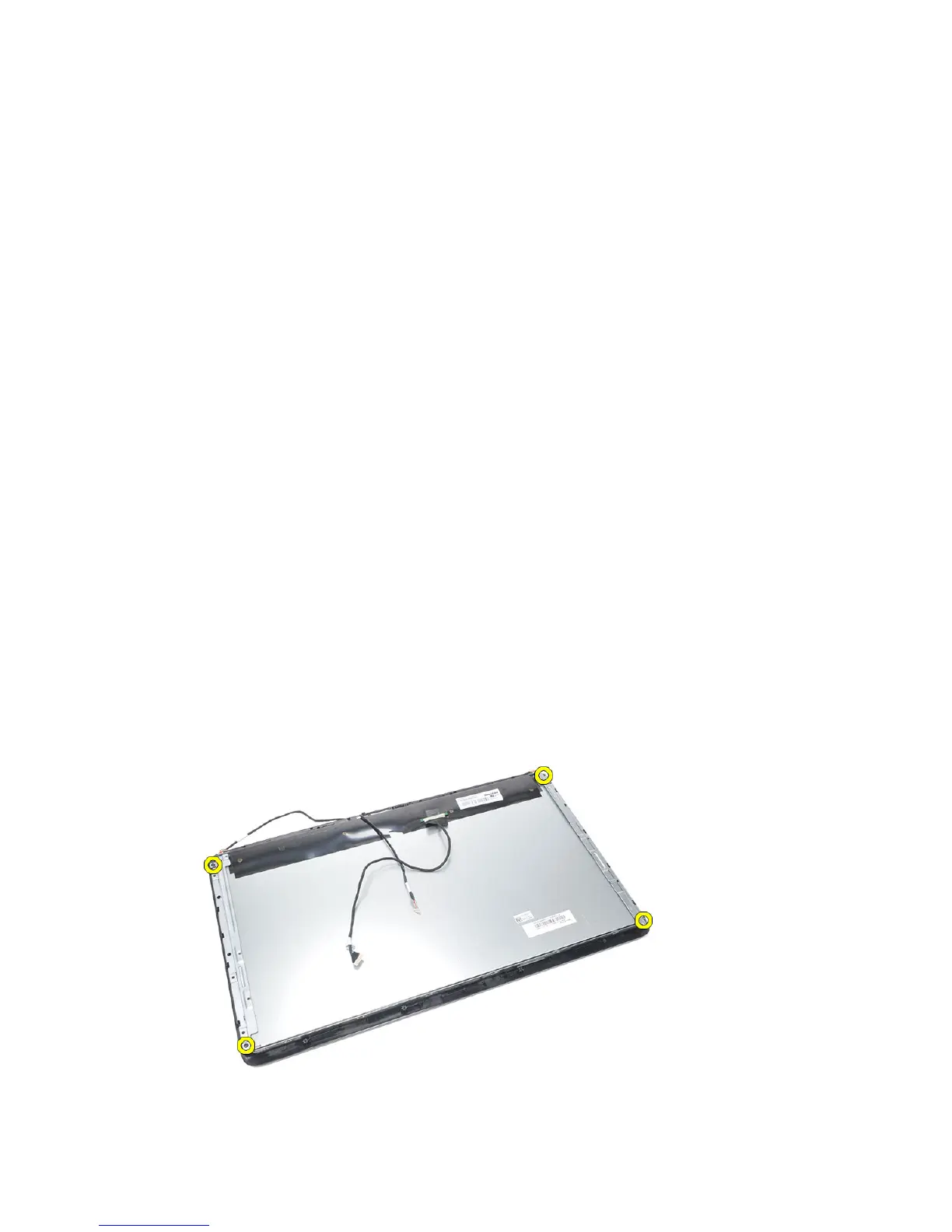

16. Remove the screws (marked with an arrow) that secure the front bezel to the
display panel.
17. Lift the chassis off the front bezel.
