Dell Vostro 360 - Middle Frame Procedures; Removing The Middle Frame

14
Removing The Middle Frame
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .
5. Remove the front foot .
6. Remove the optical drive .

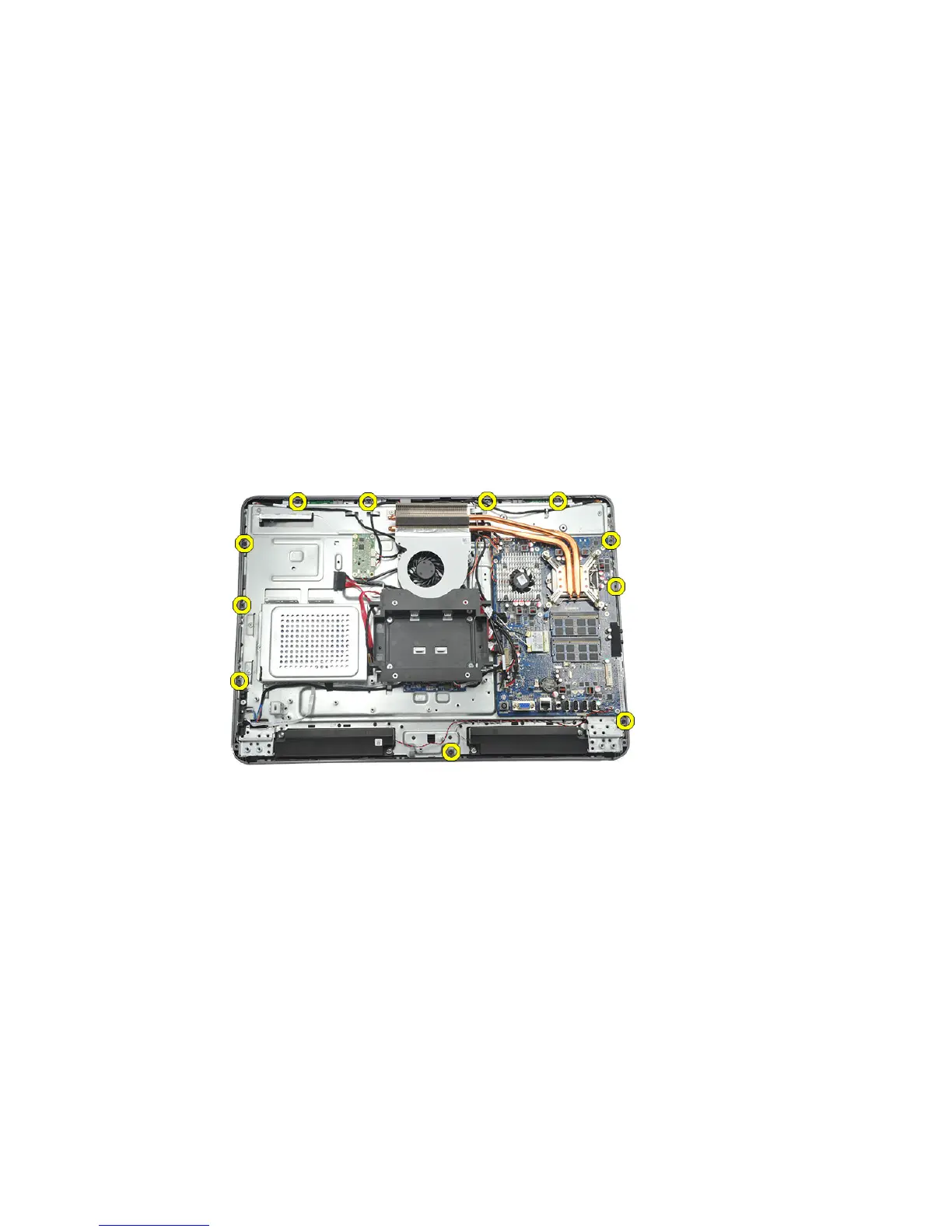

7. Remove the screws that secure the middle frame.
8. Pry the middle frame loose from the chassis.
