Dell Vostro 360 - Heatsink Procedures; Removing The Heatsink

21
Removing The Heatsink
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .
5. Remove the rear stand cover .
6. Remove the system board shield .
7. Remove the CPU fan .

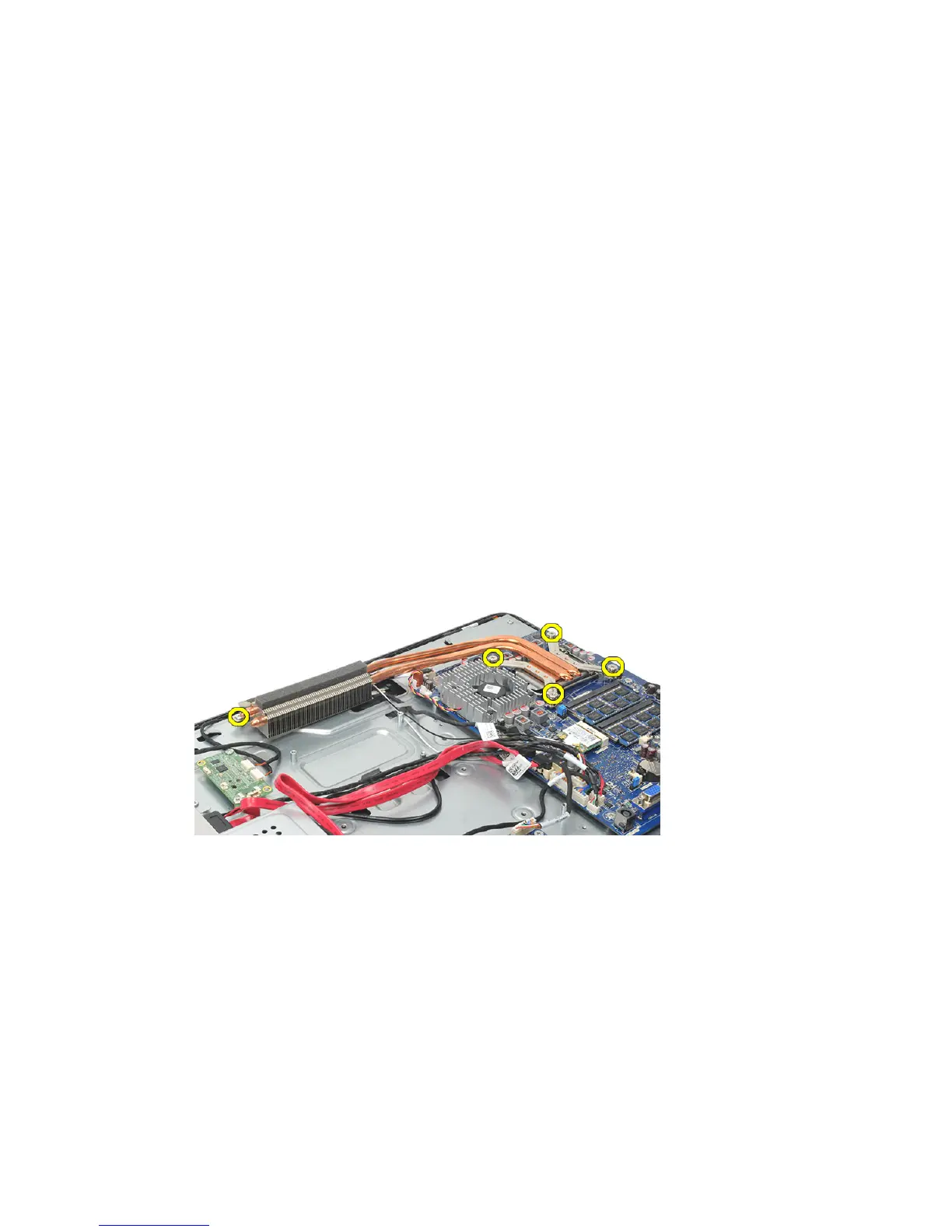

8. Remove the screw that secures the heatsink to the chassis, and remove the screws
that secure the heatsink to the system board.
9. Remove the heatsink from the computer.
