Removing The System Board Shield
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the rear cover .
3. Remove the rear stand .
4. Remove the rear I/O cover .
5. Remove the I/O panel .

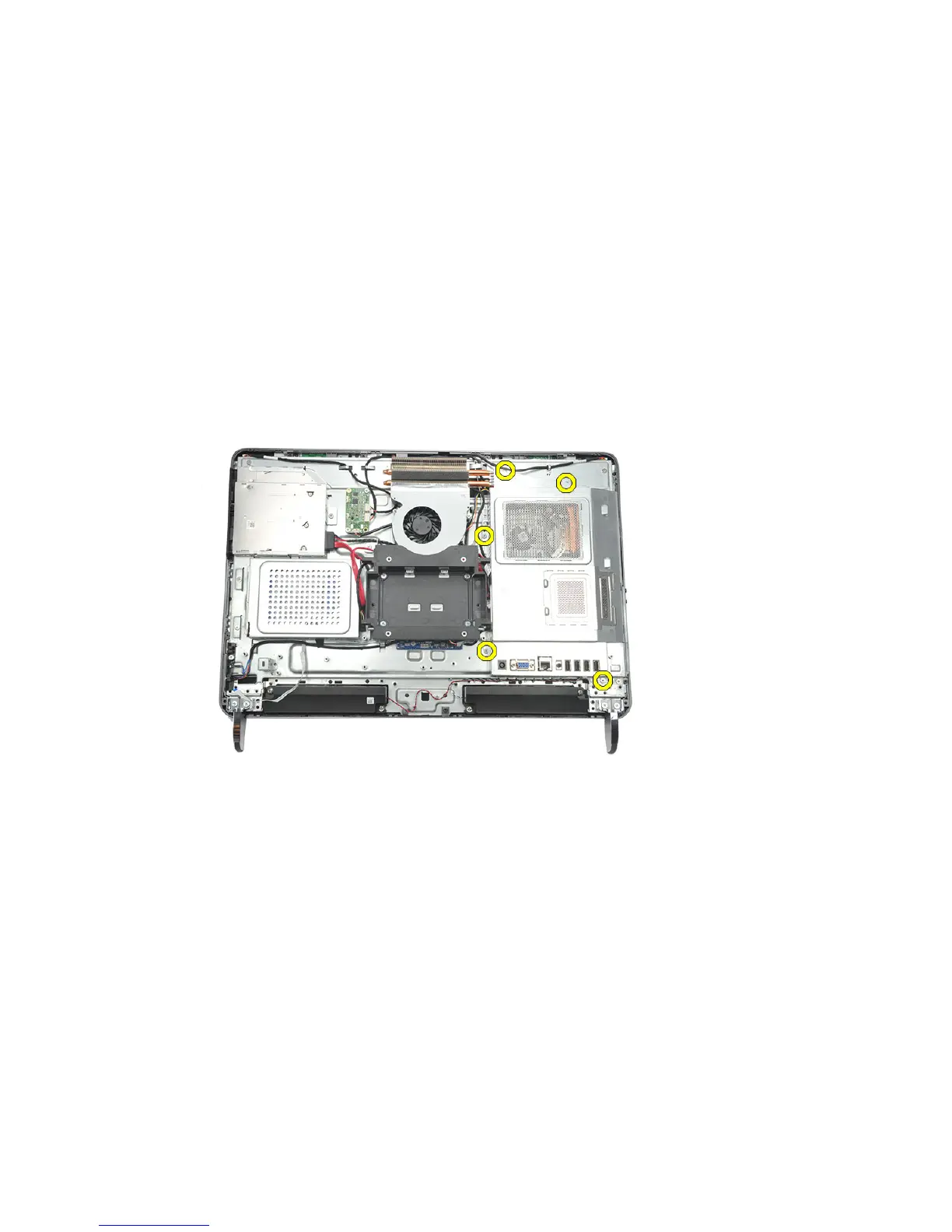

6. Remove the screws that secure the system board shield.
7. Tilt the system board shield at an angle and remove it from the computer.
