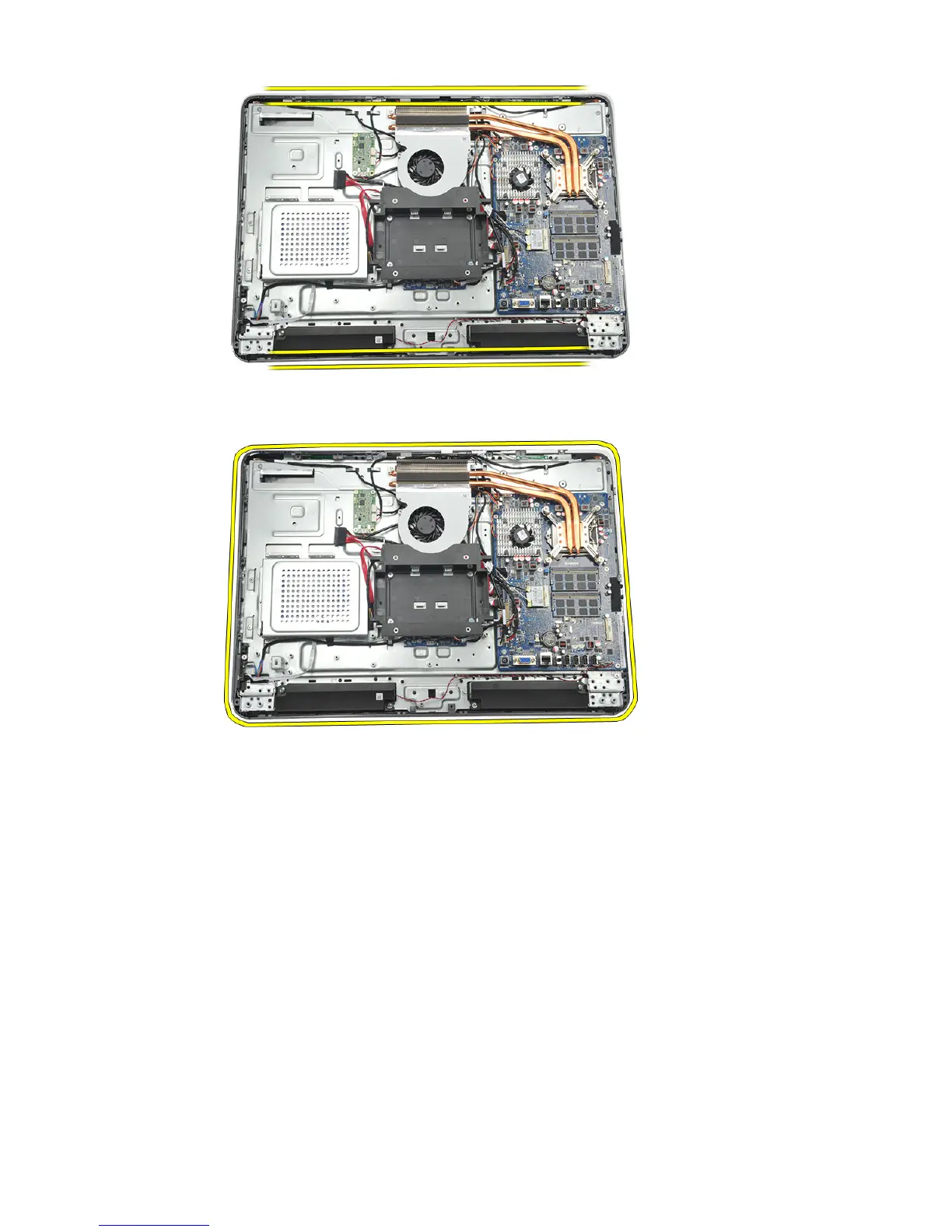

9. Remove the middle frame from the computer.
Installing The Middle Frame
1. Place the middle frame on the chassis.
2. Secure the clips until all of them snap on to the chassis.
3. Tighten the screws to secure the middle frame.
4. Install the
optical drive
.
5. Install the
front feet
.
6. Install the
rear I/O cover
.
7. Install the
rear stand
.
8. Install the
rear cover
.
9. Follow the procedures in
After Working Inside Your Computer
.
42
