Dell Vostro 360 - Installing The Low-Voltage Differential Signaling (LVDS) Cable

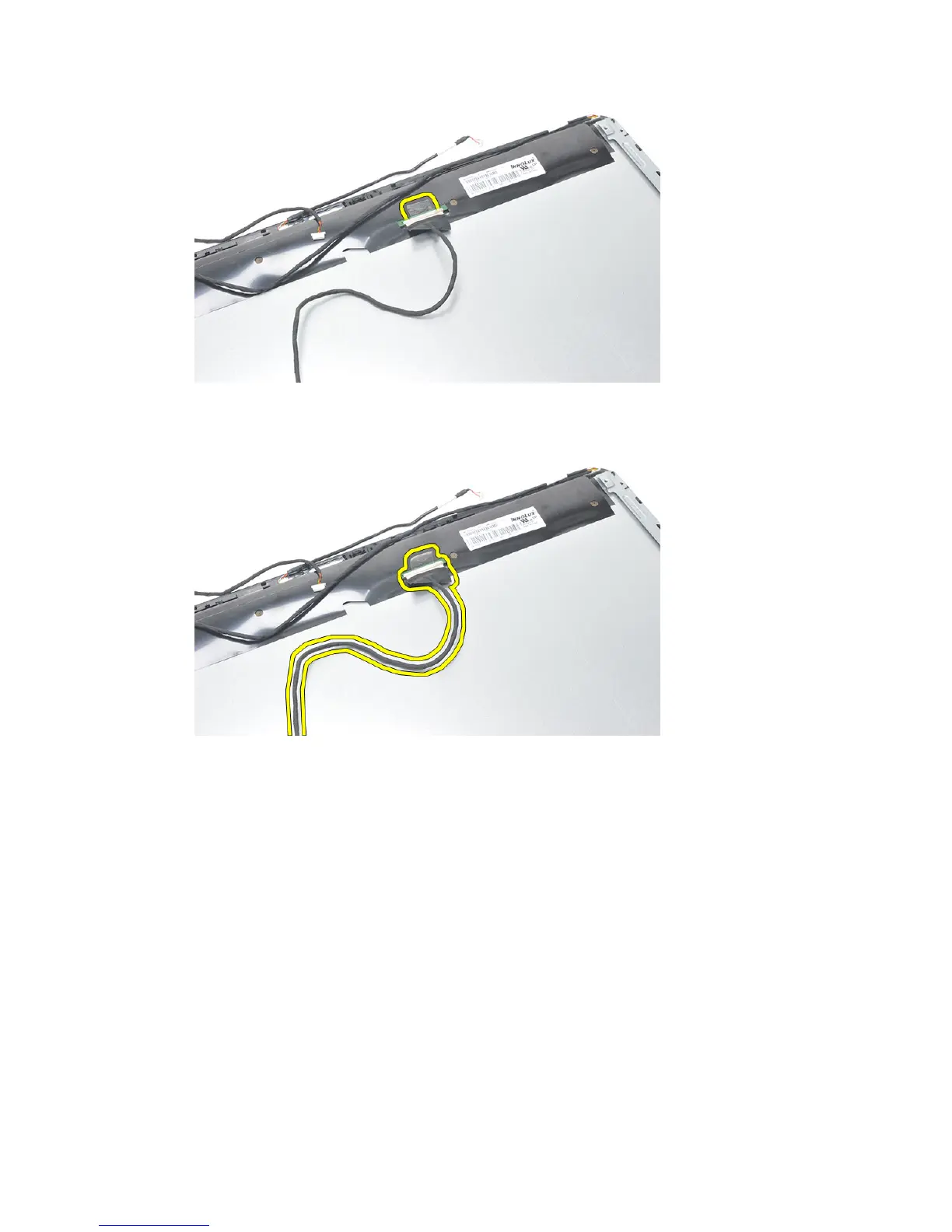

16. Disconnect the LVDS cable from its connector and remove it from the computer.
Installing The Low-Voltage Differential Signaling
(LVDS) Cable
1. Connect the LVDS cable to its connector.
2. Secure the plastic tape that connects the LVDS cable to the chassis.
3. Install the tempan .
4. Install the system board .
5. Install the CPU heatsink .
6. Install the CPU fan .
7. Install the optical drive .
8. Install the hard drive cage and hard drive .
9. Install the system board shield .
74
