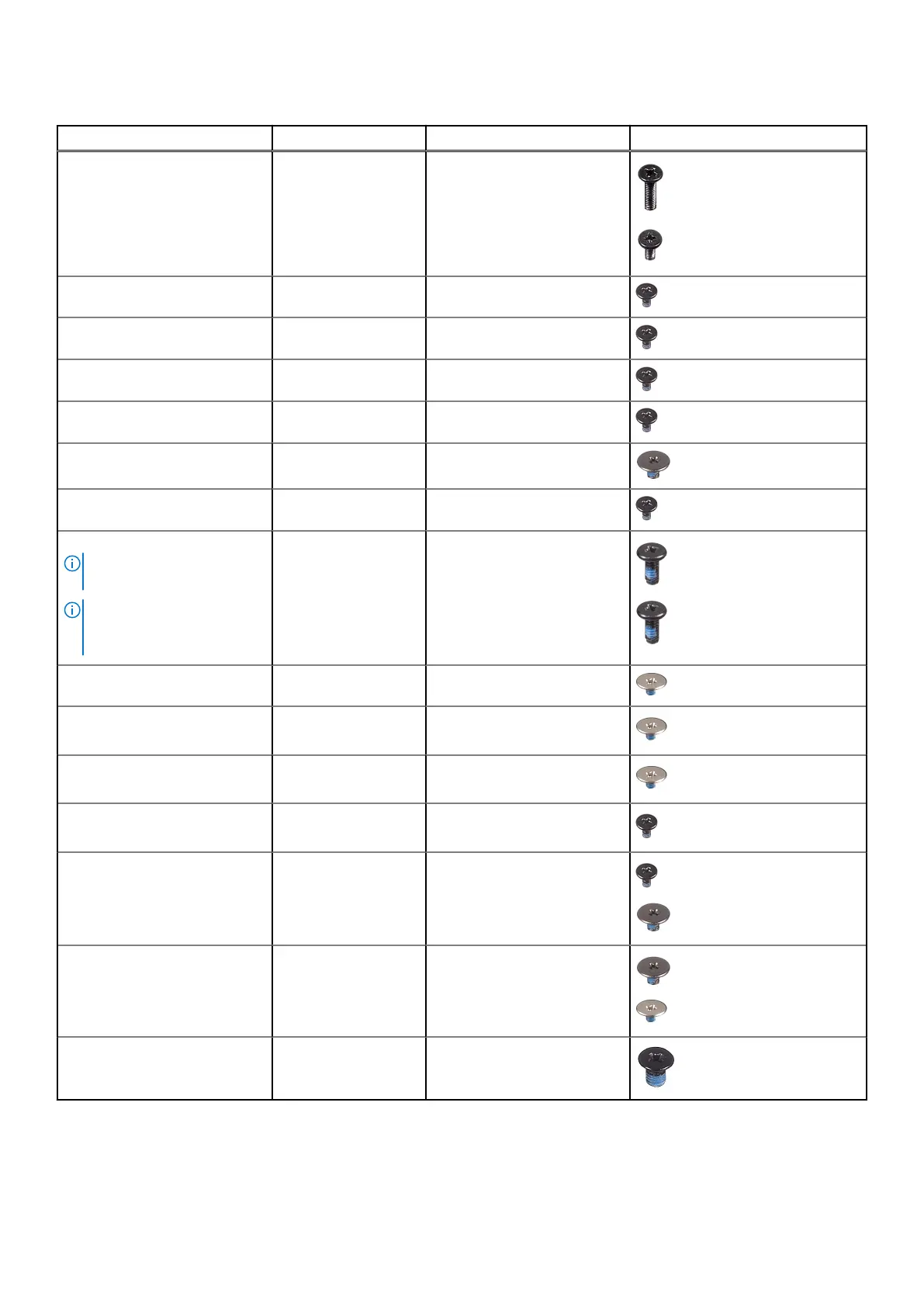

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover
M2x8 - captive
M2x4
2
7
3-Cell Battery M2x3 4
4-Cell Battery M2x3 5
Solid-state drive (slot 1) M2x3 1
Solid-state drive (slot 2) M2x3 1
Solid-state drive thermal
support bracket
M1.6x2 2
WLAN M2x3 1
Heat sink
NOTE: UMA configuration
has 4 captive screws.
NOTE: Discrete
configuration has 7 captive
screws.
M2x5.35 - captive
M2x5.35 - captive
4
7
System fan M2x2 2
I/O board
M2x2 4
System board
M2x2 2
DC-in port
M2x3 1
Power button with fingerprint
reader
M2x3
M1.6x2
1
1
Touchpad
M1.6x2
M2x2
3
2
Display assembly
M2.5x3.5 6
Disassembly and reassembly 13
