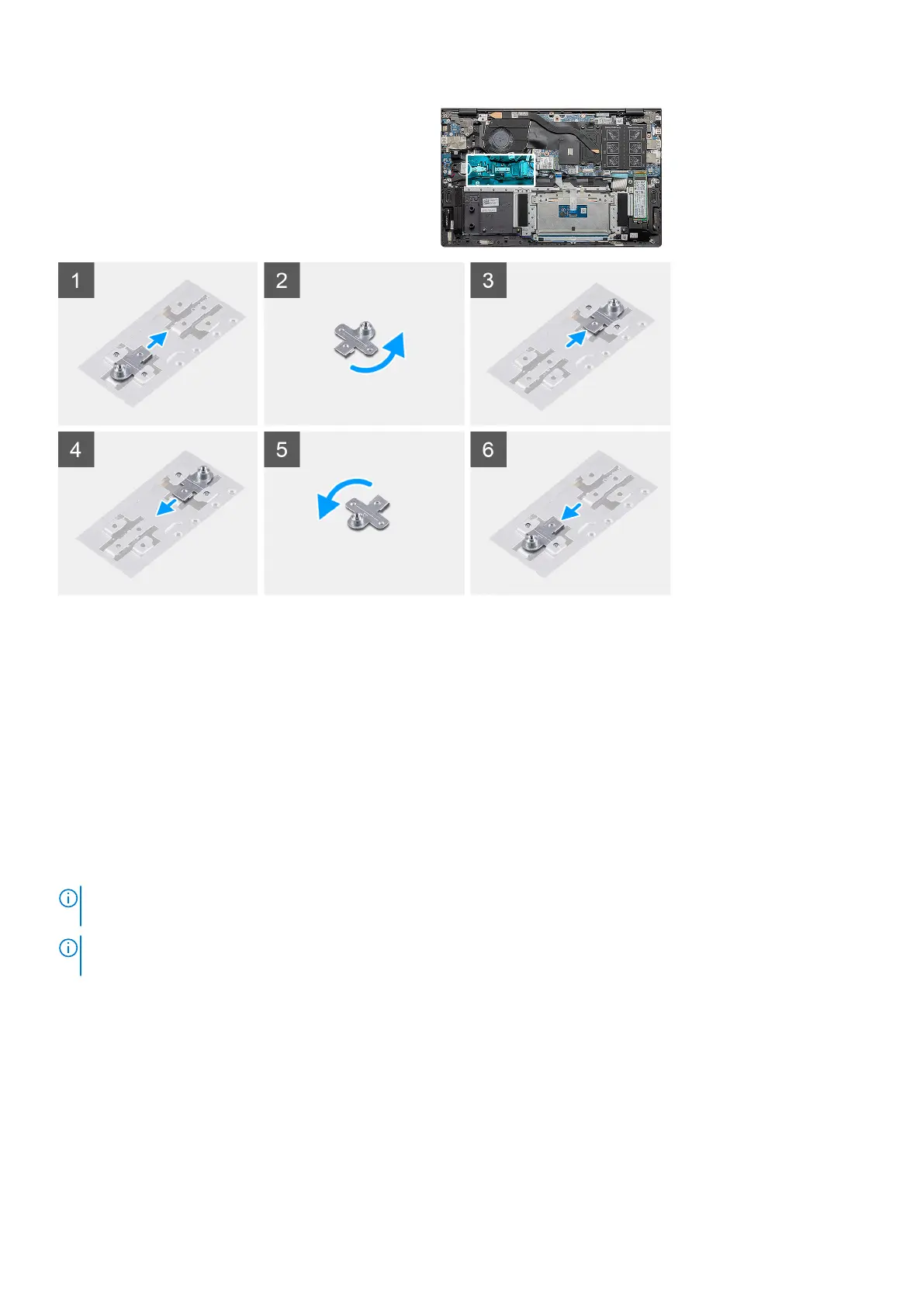

Steps
1. Slide and remove the SSD support bracket from the support bracket slot.
2. Depending on the type of solid-state drive (M.2 2230/ M.2 2280), align and insert the SSD support bracket into the support
bracket slot.
3. Install the solid-state drive.
Removing the M.2 2280 solid-state drive - SSD-2
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
NOTE:
Depending on the configuration ordered, your computer may support a 2230 solid-state drive or a 2280 solid-state
drive in M.2 slot one.
NOTE: M.2 slot two supports one PCIe Gen3 x4 NVMe or SATA solid-state drive (M.2 2230 or M.2 2280) or one Intel
Optane memory H10 with solid state storage.
About this task
The figure indicates the location of the M.2 2280 solid-state drive and provides a visual representation of the removal procedure
from SSD slot two:
26
Disassembly and reassembly
