Dell Vostro 5502 - Display assembly; Removing the display assembly

5. Align and place the touchpad bracket into the slot on the palm-rest and keyboard assembly.
6. Replace the three (M1.6x2) screws that secure the touchpad bracket to the palm-rest and keyboard assembly.
7. Route the audio cable, and replace the adhesive tape.
Next steps
1. Install the speakers.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in after working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

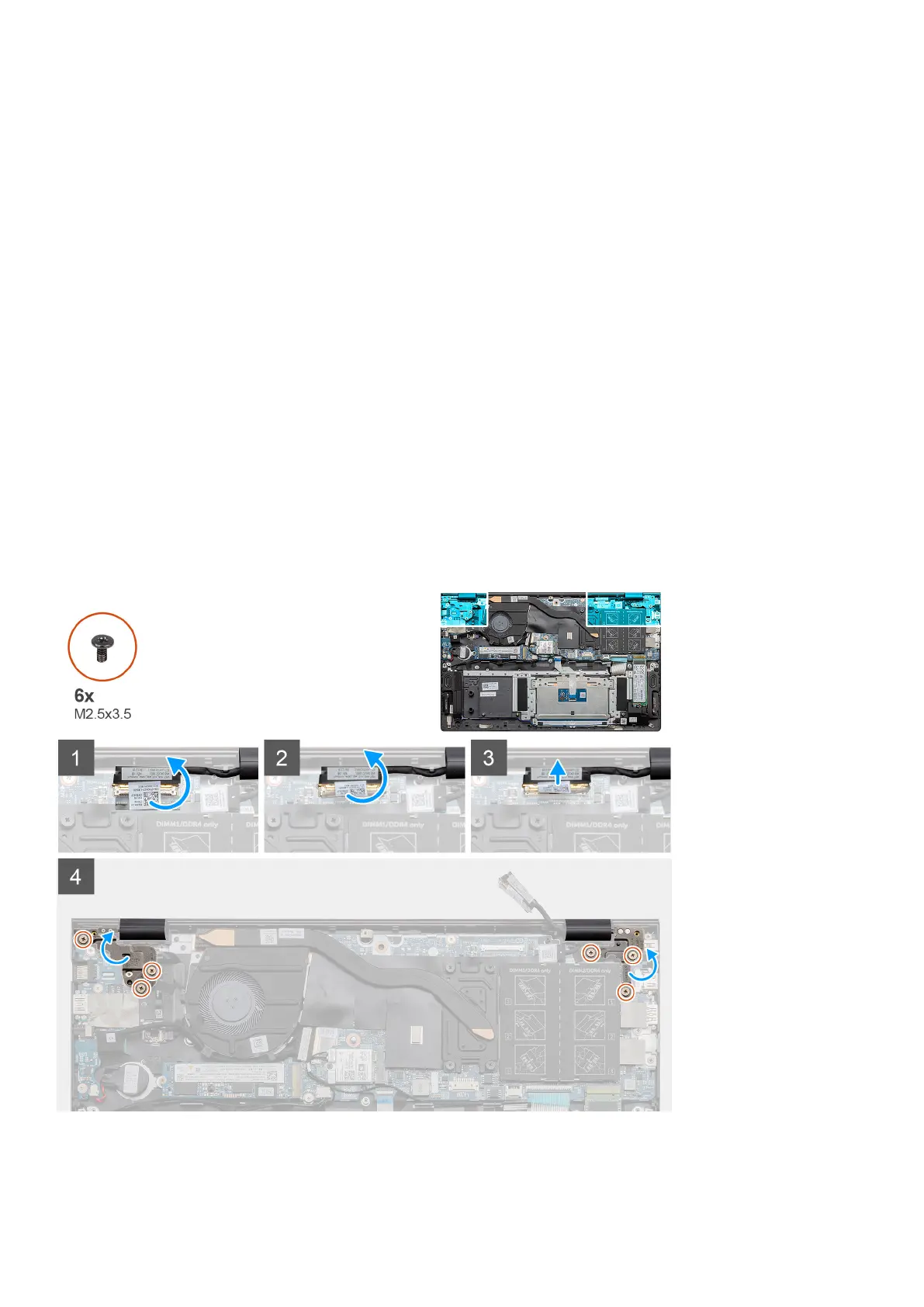

The figure indicates the location of the display assembly and provides a visual representation of the removal procedure.
Disassembly and reassembly
55
