Steps
1. Align the solid-state drive bracket to accommodate the M.2 2230 solid-state drive.
2. Replace the single (M2x3) screw to secure the solid-state drive module to the palmrest and keyboard assembly.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Replacing the SSD-1 support bracket
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the M.2 2280 SSD or M.2 2230 SSD.
About this task

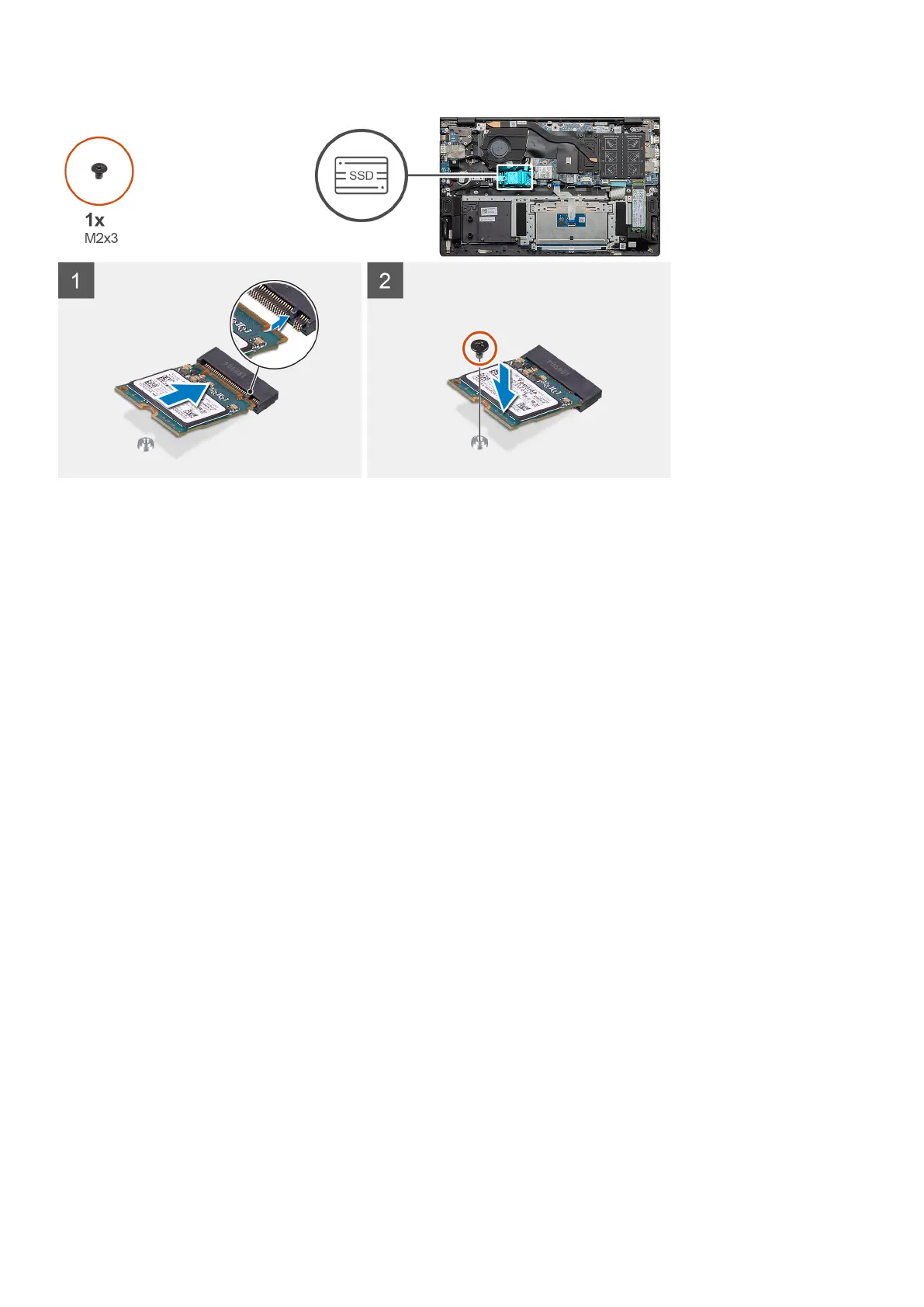

The figure indicates the location of the SSD support bracket and provides a visual representation of the replace procedure.
Disassembly and reassembly
25
