1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

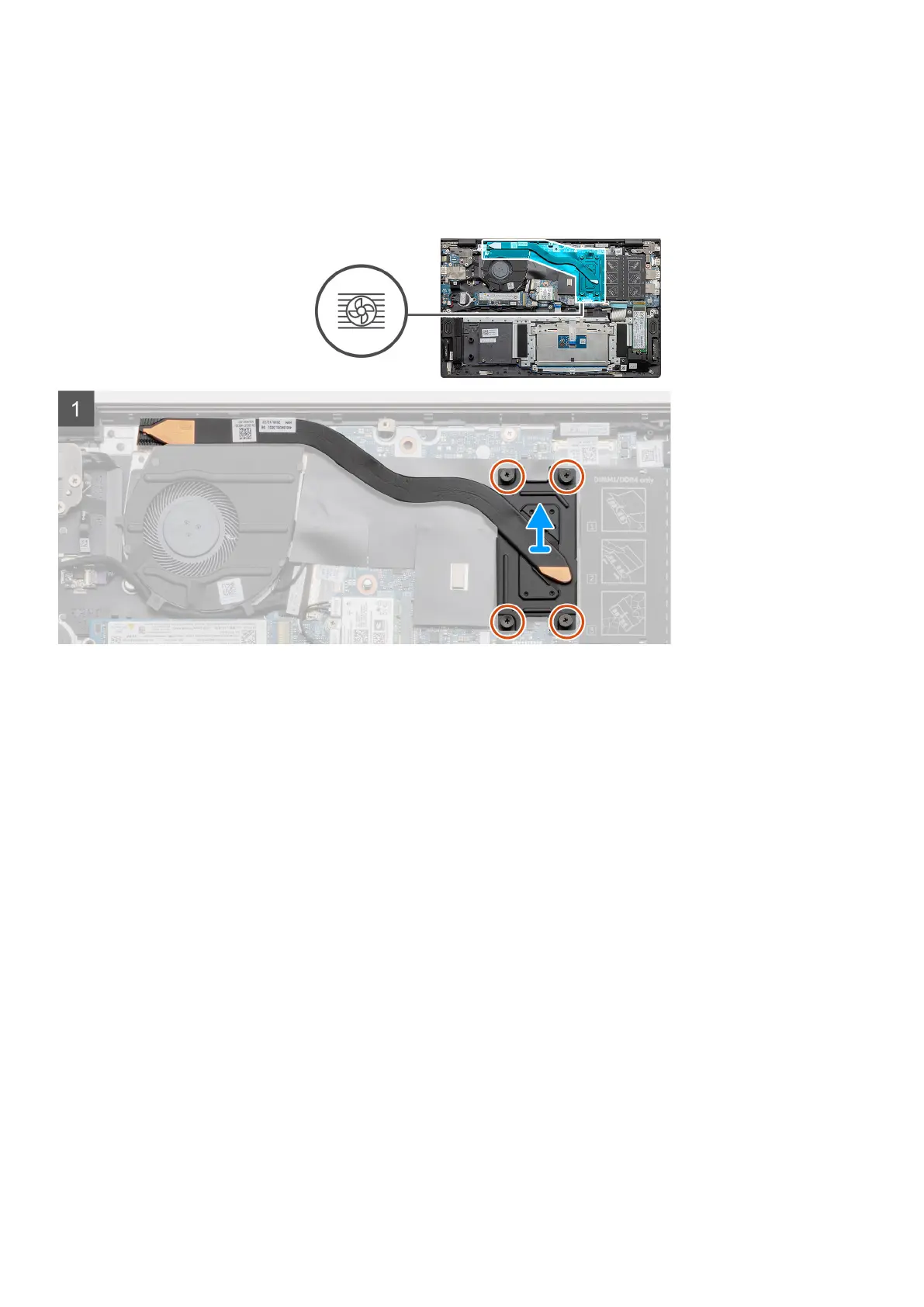

The figure indicates the location of the heat sink and provides a visual representation of the removal procedure.
Steps
1. In sequential order (as indicated on the heat sink), loosen the four captive screws that secure the heat sink to the system
board.
2. Lift and remove the heat sink off the palm-rest and keyboard assembly.
Installing the heat sink - UMA
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the heat sink and provides a visual representation of the installation procedure.
38
Disassembly and reassembly
