Dell Vostro 5502 User Manual

Steps

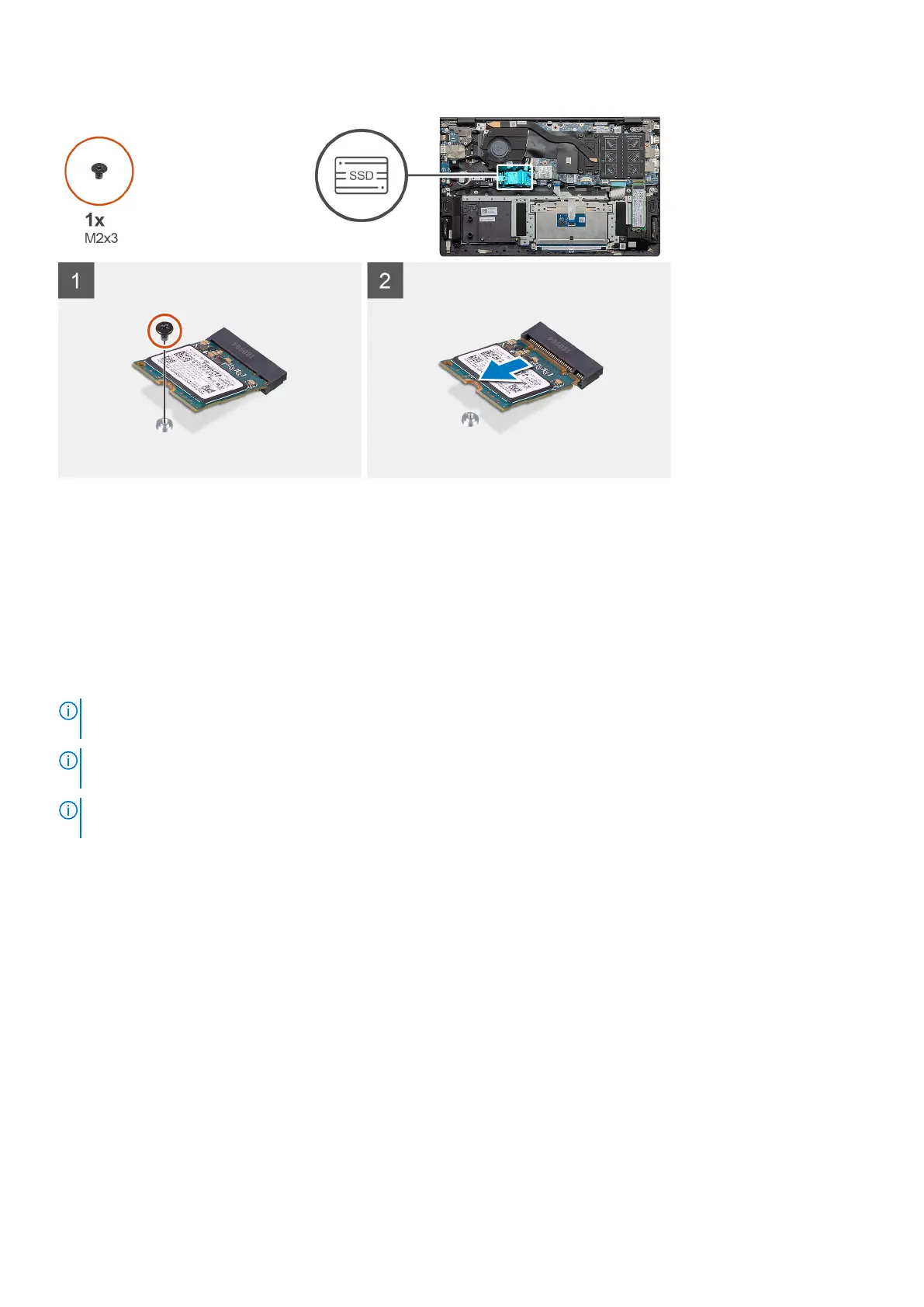

1. Remove the single screw (M2x3) that secures the solid-state drive to the palm-rest and keyboard assembly.
2. Slide and remove the solid-state drive module from the solid-state drive slot on the system board.
Installing the M.2 2230 solid-state drive - SSD-1
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE:
Depending on the configuration ordered, your computer may support a 2230 solid-state drive or a 2280 solid-state
drive in M.2 slot one.
NOTE: M.2 slot two supports one PCIe Gen3 x4 NVMe or SATA solid-state drive (M.2 2230 or M.2 2280) or one Intel
Optane memory H10 with solid state storage.
NOTE: If there is only one solid-state drive in the configuration you ordered, you can install another solid-state drive in the
other M.2 slot. However, you may need a solid-state drive bracket (sold separately) to install the additional solid-state drive.
About this task
The figure indicates the location of the solid-state drive bracket and provides a visual representation of the bracket alignment
procedure to accommodate the M.2 2230 solid-state drive in SSD slot one:
24
Disassembly and reassembly

Dell Vostro 5502 Specifications

General

Graphics	Intel Iris Xe Graphics
Display	15.6-inch FHD (1920 x 1080) Anti-glare LED Backlight Non-Touch Narrow Border
RAM	8GB DDR4, 3200MHz
Storage	Up to 1TB M.2 PCIe NVMe SSD
Operating System	Windows 10 Pro
Weight	1.65 kg (3.63 lbs)
Battery	3-Cell, 40 WHr, Integrated battery
Ports	2 x USB 3.2 Gen 1
Wireless	Intel Wi-Fi 6 + Bluetooth 5.1
Camera	720p HD camera
Audio	Stereo speakers
Dimensions	356.1mm x 234.5mm x 17.9mm
Processor	11th Gen Intel Core i5-1135G7 / i7-1165G7
