Installing the power button with optional finger reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

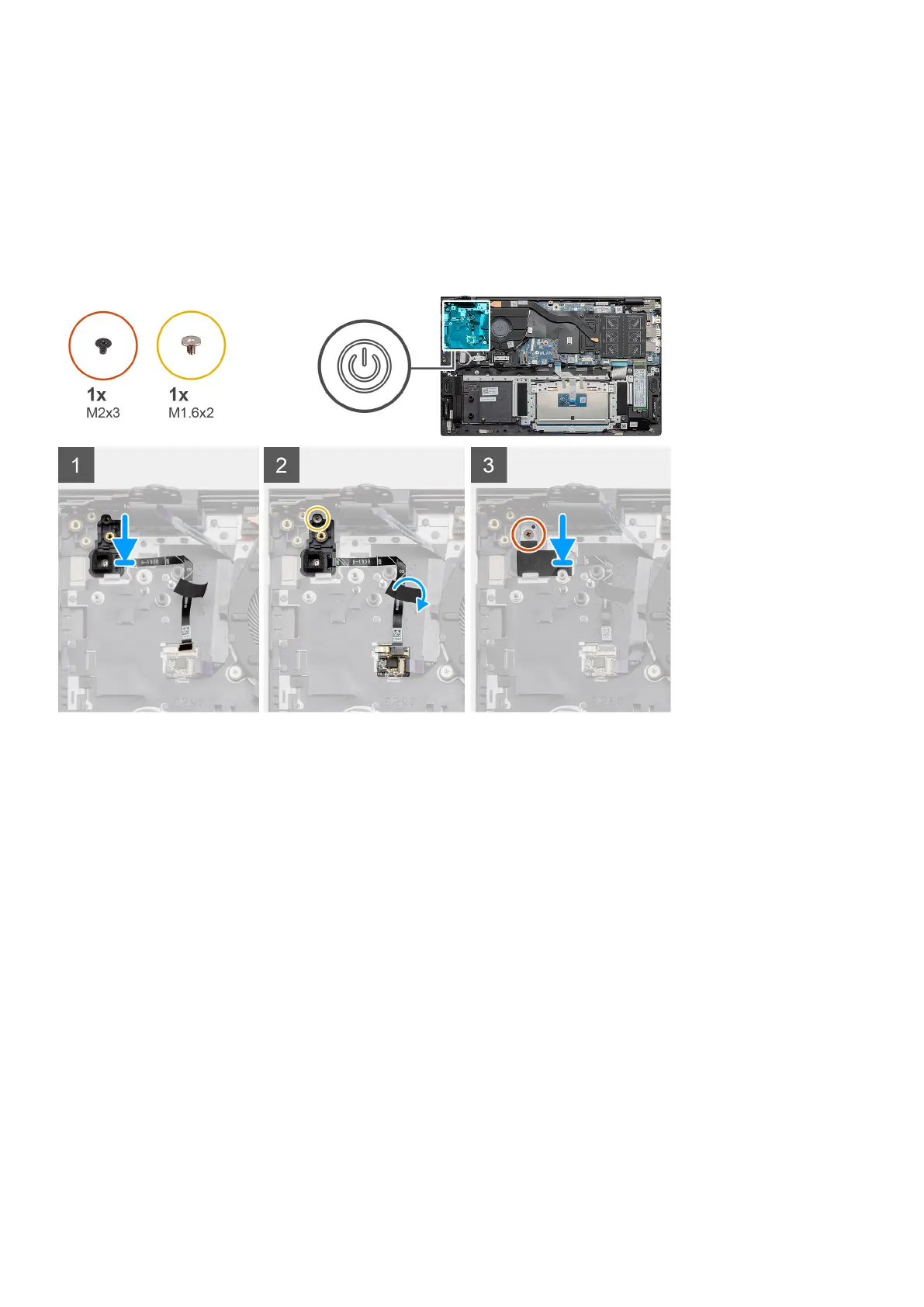

The figure indicates the location of the power button with fingerprint reader and provides a visual representation of the
installation procedure.
Steps
1. Using the alignment post, place the power button with optional fingerprint reader on the palm-rest and keyboard assembly.
2. Replace the single screw (M1.6x2) that secures the power button with optional fingerprint reader to the palm-rest and
keyboard assembly.
3. Plug the fingerprint reader cable into the connector on palm-rest and keyboard assembly.
4. Adhere the adhesive tape.
5. Place the fingerprint reader bracket, and replace the single screw (M2x3).
Next steps
1. Install the I/O board.
2. Install the system fan.
3. Install the WLAN card.
4. Install the battery.
5. Install the base cover.
6. Follow the procedure in after working inside your computer.
52
Disassembly and reassembly

Dell Vostro 5502 Specifications

General

Graphics	Intel Iris Xe Graphics
Display	15.6-inch FHD (1920 x 1080) Anti-glare LED Backlight Non-Touch Narrow Border
RAM	8GB DDR4, 3200MHz
Storage	Up to 1TB M.2 PCIe NVMe SSD
Operating System	Windows 10 Pro
Weight	1.65 kg (3.63 lbs)
Battery	3-Cell, 40 WHr, Integrated battery
Ports	2 x USB 3.2 Gen 1
Wireless	Intel Wi-Fi 6 + Bluetooth 5.1
Camera	720p HD camera
Audio	Stereo speakers
Dimensions	356.1mm x 234.5mm x 17.9mm
Processor	11th Gen Intel Core i5-1135G7 / i7-1165G7
