Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the speakers.
About this task

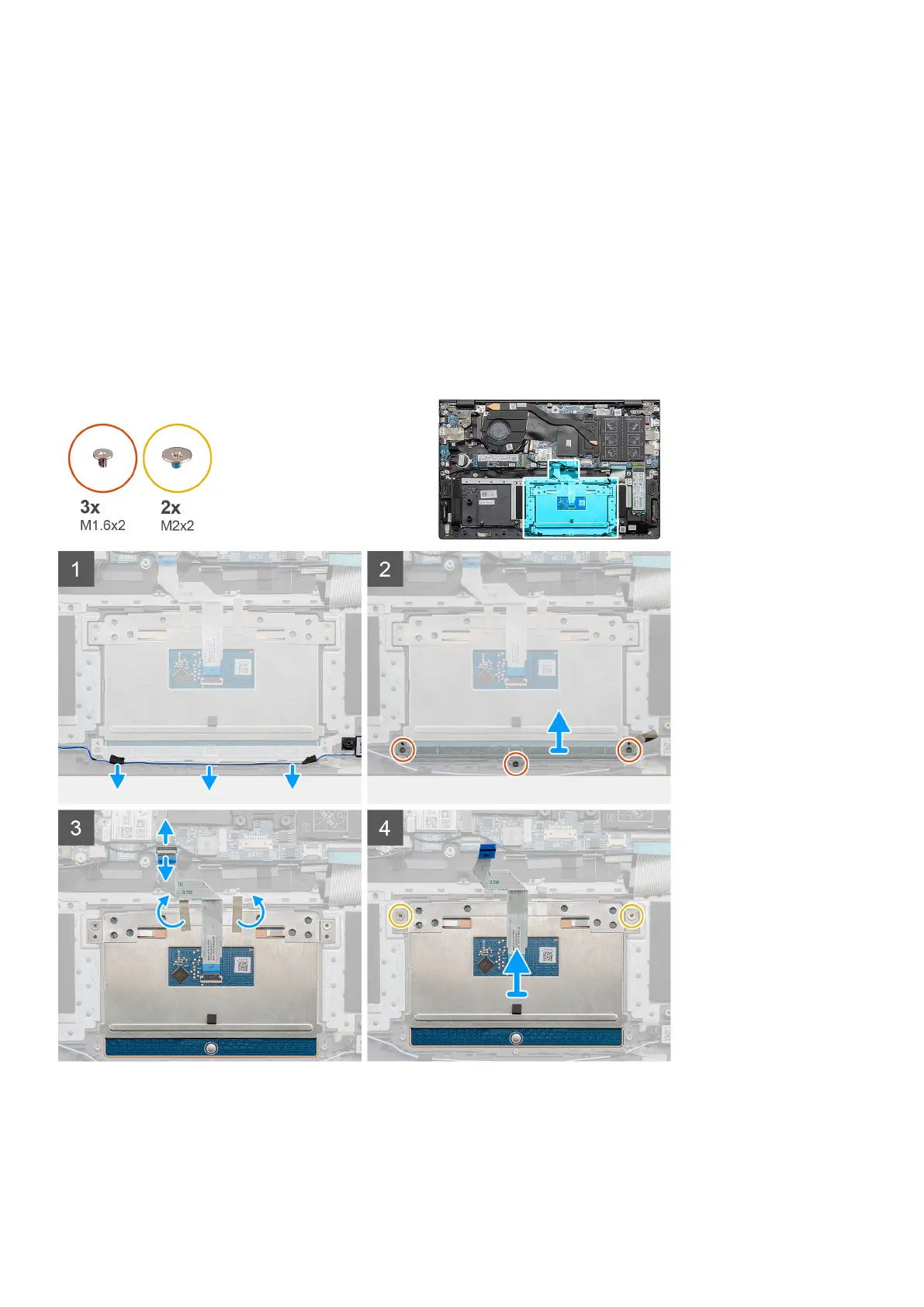

The figure indicates the location of the touchpad and provides a visual representation of the removal procedure.
Steps
1. Peel adhesive tape, and unroute the speaker cable.
2. Remove the three (M1.6x2) screws that secure the touchpad bracket to the palm-rest and keyboard assembly.
3. Lift the touchpad bracket off the palm-rest and keyboard assembly.
Disassembly and reassembly
53
