I/O board
Removing the I/O board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the SSD-1 (M.2 2280 or M.2 2230).
6. Remove the coin cell.
About this task

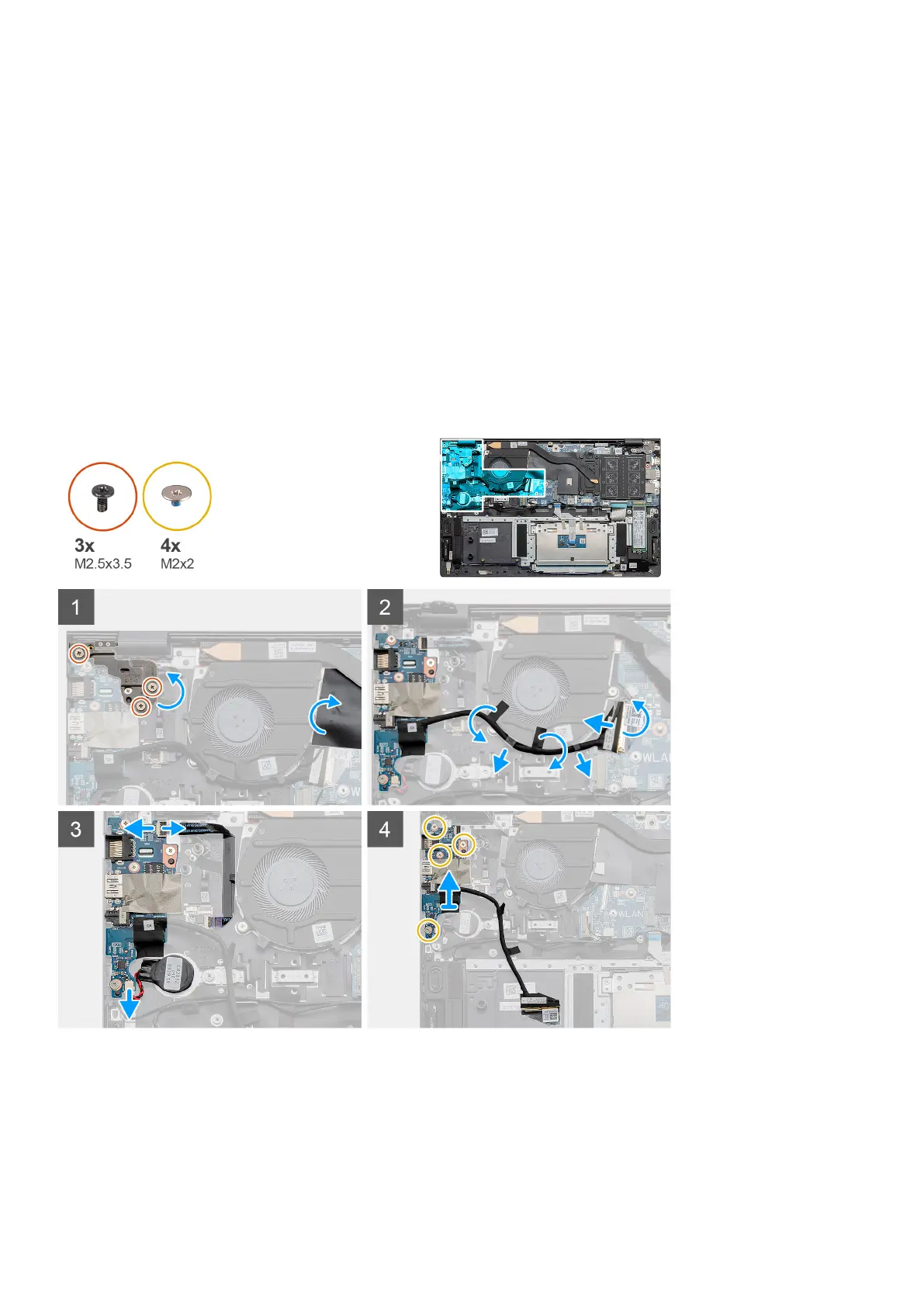

The figure indicates the location of the I/O board and provides a visual representation of the removal procedure.
Steps
1. Locate the I/O board on your computer.
2. Remove the three (M2.5x3.5) screws that secure the left-display hinge to the computer and rotate the hinge open to 90
degrees.
3. Lift the mylar cover.
4. Peel the adhesive tape to unroute the I/O cable.
