Steps

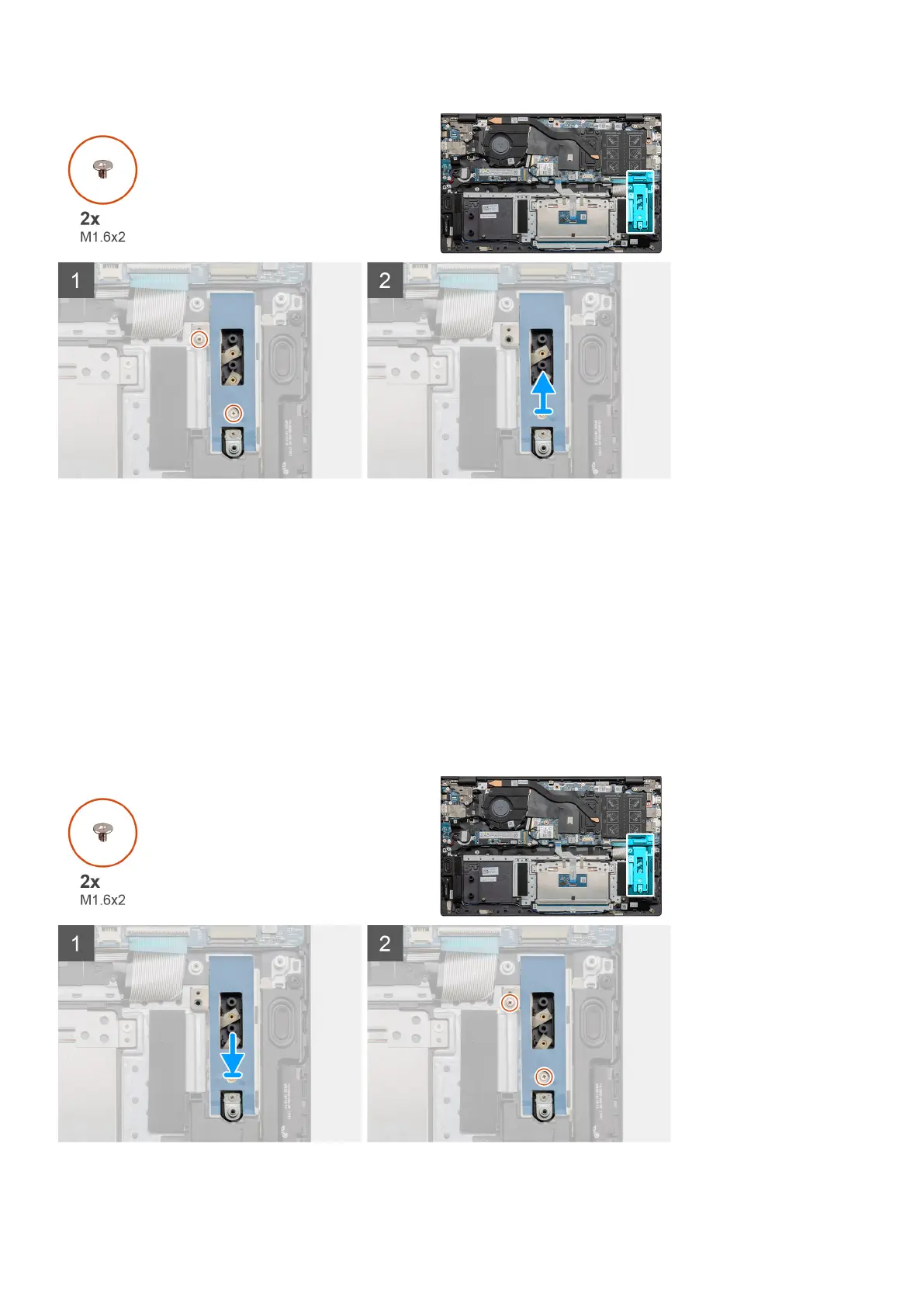

1. Remove the two screws (M1.6x2) that secures the thermal support bracket to palm-rest and keyboard assembly.
2. Lift the thermal support bracket.
Replacing the thermal support bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure provides a visual representation on how to replace thermal support bracket.
Disassembly and reassembly
31
