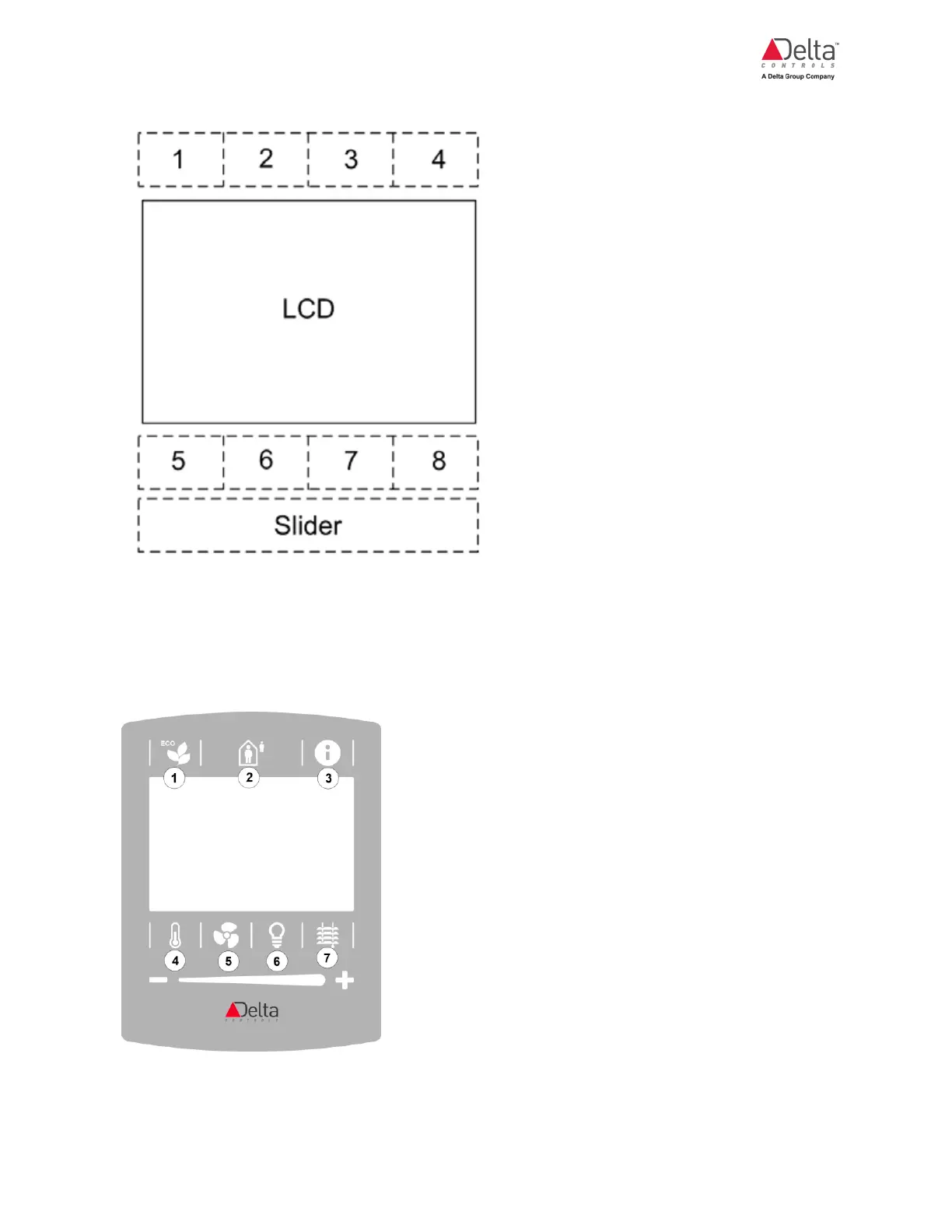

Not all the buttons are used in every button overlay. In some cases, the slider element can be
converted into 2 additional up and down buttons, or omitted. In overlays where there are less than 8
buttons, button areas are merged together and counted as one (see the examples below).
(click to view larger version of image or images)
