Delta Tau 24E2A - Ubus Pinouts; P1 UBUS (96-Pin Header)

Accessory 24E2A
UBUS PINOUTS
P1 UBUS (96-
Pin Header)

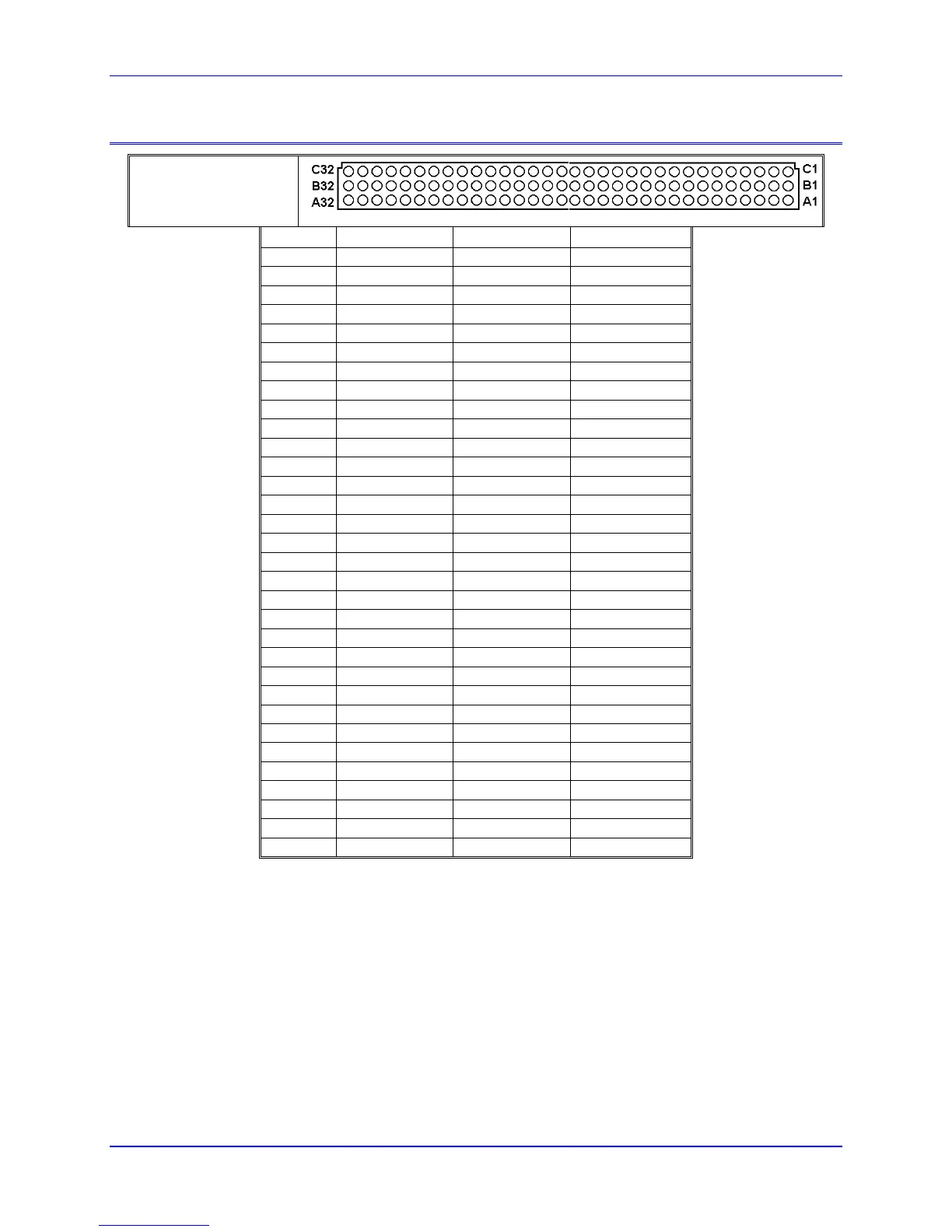

Front View
Pin # Row A Row B Row C
1 +5Vdc +5Vdc +5Vdc
2 GND GND GND
3 BD01 DAT0 BD00
4 BD03 SEL0 BD02
5 BD05 DAT1 BD04
6 BD07 SEL1 BD06
7 BD09 DAT2 BD08
8 BD11 SEL2 BD10
9 BD13 DAT3 BD12
10 BD15 SEL3 BD14
11 BD17 DAT4 BD16
12 BD19 SEL4 BD18
13 BD21 DAT5 BD20
14 BD23 SEL5 BD22
15 BS1 DAT6 BS0
16 BA01 SEL6 BA00
17 BA03 DAT7 BA02
18 BX/Y SEL7 BA04
19 CS3- BA06 CS2-
20 BA05 BA07 CS4-
21 CS12- BA08 CS10-
22 CS16- BA09 CS14-
23 BA13 BA10 BA12
24 BRD- BA11 BWR-
25 BS3 MEMCS0- BS2
26 WAIT- MEMCS1- RESET
27 PHASE+ IREQ1- SERVO+
28 PHASE- IREQ2- SERVO-
29 ANALOG GND IREQ3- ANALOG GND
30 -15Vdc PWRGND +15Vdc
31 GND GND GND
32 +5Vdc +5Vdc +5Vdc
For more details about the JEXP, see the UBUS Specification Document.
