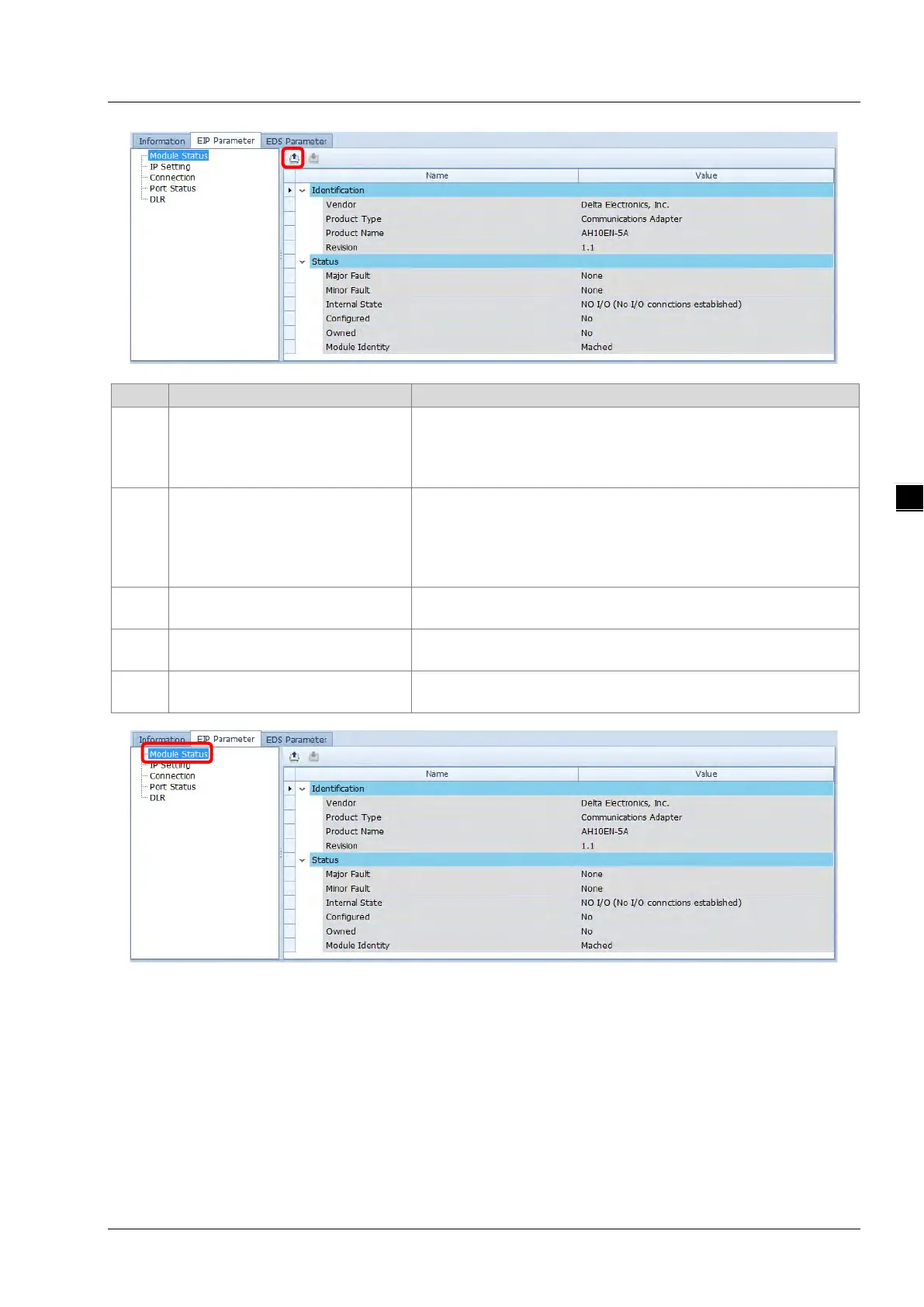

Chapter 4 EIP Builder
4-21
4_
Name
Definition
①
Module Status
(c) Identification: Display information regarding Vendor, Product
Type, Product Name, Revision, etc.
(d) Status: Display connection status, including Major Fault, Minor
Fault, Internal State, Configuration Status, and Module Identity.
②
IP Setting
 Port1: Indicating port 1 of the device, for editing configurations
of the IP Address, Subnet Mask, Gateway Address, and Host
Name.
Remark: When there is a Port2, that means there are 2 Ethernet
communication ports.
③
Connection
 EDS parameters filtering rules include Disable Keying,
Compatible Keying, and Exact Match.
④
Port Status
 Display Link Status, Speed, Duplex, Negotiation Status and
Hardware Fault.
⑤
Device Level Ring (DLR)
 Display DLR information includes Network Topology, Network
Status, Ring Supervisor, and Active Supervisor Precedence.
