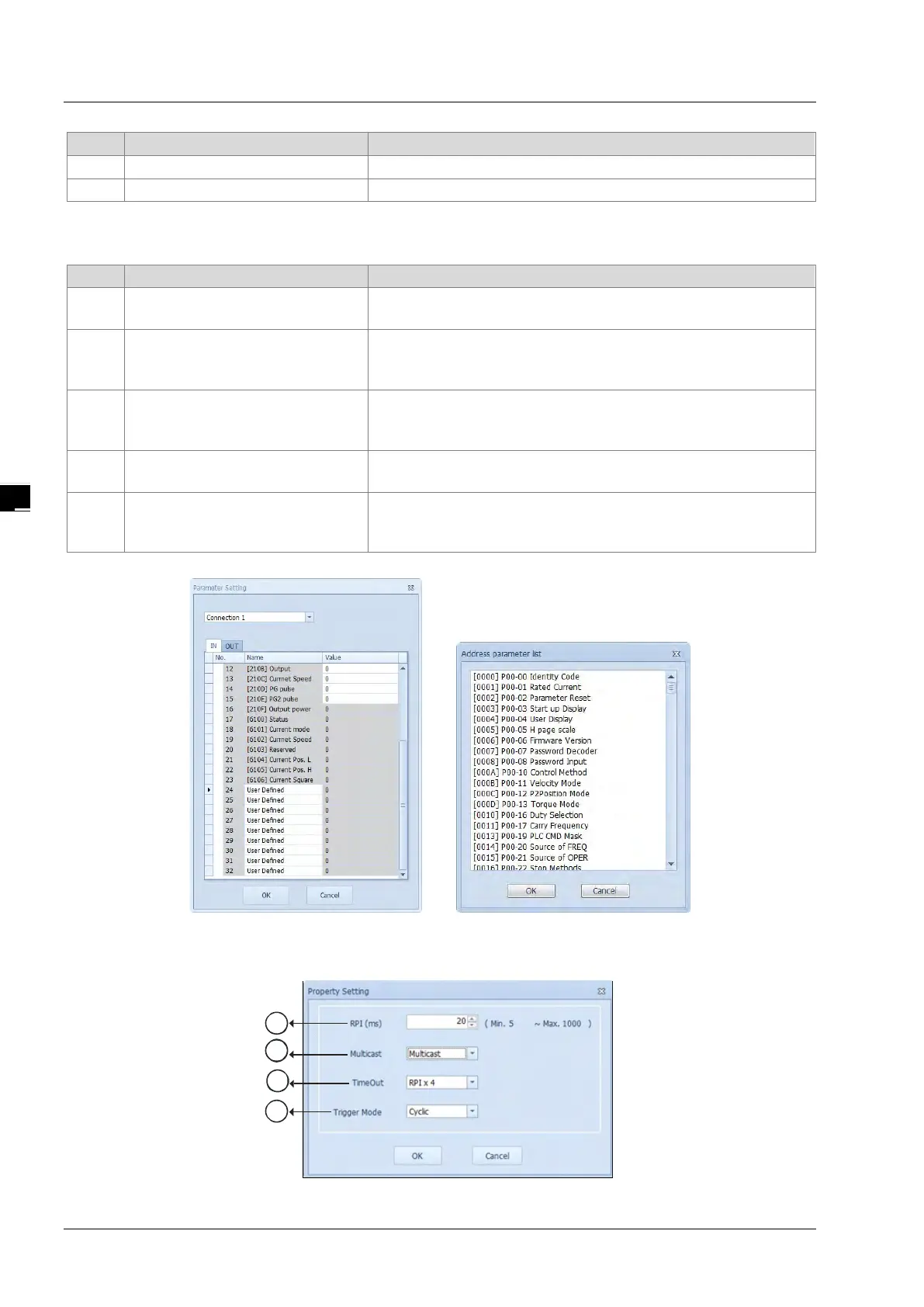

Delta AHCPU560-EN2 Series User Manual

EtherNet/IP Operation Manual
4-24
_4
Name
Definition

Length
Set up the data mapping length; unit: byte, the maximum is 500 byte.

Property
Set up the advanced data mapping parameters.
 I/O Mapping Table
Delta EIP devices provide I/O mapping table. If needed, users can use the table to edit the parameters.
Name
Definition
 Connection
Select the connection from the drop down list. Different connection
might have different mapping parameters.
 In
Input the mapping parameters. The column No. states the maximum
number of mapping parameters to input. Double-click the column
Name to open the mapping table to edit.
 Out
Output the mapping parameters. The column No. states the maximum
number of mapping parameters to output. Double-click the column
Name to open the mapping table to edit.
 Name
The parameter name; double-click the column Name to open the
mapping table to edit.
 Value
Values; after editing and downloading the values will be stored in the
Scanner. When the connection is established, the values will be
written to the Adapter.
 Property
1
2
3
4
