2. Set up the Data Mapping Parameters
Type the parameters in the data mapping table

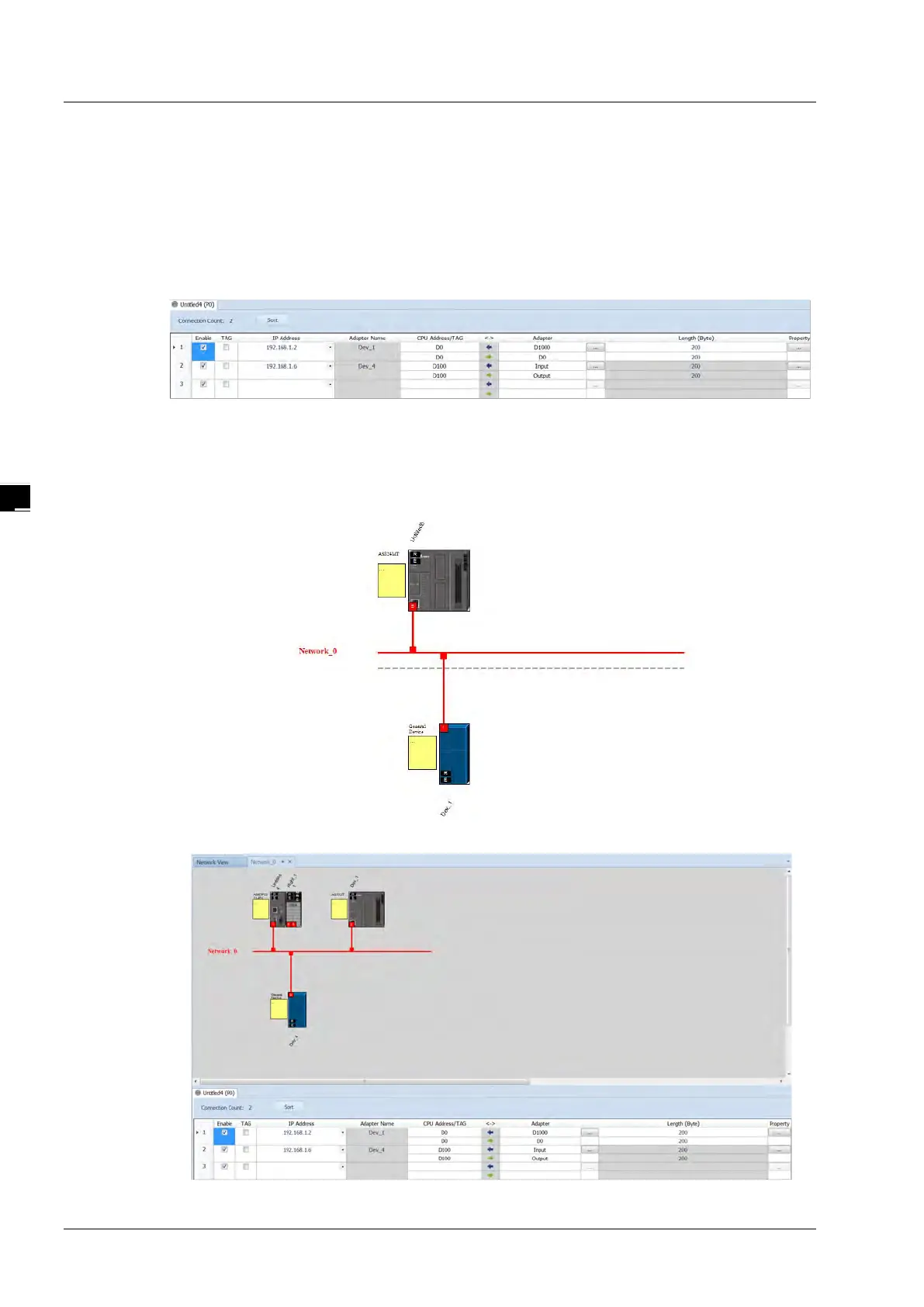

a) See the example of reading the D500~D599 of the Adapter with the IP address 192.168.1.2 to
the D10000~D10099 of the Scanner below.
b) See the example of writing the D20200~D20299 of the Scanner to the D100~D199 of the
Adapter with the IP address 192.168.1.1
Use TAG in data mapping
a) Add a General Device in the network and select the IP address of the Produced TAG of the
device to be connected. For adding devices in the network, please refer to section 4.3 for more
information.
b) The data mapping page
