Denon AVR-1612 - Front Panel Assy

10
2. FRONT PANEL ASSY

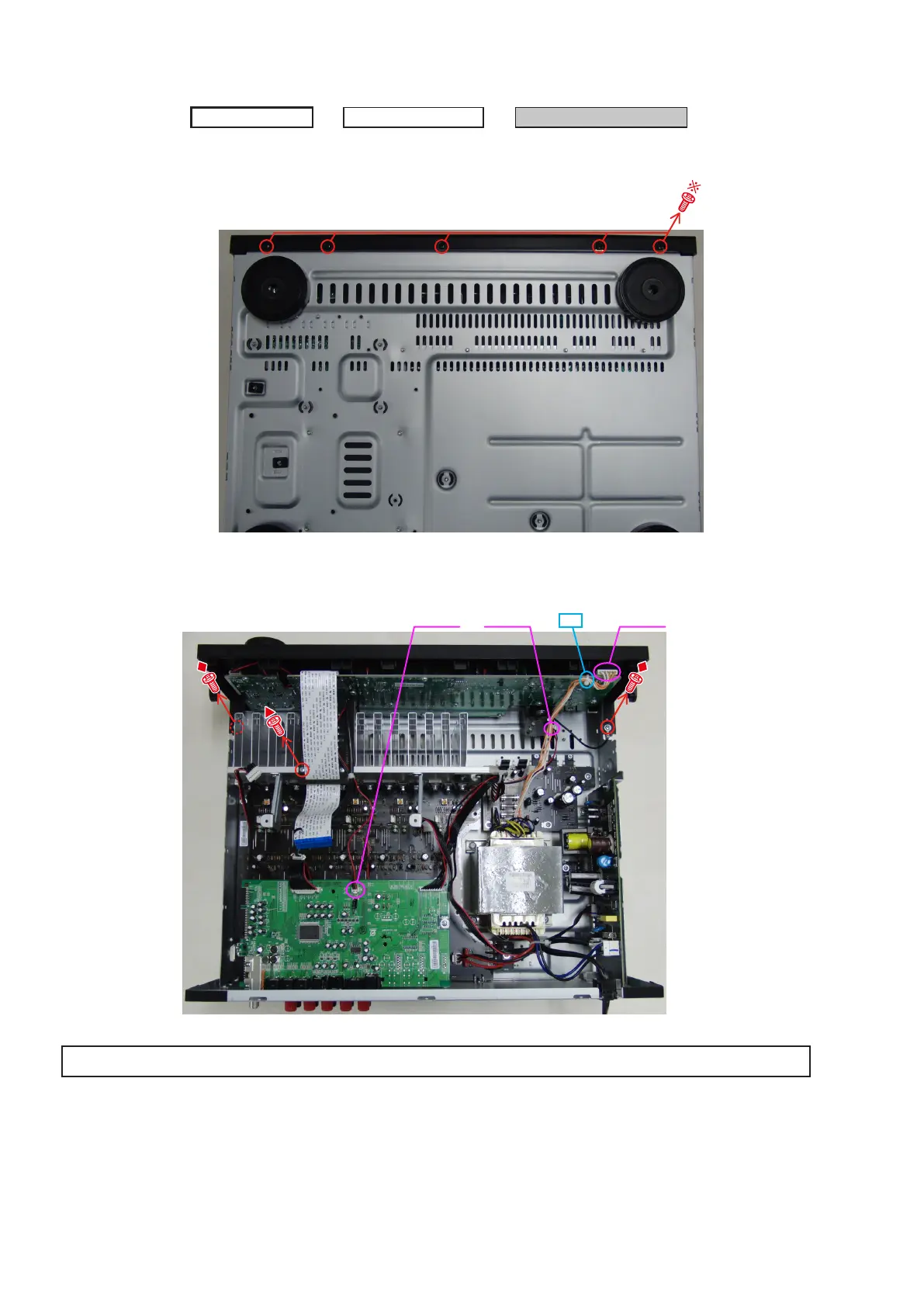

(1) Remove the screws.
(2) Cut the wire clamp band, then remove the screws.
Disconnect the connector wires.
Proceeding :
TOP CABINET
HDMI UNIT ASSY
→
FRONT PANEL ASSY
→
View from the bottom
CN604CN407 CN603
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.
