Denon AVR-1612 Service Manual

92

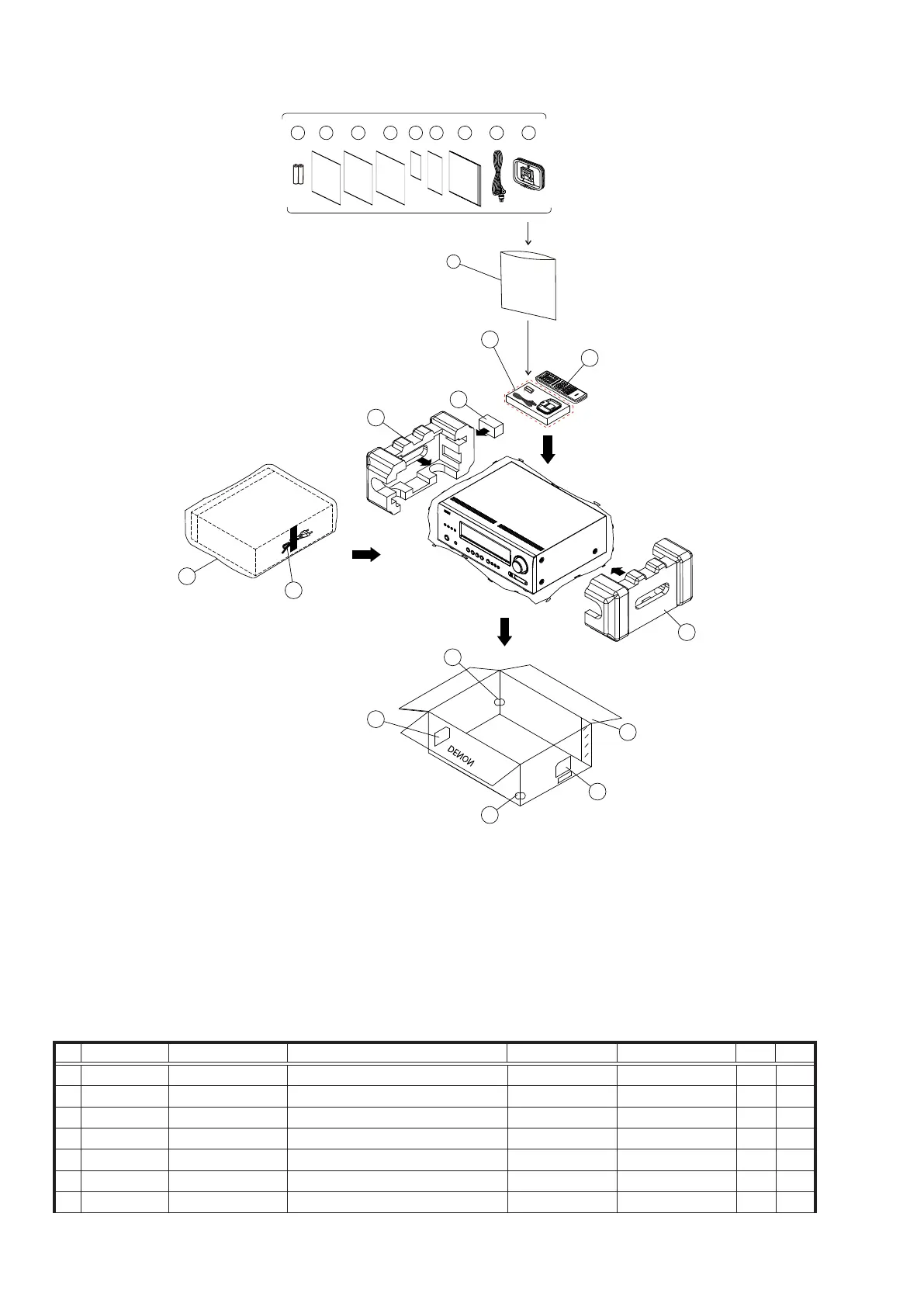

PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
z
Parts indicated by "nsp" on this table cannot be supplied.
z
Parts indicated by the "
★
" mark are not illustrated in the exploded view.
z
The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions.
Note:
The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. & Canada model E2 : Europe model
E1C : China model(AVR-1612) EA : Australia model 1622E1C : China model(AVR-1622)
BK : Black model SP : Premium Silver model
Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp POLY BAG CPP1A081X 1
z
2 90M-YC000780R POWER CORD E3 CJA523FBYA 1
z
2 90M-ZC000320R POWER CORD E2 CJA2B054Z 1
z
2 90M-ZC000430R POWER CORD EA HJA2S084Z 1
z
2 90M-YC000850R POWER CORD E1C,1622E1C CJA2N047ZA 1
3 943533012540D SNOW PAD(L) CPS1A909 1
4 943533100040D SNOW PAD(R) CPS1A910 1
7
8
9
9
8
2
z
1
3
10
6
5
5-1 5-2 5-5
5-3
5-6 5-7 5-8 5-9 5-10 5-11
4

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
