Denon AVR-1612 - Hdmi Unit Assy

9

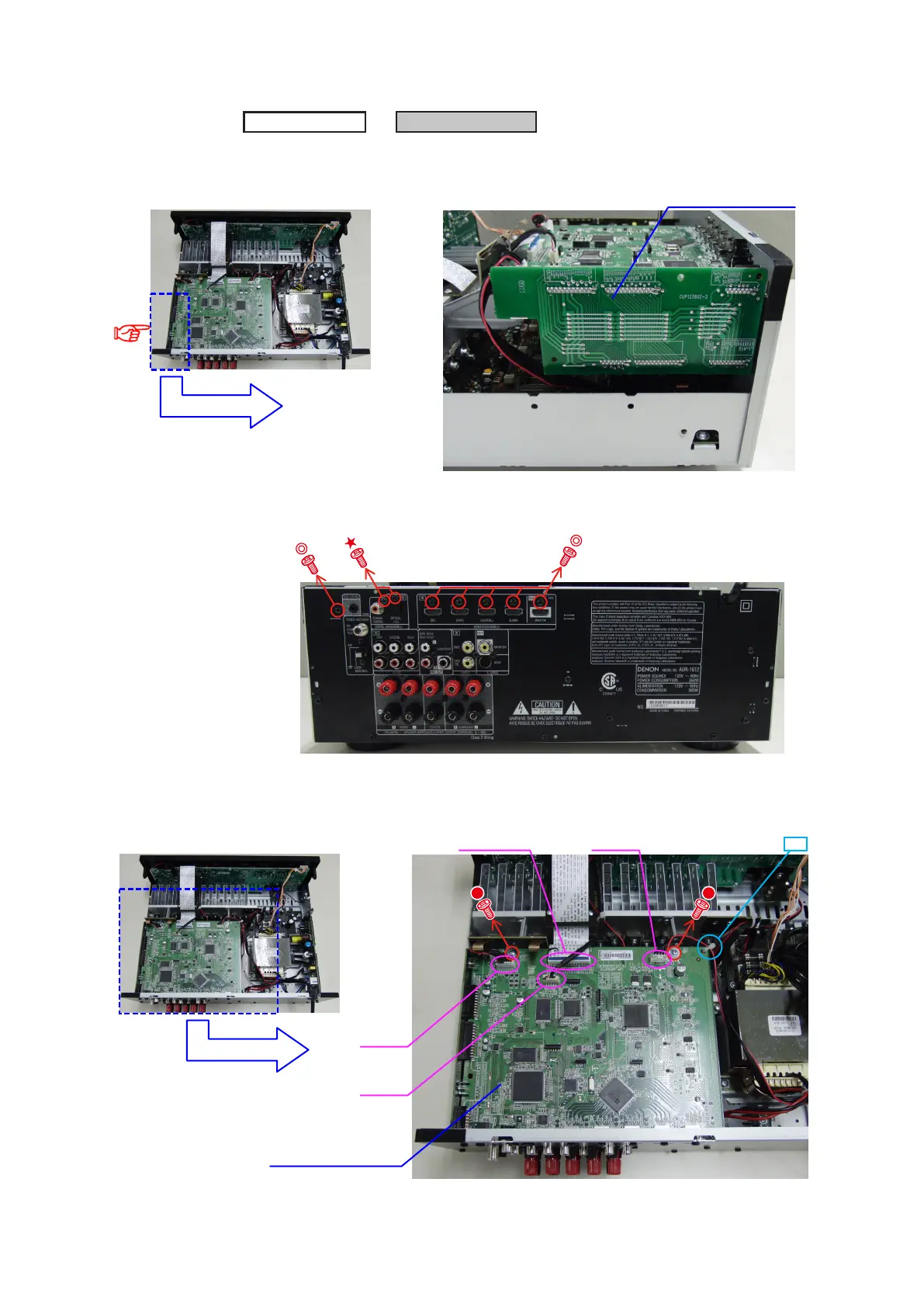

1. HDMI UNIT ASSY
(1) Disconnect the connector board.
(2) Remove the screws.
(3) Remove the screws and board.
Cut the wire clamp band, then disconnect the connector wire and the FFC cables.
TOP CABINET
HDMI UNIT ASSY
→
Proceeding :
CONNECTOR PCB
Shooting direction: C
Shooting of photograph: A
DIGITAL PCB ASS'Y
cut
FFC Cable CN151
CN252
CN341
