Denon AVR-1612 Service Manual

66

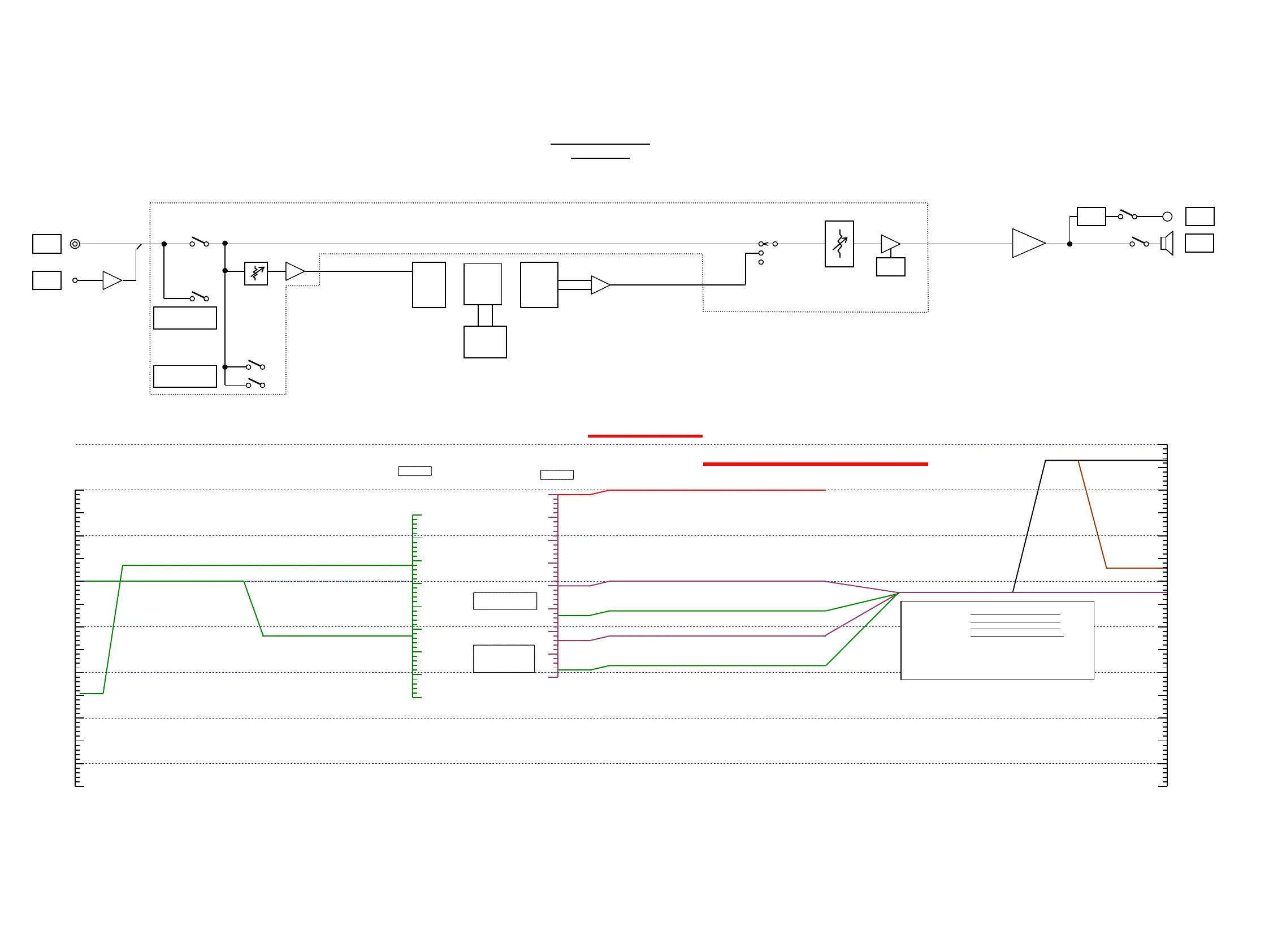

LEVEL DIAGRAM
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
+20dB
POWERAMP GAIN
+29dB
+10dB
-20dB
-30dB
-40dB
-10dB
LINE IN
-10dBFS
0dBFS
-20dBFS
-30dBFS
-40dBFS
AK4358VQ
AK5358B
LEVEL DIAGRAM
FRONT ch
-12dB
DIFF.OUT
0dBFS=5Vpp
=1.77Vrms
-10dBFS
-30dBFS
-40dBFS
200mV
+30dB
4.27Vrms/8Ω
SPK OUT
150mVrms
PRE OUT
H/POUT
277mVrms/33Ω
+1.07dB
SW:NO
-32dBFS(DIG.IN)
-38.5dBFS(A/D IN)
-20dBFS(DIG.IN)
-26.5dBFS(A/D IN)
＋
＋
LINE IN
H/POUT
＋
SPEAKER
OUT
ANALOG
ATT
R2A15218FP
GAIN
ADJ.
AK4358VQ
D/A
−
−
＋
AK5358B
A/D
-2.5dB
-26.5dBFS
200mVrms
GAIN setting of MASTER VOL 00dB
･SW:YES (DIGITAL) -2.5dB =-2.5dB
･SW:YES (ANALOG) -2.5dB +6.5dB =+4.0dB
･SW:NONE(DIGITAL) -2.5dB +12dB =+9.5dB
･SW:NONE(ANALOG) -2.5dB +12dB +6.5dB =+16.0dB
① ② ③
①:Basic OFFSET of VOL=0dB (indication value)
(PREAMPGAIN:+15.5dB of VOLMAX)
②:Revision OFFSET of SW NON
③:Revision OFFSET of AD input
28.31dB
MIC IN
11.48mVrms
ZONE2 SEL.
NOT USE
REC INH.
NOT USE
0dBFS
-20dBFS
+4dB
+9.5dB
+16dB
R2A15218 MAX.OUTPUT 3.8Vrms
AZ4580 MAX.OUTPUT 7.78Vrms
FULL SCALE LEVEL=2.0Vrms
SINGLE INPUT
0dBFS=3Vpp
=1.06Vrms
ACM2 (DM-A409)Sensitivity:
-38.8dBV/Pa = 11.48mV/Pa at 94dBSPL @Operation Voltage 5.0V (94dBSPL is expected to -11.0dBFS)
＋
MIC IN
LINE IN
R2A15218 ATT:0dB at AUTOSETUP
PLD
DSP

Denon AVR-1612 Specifications
