Denon AVR-1612 Service Manual

5
TECHNICAL SPECIFICATIONS
n
Audio Section
• Power amplier
Rated output :
Front :
75 W + 75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
75 W + 75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 98 dB (IHF–A weighted, DIRECT mode)
n
Video section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
n
Tuner section
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range :
(E3 model)
[FM]
87.5 MHz – 107.9 MHz [AM]520 kHz – 1710 kHz
(E2,EA,E1C model)
[FM]
87.5 MHz – 108.0 MHz [AM]522 kHz – 1611 kHz
Usable Sensitivity :
[FM]
1.2 μV (12.8 dBf) [AM]18 μV
50 dB Quieting Sensitivity :
[FM]MONO 2.8 μV (20.2 dBf)
S/N (IHF-A) :
[FM]MONO 70 dB
STEREO 67 dB
Total harmonic Distortion (at 1 kHz) :
[FM]MONO 0.7 %
STEREO 1.0 %
n
General
Power supply : AC 120 V, 60 Hz(E3 model)
AC 230 V, 50/60 Hz(E2 model)
AC 220 V, 50 Hz(E1C model)
Power consumption :
360 W
0.1 W (Standby)
3 W (CEC standby)
Maximum external dimensions :
435 (W) x 162 (H) x 382 (D) mm
Weight : 9.3 kg
n
Remote Control Unit (RC-1157)
Batteries : R6/AA Type (two batteries)
Maximum external dimensions : 53 (W) x 224 (H) x 28 (D) mm
Weight : 160 g (including batteries)

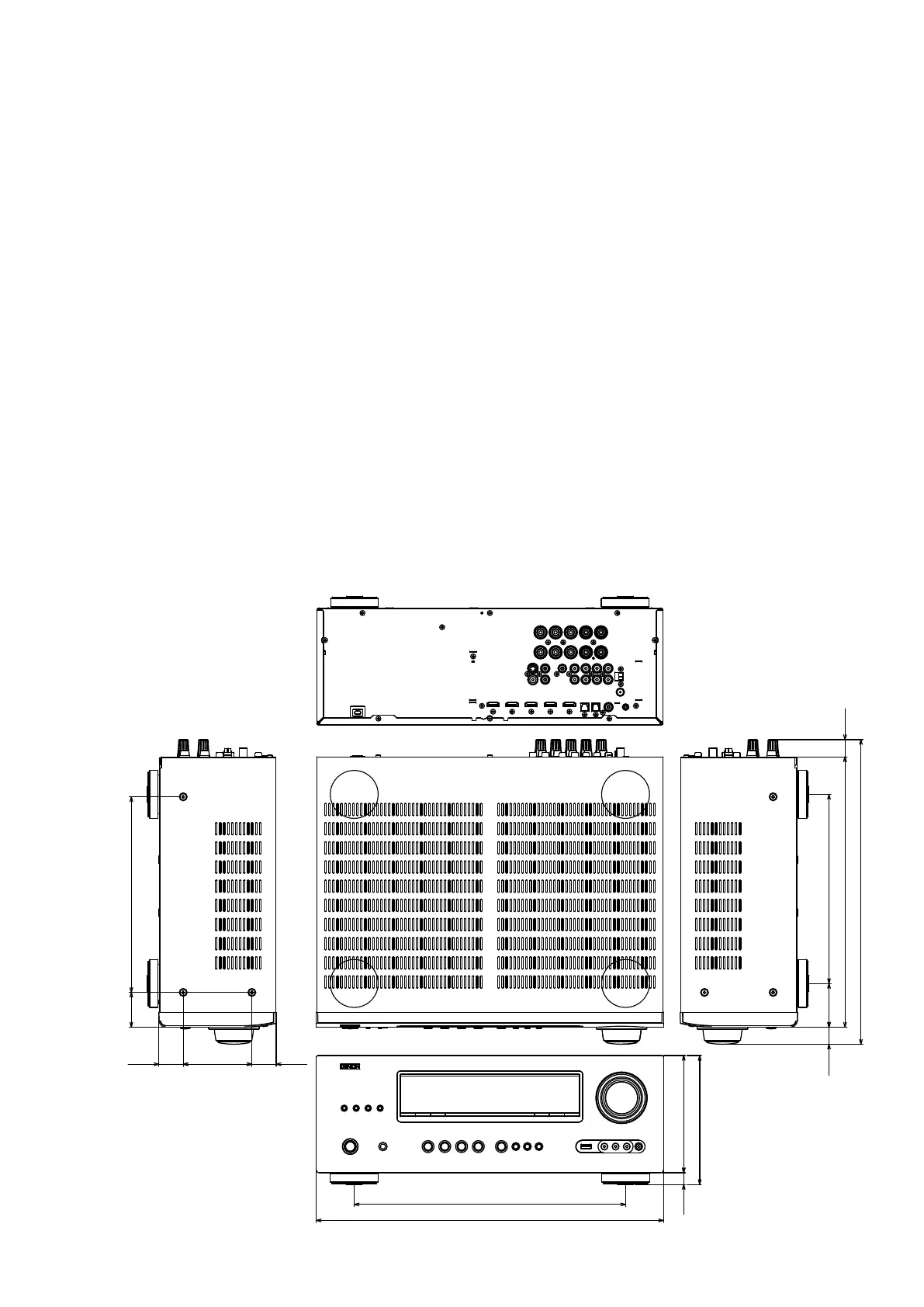

DIMENSION
147.0
15.0
162.0
21.5 54.7
236.8
338.5
22.0
382.0
340.0
435.0
43.5 245.0
30.5
86.0
30.5

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
