4. RADIATOR ASSY

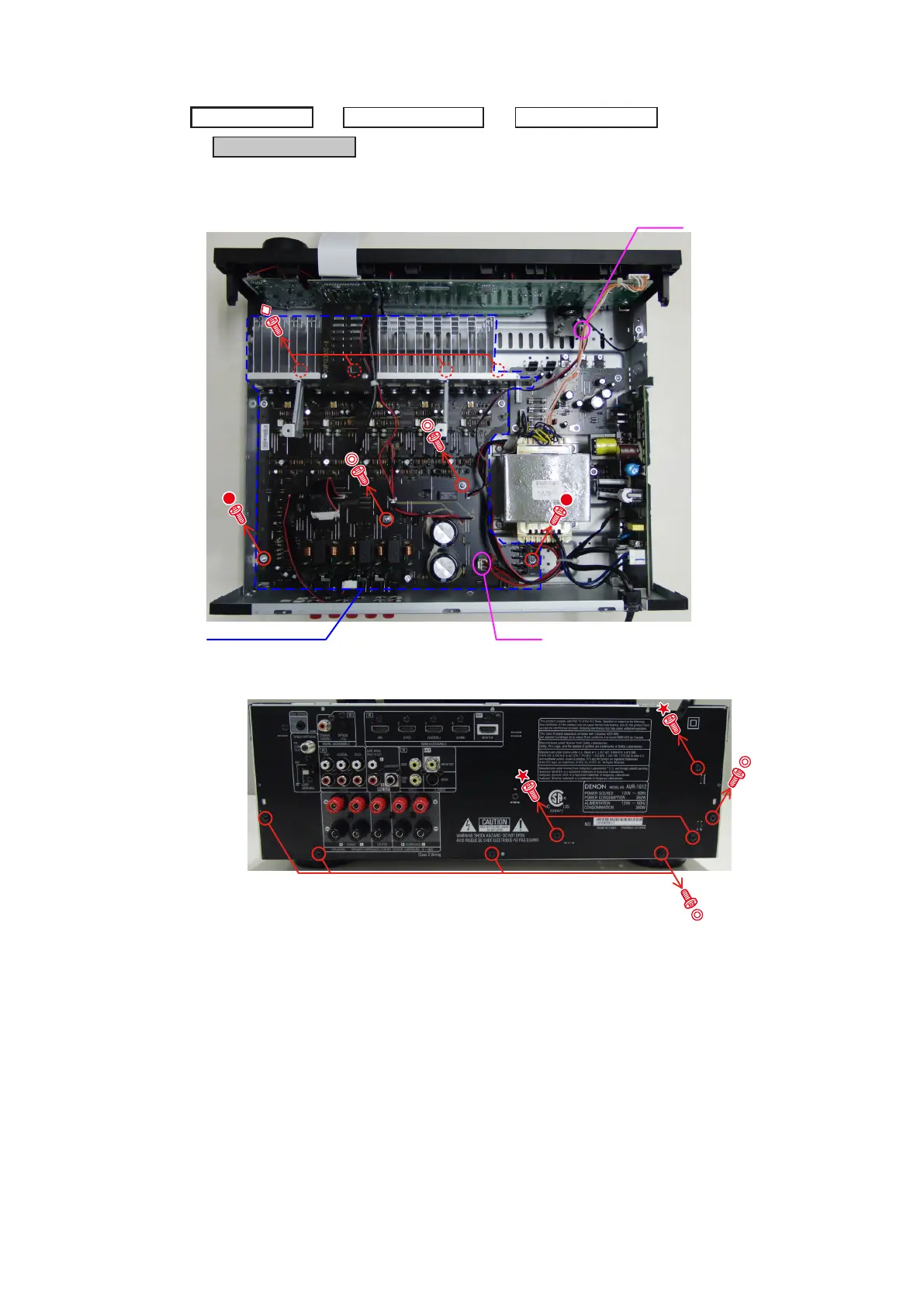

(1) Remove the screws, then disconnect the connector wires.
(2) Remove the screws, then remove the REAR PANEL.
Proceeding :
TOP
CABINET
HDMI UNIT ASSY
→
INPUT PCB ASSY
→
RADIATOR ASSY
→
RADIATOR ASS'Y
CN603
CN703
Shooting of photograph: A
