Denon AVR-1612 Service Manual

14

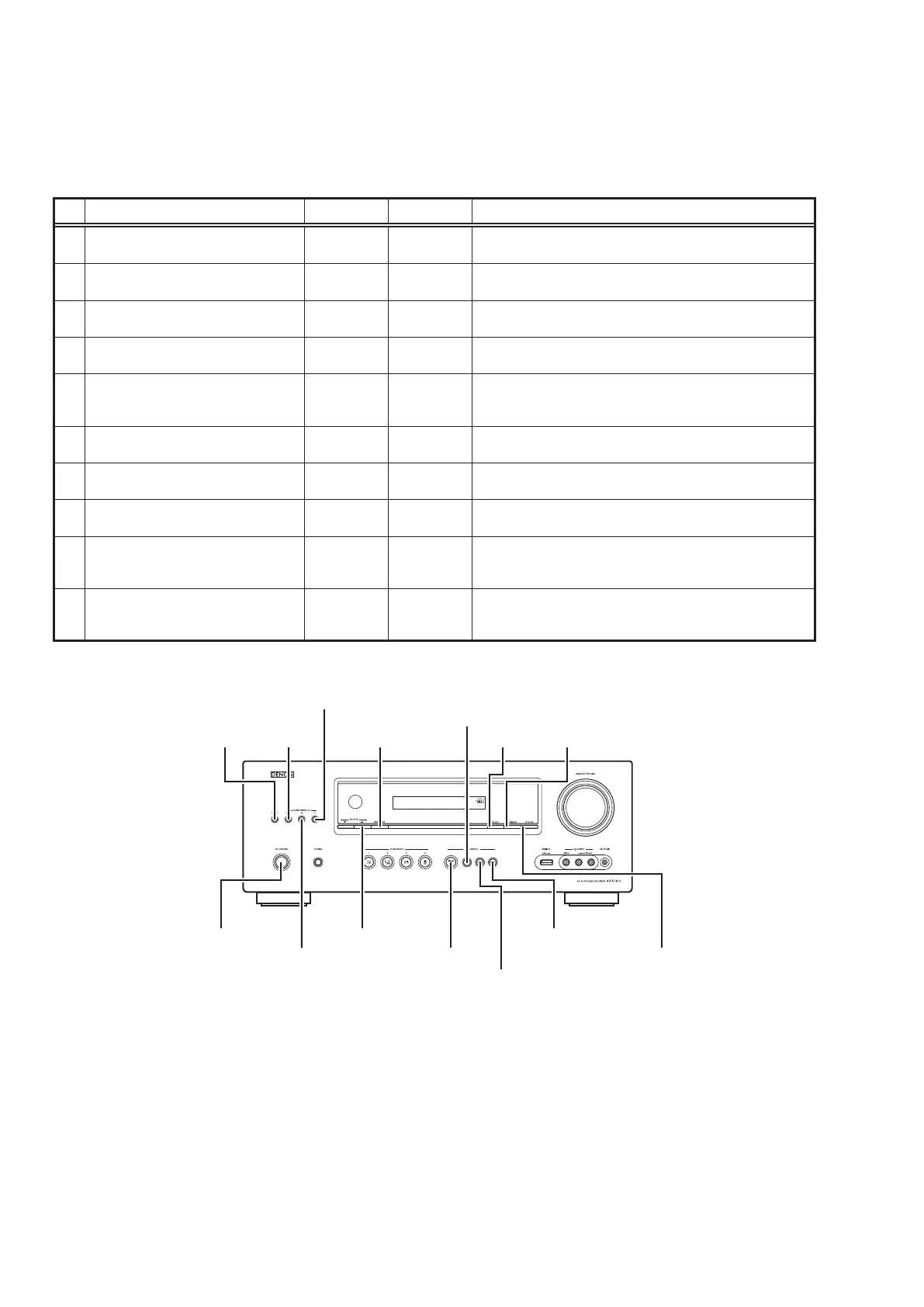

SPECIAL MODE
Special mode setting button
b
No.1 - 9 : Press the ON/STANDBY button to turn on the power while pressing both the button A and the button B at the same
time.
b
No.10 : Turn on the power, then press and hold down A and B buttons for over 3 second.
No. Mode Button A Button B Contents
1
Version display
(μcom/DSP Error Display)
DIMMER STATUS
Firmware versions such as Main or DSP are displayed in the FL
manager. Errors are displayed when they occur. (Refer to 15 page)
2 Displaying the protection history mode SLEEP STATUS
The protection history is displayed.
(Refer to 17 page)
3
User Initialization mode
(Installer Setup settings are not initialized.)
iPod system
8
iPod system
9
Backup data initialization is carried out.
(Installer Setup settings are not initialized.)
4
Mode for switching tuner frequency step
(E2 model Only)
TUNER
PRESET CH +
SOURCE
d
Change tuner frequency step to FM:200kHz/AM:10kHzSTEP
5
Mode for preventing remote control
acceptance
iPod system
2
iPod
1
Operations using the remote control are rejected.
(Mode cancellation: Turn off the power and execute the same
button operations as when performing setup.)
6 Panel lock mode TUNER RESTORER
Operations using the main unit panel buttons or the master volume
knob are rejected.
7
Panel lock mode
(Master volume is not locked.)
SHIFT RESTORER Operations using the main unit panel buttons are rejected.
8 Cancellation of panel lock mode
TUNER
PRESET CH -
RESTORER Panel lock mode is cancelled.
9 Diagnostic mode iPod system
2
STATUS
This mode is used for conrming the Video and Audio (signal)
paths. (Troubleshooting)
The signal paths of the set can be easily conrmed after repair.
10 Remote ID Setup mode iPod system
2
STATUS
When using multiple DENON AV receivers in the same room, make
this setting so that only the desired AV receiver operates.(Refer to 19
page)
STATUS
DIMMERSLEEP
TUNER PRESET CH -
TUNER PRESET CH +
TUNER SHIFT
iPod 1
ON/STANDBY
RESTORER
iPod system 2
SOURCE d
iPod system 8
iPod system 9

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
