Denon AVR-1612 Service Manual

REGULATOR PART
FROM TRANS
TO INPUT B'D
1.AC_S2
2.RET_GND
3.AC_S2
4.NC
5.AC_S3
6.V_GND
7.AC_S3
3.+12V
4.RET_GND
5.-12V
6.RLY_GND
7.+5VV
8.VGND
9.-5VV
1.DA+5V
2.RET_GND(DA)
2.0mm 9PIN WIRE
PAGE 9 (8E)
F9301
T 1.25A L 250V
C9303
OPEN
F9302
T 1.25A L 250V
C9304
OPEN
C9305
0.1uF/100V
D9302
1N4007
D9303
1N4007
D9304
1N4007
D9305
1N4007
F9303
T 0.315A L 250V
F9304
T 0.315A L 250V
D9306
1N4007
D9307
1N4007
D9308
1N4007
D9309
1N4007
C9307
OPEN
C9306
OPEN
C9308
0.1uF/50V
C9316
470/16V
C9318
0.1uF(OPEN)
C9310
2200uF/25V
C9319
0.1uF(OPEN)
C9317
100/16V
D9312
1SS133MT
C9314
0.1uF(OPEN)
C9315
0.1
uF(OPEN)
D93
13
1SS133MT
9 8 7 6 5 4 3 2 1
CN931
ET31
GND
OUTIN
3
2
1
IC933
CVIKIA7805BPI
C9322
0.1uF(OPEN)
C9326
0.1uF(OPEN)
3
1
2
OUTIN
GND
IC934
CVIKIA7905PI
C9321
470/16V
C9323
0.1uF(OPEN)
C9320
1000/16V
C9324
100/16V
C9325
100/16V
C9327
0.1uF(OPEN)
D9316
1SS133MT
D9317
1SS133MT
GND
OUTIN
3
2
1
IC935
CVIKIA7805BPI
C9302
0.1uF(OPEN)
C9312
0.1uF(OPEN)
C9301
100/16V
C9311
100/16V
D9318
1SS133MT(OPEN)
COMMON
OUT
IN
3
2
1
IC931
HVINJM7812FA
D9310
OPEN
D9311
OPEN
D9314
OPEN
D9315
OPEN
D9319
OPEN
D9320
OPEN
D9321
OPEN
7 6 5 4 3 2 1
CN932
COM
OUT
IN
3
2
1
IC932
HVINJM7912FA
J301
OPEN
C9309
4700uF/25V
C9328
1U/50V
STBY POWERGND POWER + POWER -
87654321
A
B
C
D
E
F

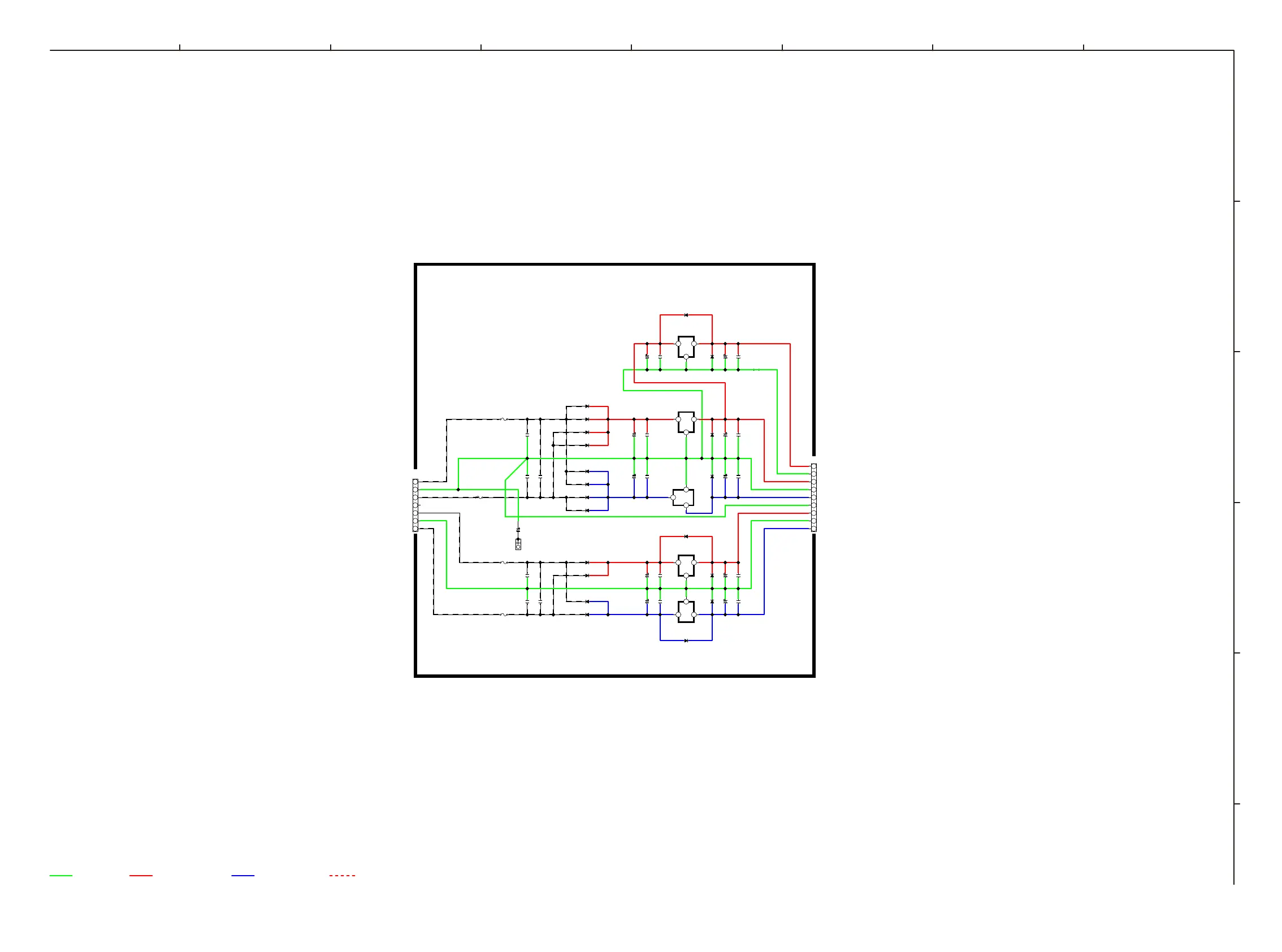

SCHEMATIC DIAGRAMS (13/16)
REGULATOR UNIT
83
SCHEMATIC DIAGRAMS (13/16)
REGULATOR UNIT

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
