SMPS B’D
DIGITAL B’D
FRONT B’D
INPUT B’D
REGULATOR B’D
MAIN B’D

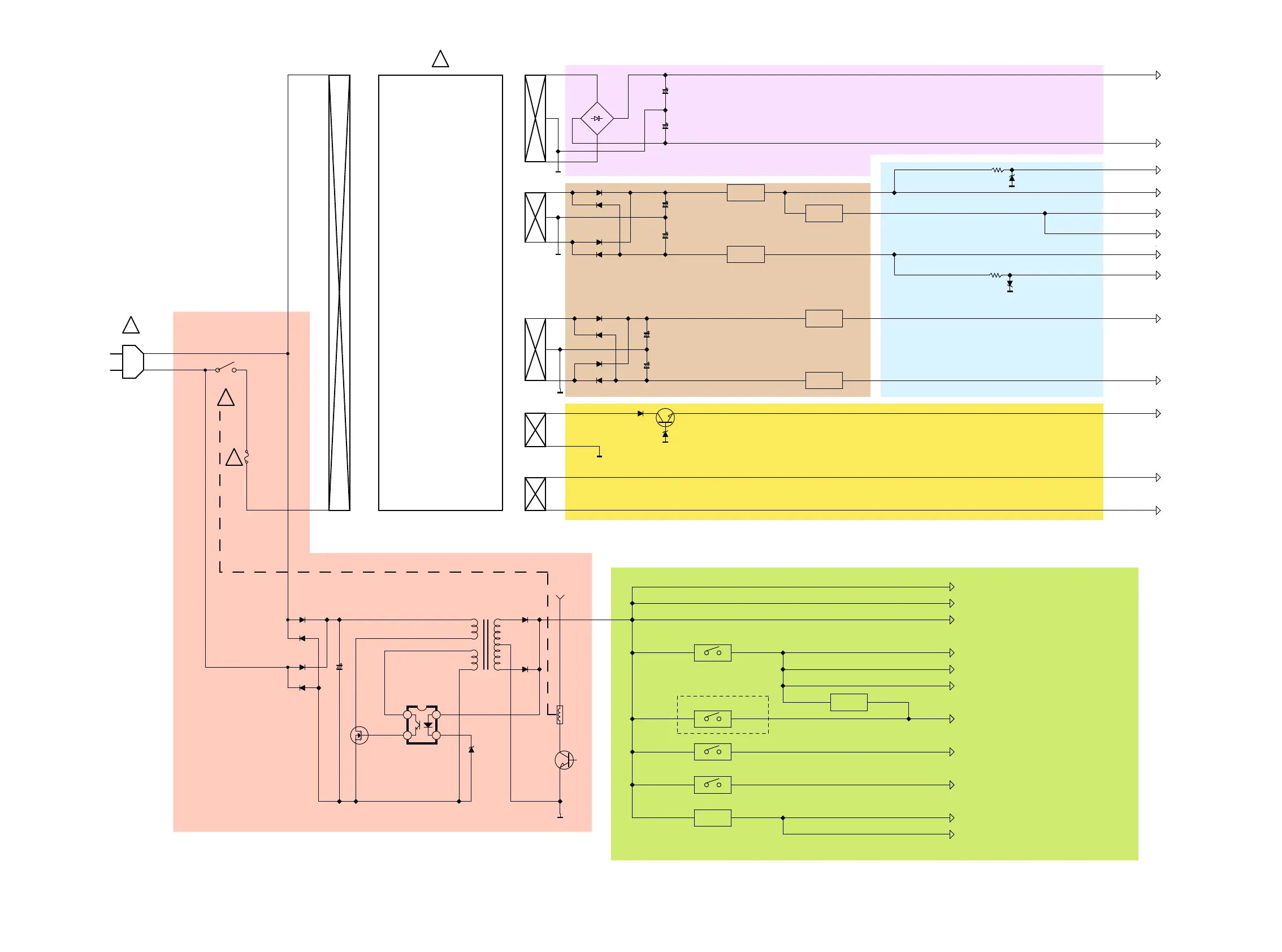

VCC BLOCK DIAGRAM
MAIN+B
MAIN-B
AC CORD
RELAY
!
!
!
MAIN TRANS
!
S5(FILAMENT)
S4(FL+Vdisp)
S2(+12V,-12V)
S1(AMP+B,-B)
NJM7812FA
NJM7912FA
FILAMENT AC
A+12V
DA+5V
A-12V
Vdisp(+37V)
KIA7805BPI
+5.2V
MAIN PWR ON
TUNER+5V
S3(VIDEO)
FILAMENT AC
KIA7905PI
V-5V
KIA7805BPI
V+5V
MTZ7.5B
MTZ7.5B
VOLUME IC
(R2A15218FP)
VOLUME IC
(R2A15218FP)
MCU_3V3/MICOM
SWM3.3V/LEVEL_CHG
DA3.3V/DIR,DSP
EX3AV(+1.1V)
EX3AV(+3.3V)
OPEN
PQ033DNA1ZPH
SWM5V/LEVEL_CHG
+3V3H/HDMI
DA1.1V/DSP
NET1.8V/USB
+1V8H/HDMI
NET3.3V/USB
D5V
/VBUS
+5
VH/HDMI
(ADV7623)
982mA
(ADV7623,MX25L3206E)
314mA 25mA
(TCC8600)
3mA
(TCC8600,IS42S16400F,MX29LV160D)
4mA 180mA
(R5F56108VNFP,M24C32)
(SN74LVC244APWR,TC74VHCT08)
1.5mA
(AK4358VQ,AK5358,AK4424)
60mA
85mA 27mA
(AZ4580,SPK RELAY)
120mA
(ADSP21487)
1304.62mA
(ADSP21487,W9864G6JH,EPM3032,LC89058,TC74VHCU04,MX29LV160)
0.2mA 400mA 225mA 60mA 0.002mA
(TC74VHC08)
1.5mA
(NJM2586,NJM2595)
35mA 22mA
60mA
210mA
112mA
57mA
50mA
68mA
163mA
1.5mA
715.202mA
339mA
214mA
3mA
982mA
1304.62mA
1.5mA
55mA
90mA
30mA
30mA
40mA
EX3AV(+1.8V)
50mA 5mA
PQ018ENA1ZPH
EX3AV(+1.8V)
1000mA
1
3
4
2
S
G
D
12
3 4
33
