Denon AVR-1612 Service Manual

36

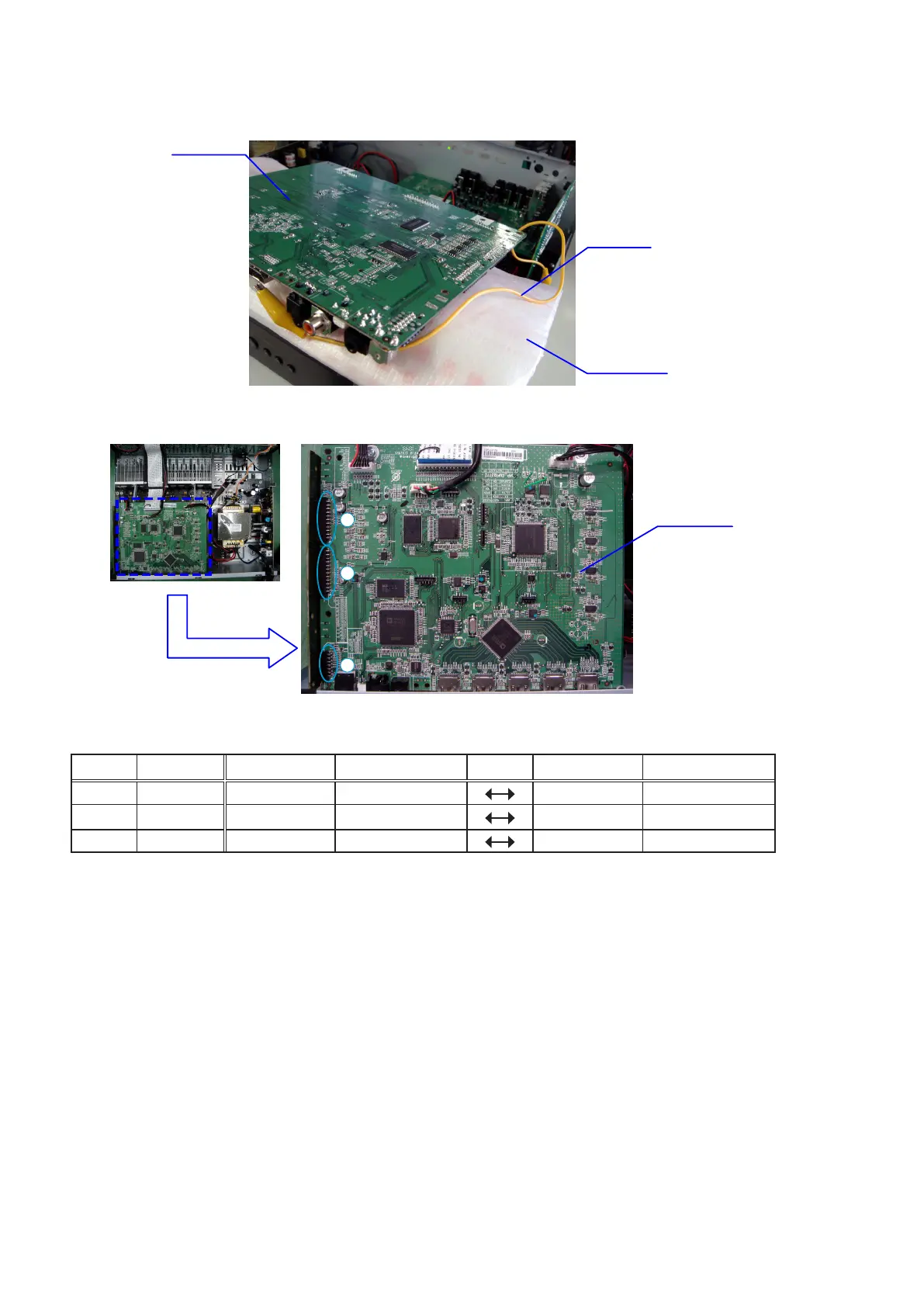

(3) Detach PCB DIGITAL is detached from the chassis, and turn it over.
Please put an insulation sheet that is larger than PCB DIGITAL under PCB.
b
Connect the ground point of PCB to the chassis with a ground lead or the like.
(4) Connect the six extension jig cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
21 pin CN254 CONNECTOR
CN254 DIGITAL
w
23 pin CN256 CONNECTOR
CN403 DIGITAL
e
13 pin CN258 CONNECTOR
CN253 DIGITAL
PCB DIGITAL
Insulation sheet
Ground lead
PCB DIGITAL
1
3
2

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
