1.3. Turn on the AV receiver
Operate the following. Turn on the AV receiver.
(1) Connect the power cable to the AC outlet while simultaneously pushing the "NET/USB" button and the "INTERNET
RADIO" button of the front panel.
(2) Conrm the power indicator is green and "WRITTING" is displayed in the front panel.
1.4. Run the DFW

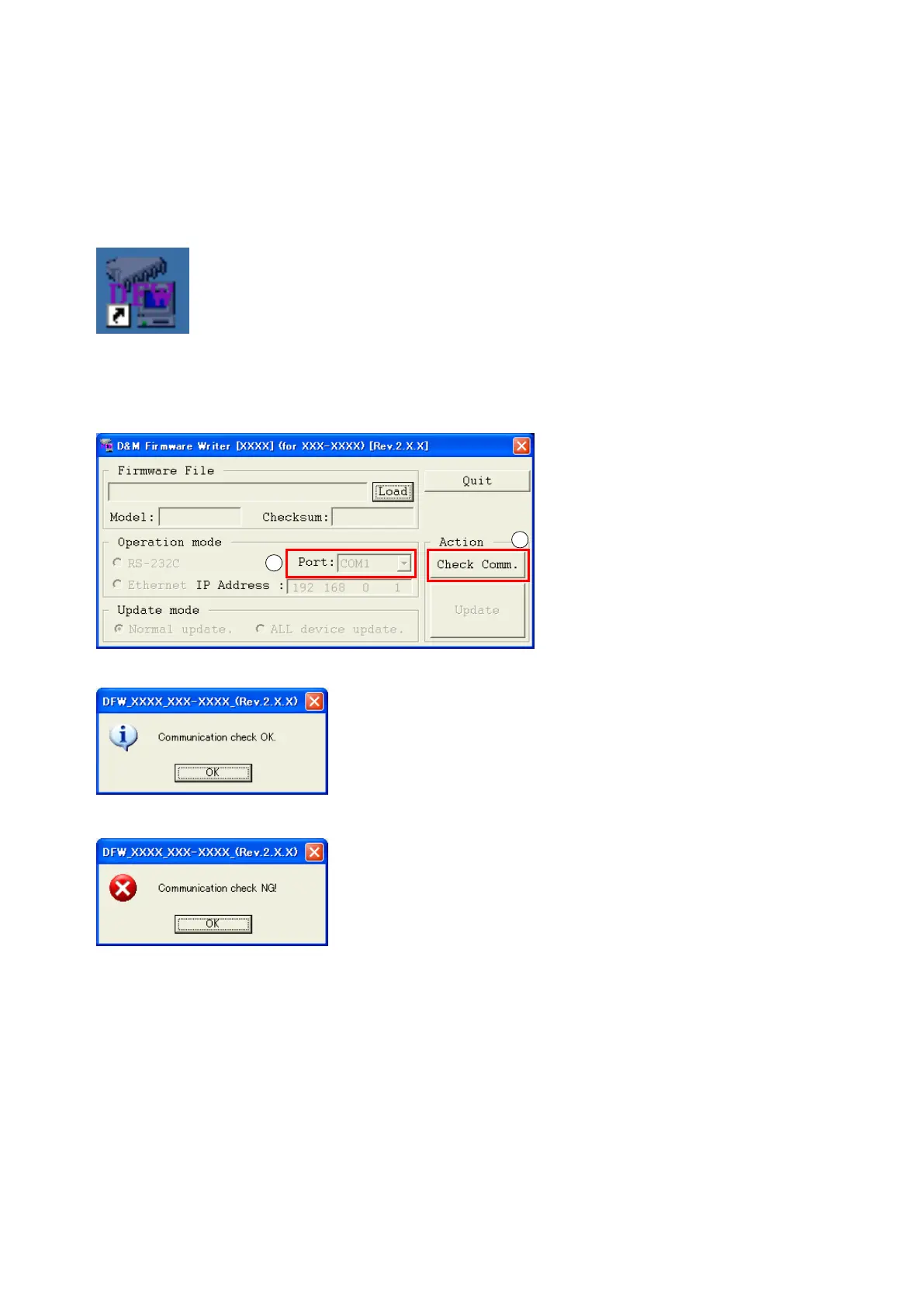

Run the "DFW_0048_AVR1612(Rev.1.1.1).exe" on desktop of PC.
1.5. Communication check
(1) Select the serial port number of RS-232C in PC.
(2) Click the "Check Comm." button.
(3) When connection is good, then you can see the "Communication check OK." message.
(4) If connection is not good, then you can see the "Communication check NG" message.
Please conrm the following
(a) Check the connection of the AV receiver and PC. (refer to "1.2. Connection of the AV receiver" )
(b) Check the operation mode of the AV receiver. (refer to "1.3.Turn on the AV receiver")
(c) Check the selection of the RS-232C port number of PC.
1
2

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
