Connecting a digital video recorder
• You can record video onto a Blu-ray Disc or DVD.
• Select the connector to use and connect the device.
• When recording analog audio, use the analog connection.
• See “REC OUT mode” (vpage67) for operating instructions.
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage16).

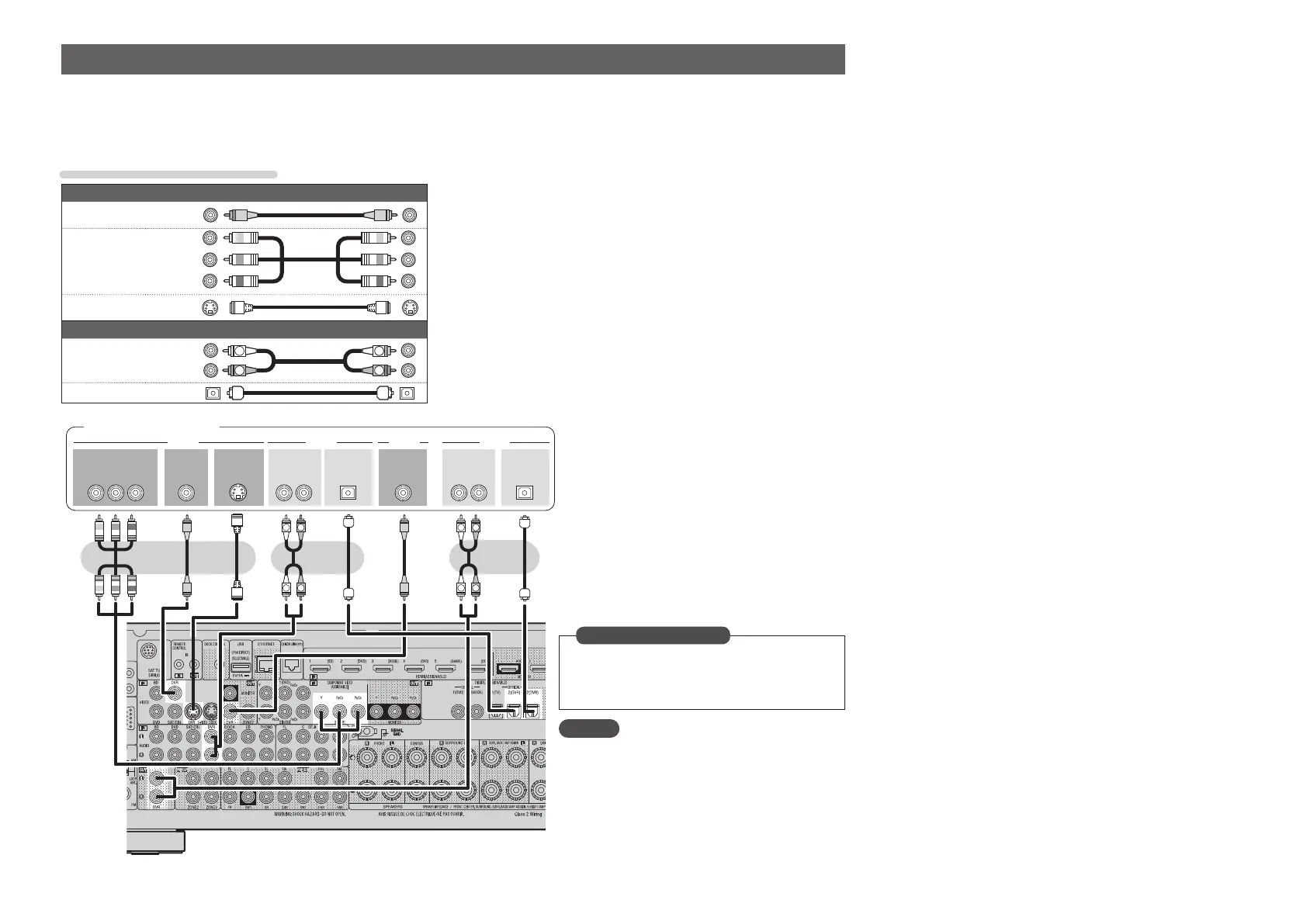

Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Component
video cable
(Green)
(Blue)
(Red)
S-Video cable
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
Optical cable
R
L
R
L
R
L
R
L
RL RL
OUT
IN
AUDIO VIDEOVIDEO
OUT
IN
OPTICALOPTICAL
IN
AUDIOAUDIO
OUT
VIDEO
OUT
S-VIDEO VIDEO
COMPONENT VIDEO
Y P
B PR
OUT
AUDIO
Digital video recorder
NOTE
To record video signals through this unit, use the
video cable for connection between this unit and the
player.
Set this to change the digital input connector or
component video input connector to which the
input source is assigned.
“Input Assign” (vpage82)
