63
Basic versionSimple version InformationAdvanced version

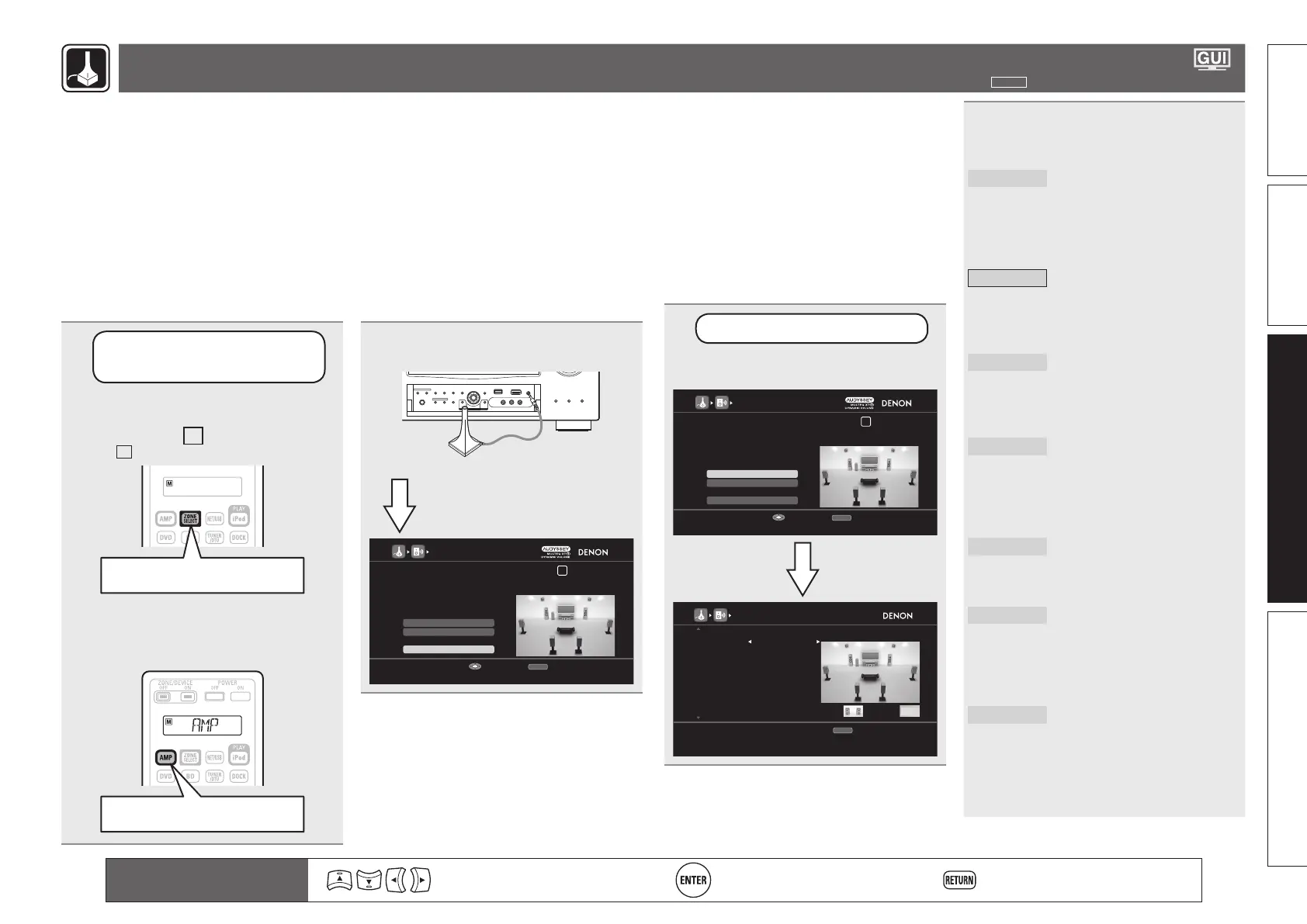

Set up speakers
around items indicate the settings.
1
Set up the
remote control unit
n Set up the zone mode
Press ZONE SELECT to switch the
zone mode to
M
(MAIN ZONE).
The
M
indicator lights.
Press ZONE SELECT
n Set up the operation mode
Press AMP to set the remote control
unit to AMP-operation mode.
Press AMP
2
Connect the setup microphone.
AUDYSSEY AUTO SETUP
1 2 3 4 5 6
Amp Assign
RETURN
Auto Setup Start
Channel Select
STEP1 Preparation
Connect the speakers and place them according
to the recommendations in the manual,
Set the following items
If necessary.
Start Auto Setup
Enter Cancel
When the setup microphone is
connected, the following screen is
displayed.
This section provides the setup methods of speaker systems other than the 7.1-channel system (with surround back speakers).
For the setup methods of the 7.1-channel system with surround back speakers, see “Simple version”, “Set up speakers” (vpage7) of “Simple
version”.
First install and connect the speakers to this unit. Set the speaker impedance when using a speaker with impedance of 4 Ω or 6 Ω (vpage 98 “Speaker
Impedance”).
Before Auto Setup measurement, the settings shown below can be made.
• Changing the amplifi er assignment (Amp Assign)
The signal output from the SURR.BACK/AMP ASSIGN, F.HEIGHT/AMP ASSIGN or F.WIDE/AMP ASSIGN speaker terminal of this unit can be switched to match
your speaker environment (vpage63 “Set up “Amp Assign””).
• Setting the channels to be used (Channel Select)
If channels that are not to be used are set in advance, measurement for the set channels is skipped, and measuring time can be reduced. You can also change
the number of subwoofers or surround back speakers (vpage64 “Set up “Channel Select””).
3
Set up “Amp Assign”
Use ui to select “Amp Assign”,
and then press ENTER.
[1/2]
RETURN
Assign power amp to ZONE2 stereo signal
Return
Assign Sp. F.WIDE
Assign Mode ZONE2
ZONE2: ZONE3:
AMP ASSIGN
AUDYSSEY AUTO SETUP
1 2 3 4 5 6
Amp Assign
RETURN
Auto Setup Start
Channel Select
STEP1 Preparation
Connect the speakers and place them according
to the recommendations in the manual,
Set the following items
If necessary.
Change assigned power amp to match the speaker system
Enter Cancel
4
Use o p to select the con guration
of the connected speakers (“Assign
Mode”).
NORMAL
Select the NORMAL setting
to perform 7.2-channel or
9.2-channel playback using the
surround back, front height, or
front wide speakers. In this case,
go to step 8.
ZONE2
Select the ZONE2 setting to
assign the unit’s built-in power
amplifi er for ZONE2 and output
the audio in stereo. In this case,
go to step 5.
ZONE2/3
Select the ZONE2/3 setting to
assign the unit’s built-in power
amplifi er for ZONE2 and ZONE3
and output the audio in stereo. In
this case, go to step 8.
Z2/3-
MONO
Select the ZONE2/3-MONO
setting to assign the unit’s built-
in power amplifi er for ZONE2
and ZONE3 and output the audio
in monaural. In this case, go to
step 5.
Bi-AMP
Select the Bi-AMP setting to
connect the front speakers via
the bi-amp connection. In this
case, go to step 5.
2CH
When you perform 2-channel
playback in the DIRECT or
STEREO mode, select the 2CH
setting to use the other front
speakers for playback. In this
case, go to step 5.
2CH Bi-AMP
When you perform 2-channel
playback in the DIRECT or
STEREO mode, select the
2CH Bi-AMP setting to use the
other front speakers for Bi-Amp
playback. In this case, go to step
8.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right)
Confi rm the setting Return to previous menu
1.AVR4311CIEU_ENG_108.indd 63 2010/08/30 20:10:53
