54
This unit is equipped with a 9-channel built-in power
amplifi er and 11.2-channel PRE OUT connector that
enable it to handle various speaker systems.
This section provides the installation, connection,
and setup methods of speaker systems other
than the 7.1-channel system (with surround back
speakers).
For the speaker installation, connection, and setup
methods of the 7.1-channel system with surround
back speakers, see “Simple version (Simple setup
guide)” (vpage4).
Use Audyssey
®
Auto Setup function of this unit
to automatically detect the number of connected
speakers and perform optimal settings for the
speakers to be used.
Procedure for speaker settings
Install
Connect (vpage56)
Set up speakers (vpage63)
Install
This unit is compatible with Audyssey DSX™ (vpage132) and
Dolby Pro Logic gz (vpage133), which offers an even wider and
deeper surround sensation.
When using Audyssey DSX, install front wide speakers or front
height speakers.
When using Dolby Pro Logic gz, install front height speakers.

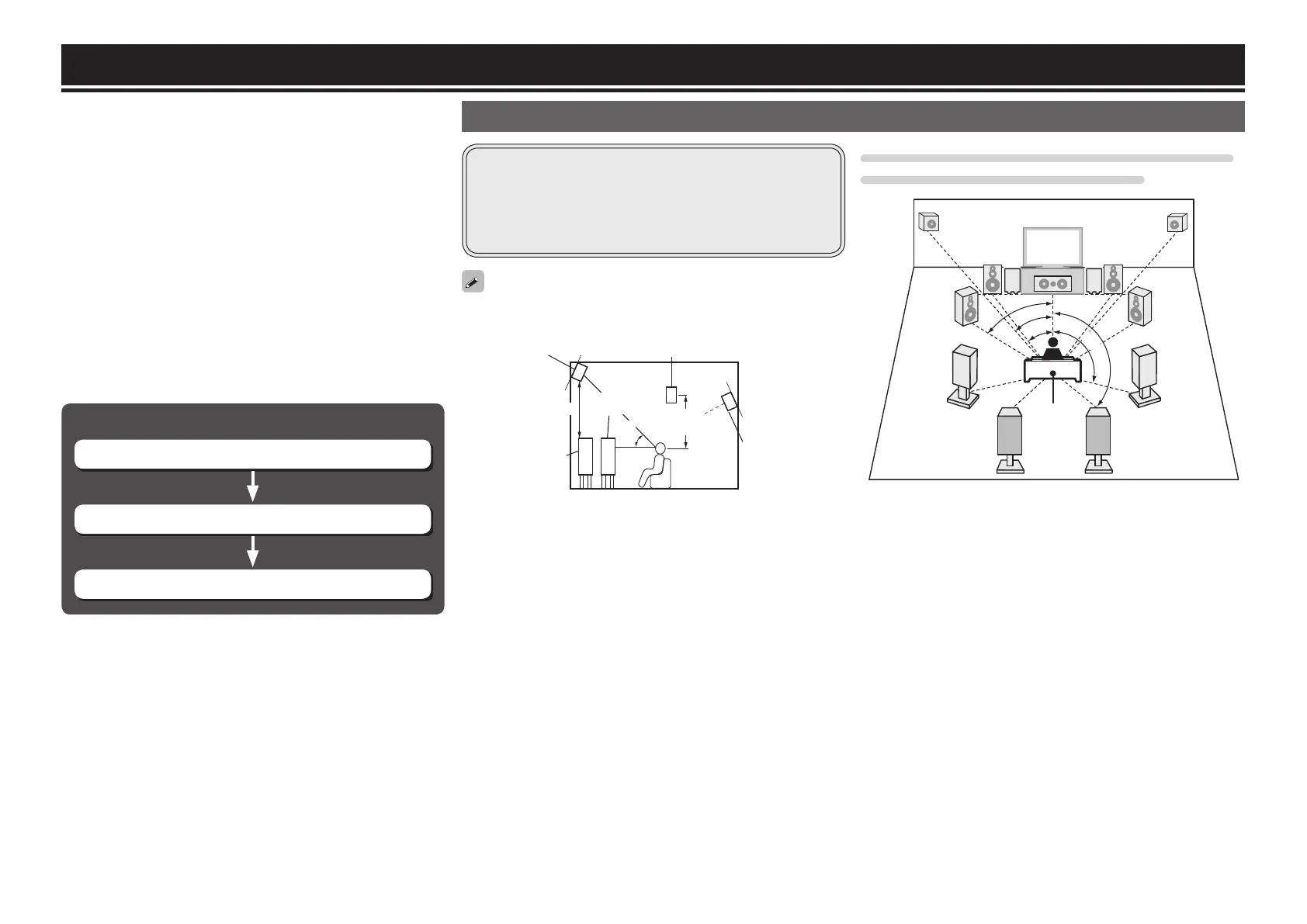

Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm)
higher than ear level.
z1
z2
45˚
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front height
speaker
• Point slightly
downwards
At least
3.3 ft / 1 m
Surround back
speaker
• Point slightly
downwards
Front
speaker
Front wide
speaker
z1 Recommended for Dolby Pro Logic gz
z2 Recommended for Audussey DSX
When 7.2ch / 9.2ch / 11.2ch (Surround back / Front
height / Front wide speaker) installed
FHRFHL
FL
FR
SL
SR
FWL
FWR
SW
1
SW
2
C
SBL SBR
z1
z2
z3
z5
z4
Listening
position
z1 22˚ – 30˚ z2 22˚ – 45˚ z3 55˚ – 60˚
z4 90˚ – 110˚ z5 135˚ – 150˚
Speaker installation/connection (Advanced connection)
