Denon AVR-X1000 - Page 15

15
Appendix
TipsSettingsPlaybackConnections
Contents

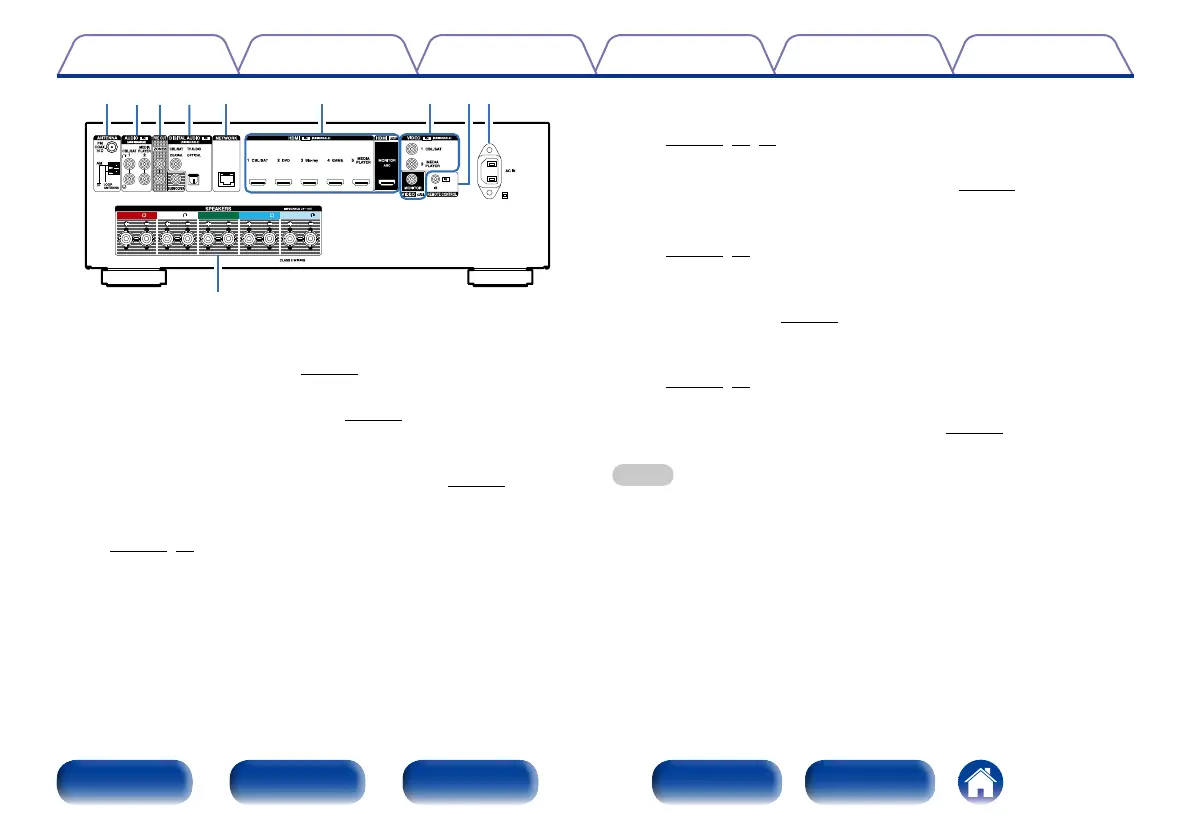

Front panel Display Rear panel IndexRemote
q Speaker terminals (SPEAKERS)
Used to connect speakers (vpage21).
w AC inlet (AC IN)
Used to connect the power cord (vpage39).
e REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a dierent room (vpage38).
r Video connectors (VIDEO)
Used to connect devices equipped with video connectors
(vpage30, 31).
t HDMI connectors
Used to connect devices equipped with HDMI connectors
(vpage26, 27, 32).
y Network connector (NETWORK)
Used to connect this unit to the network (vpage37).
u Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors
(vpage30, 31).
i PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier or an external
power amplifier (vpage22).
o Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors
(vpage30, 31).
Q0 FM/AM antenna terminals (ANTENNA)
Used to connect FM and AM antennas (vpage50).
NOTE
•Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
FRONT FRONT CENTER SURROUNDSURROUND
q
t wQ0 yo r eui
