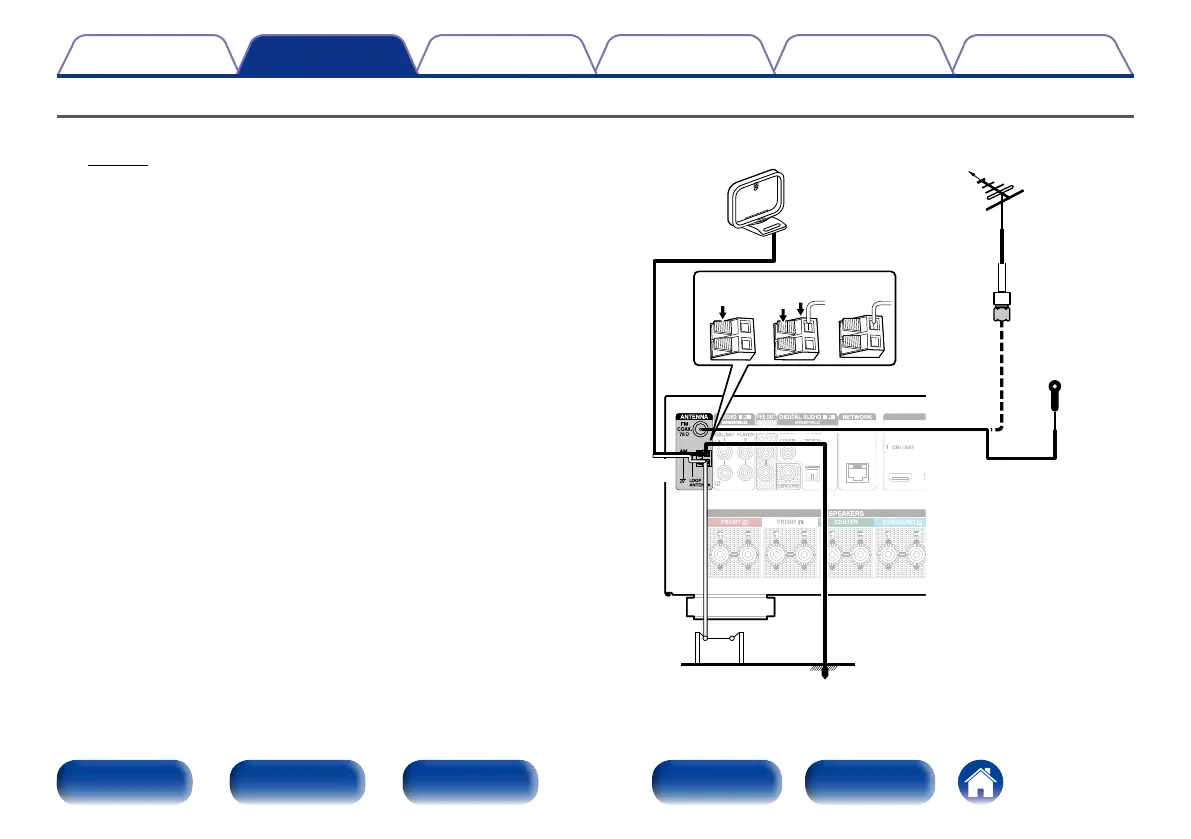

Connecting an FM/AM antenna
After connecting the antenna and receiving a broadcast signal
(vpage 51 “Listening to FM/AM broadcasts”), fix the antenna with
tape in a position where the noise level becomes minimal.
FRONT FRONT CENTER SURROUND
w eq
FM outdoor
antenna
Direction of broadcasting station
75 Ω/ohms
coaxial cable
FM indoor antenna
(supplied)
AM outdoor
antenna
Ground
AM loop antenna
(supplied)
Black
White
